|Viewing Angle:||H178º/ V178º||Contrast:||1100:1|
|Backlit Type:||WLED||Control Method:||TCP/IP , APP , WIFI , Software Control , IR|
|OSD Language:||Multiple Languages||Diagonal:||32 Inch|
|Multi Signal Function:||Support|

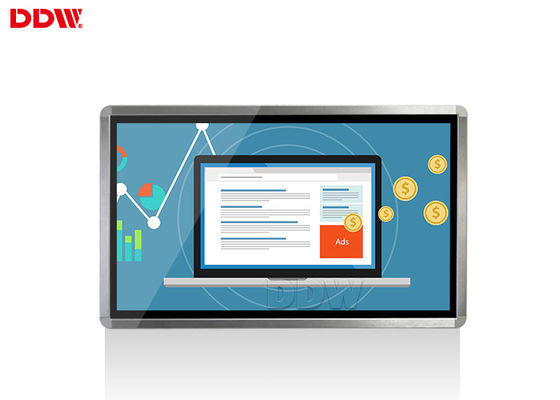

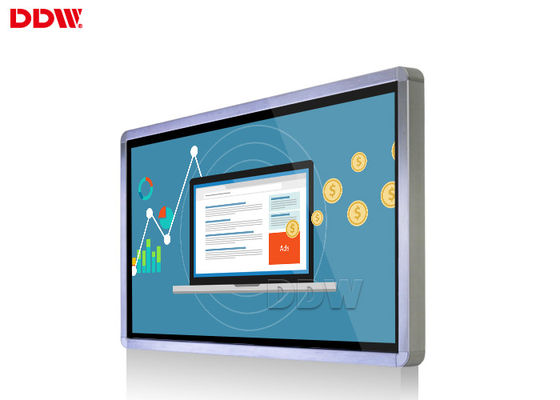

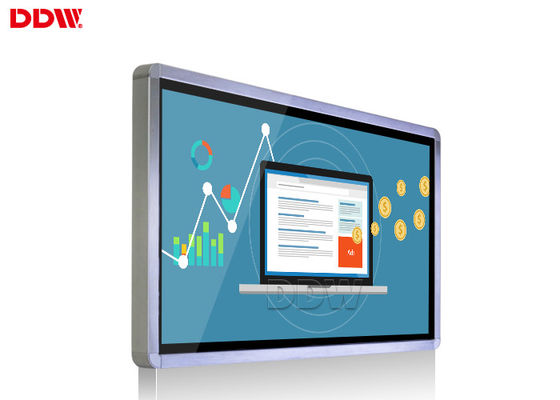

32 Inch touch screen monitor kiosk / Horizontal Multi Dot touchscreen kiosks 1920x1080
32 Inch Touch Screen Kiosk Monitor with 1920x1080 Resolution
1 . Video formats MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) , MPEG1 (VCD DAT/MPG1)
2 . Audio formats MP3
3 . Advanced IR touch technology , support single-touch technology
4 . interactive touch for widely using
5 . Adopt memory card to update ad files
6 . SD card or USB port at one player;
1 . Outer shell is made by extra quality metal material, Color for Outer Shell Shinning Black.
2 . With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.
3 . Full New LG or Samsung ( Made in Korea) A Grade Standard LCD Panel.
4 . Support SD card or USB port at one player; it is optional for VGA Port, S-video port and HDMI port.
5 . Safely locking system function to avoid flash memory card and advertising playing contents being taken away , also can be protected by password.
6 . With USB update feature; support functions between the card and card copying files (such as CF card to SD card , or SD to CF card etc.); support U-copy , conveniently and quickly updating target content , more details please visit user manual.
7 . Playing advertising program automatically and circular; support media format JPEG (JPG) , MP3 , AVI , MPEG1 , MPEG2 , MPEG4 , VOB and DIVX (5.0/6.0).
8 . Playlists support functions , can set different folders , copy all target files to those different folders , system would default to play your target file one by one.
9 . Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
10 . Build-in clock and calendar function in the system of player.
11 . Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
12 . Support shockproof and dustproof function.
|Technical Parameter for LCD Panel||Panel Size||32 inch real color LCD screen|
|Active Area||1210mm(H) x 682mm(V)|
|Max. Resolution||1920x 1080|
|Dot Pitch||0.63mm(H) x 0.63mm(W)|
|Number of Color||16.7M|
|Panel Life||above 50000 hours|
|Storage Medium||Flash memory card||2gb to 36gb for the capacity|
|Support Ad files||Video formats||MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)|
|OSD Language||English , Chinese , French , German , Italian , Spanish , Arabic|
|Audio output||stereo L/R , 5Wx2 , 8Ω|
|Power supply||AC 110V - 240V , 50/60HZ|
|Storage Temperature||-7 to 65 Celsius degree|
|Normal Working Temperature||-5 to 65 Celsius degree|
Infrared touchscreen Panel Parameters
|Touch Max Resolution||4096×4096|
|Transparency||> 90%, Up to 100%|
|Touch Type||Horizontal Multi Dot Touch Screen (Vertical way is optional)|
|Minimum Touch object||≥5mm|
|Touch Intensity||Over 60,000,000 Single Point Touch|
|Operation System||DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX|
|perating Voltage||DC 5V ±5%|
|Power Supply||Keyboard Serial Interface|
|Communication||RS-232 Interface Port, USB Port|
|Vandal-Proof||Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break|
|Temperature Operating||-41°C ~70°C Temperature Storage: -50°C ~85°C|
|Life Time||>10 Year|
|Business Organizations||Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy.|
Banks , negotiable securities , funds , insurance companies , pawnshops;
Non-profit Organizations Telecommunications , post offices , hospital , schools;
|Public Places||subway , airports , stations, gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers; Real Estate Property Apartments , villas , offices , commercial buildings , model rooms , property brokers;|
|Entertainments||Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course|
