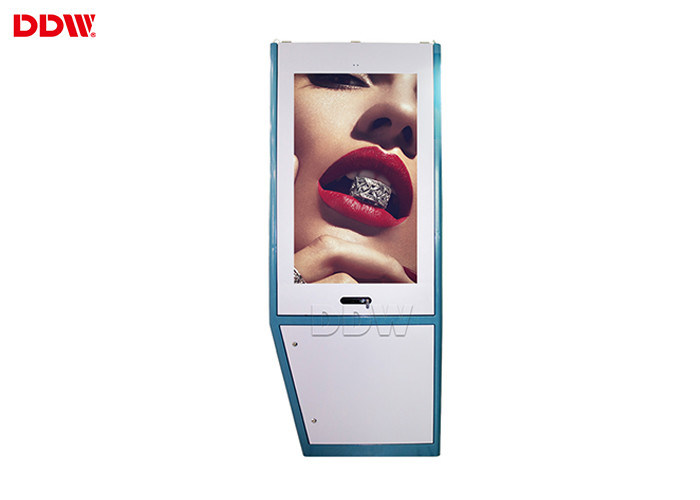

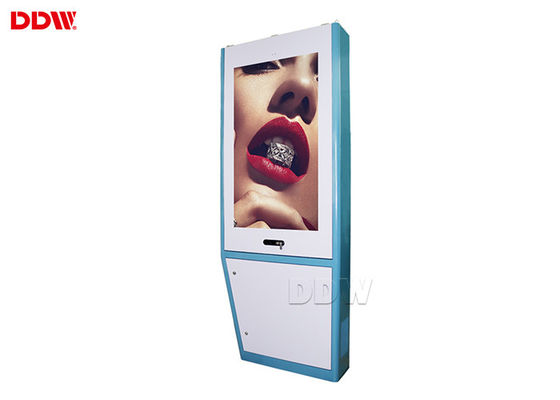

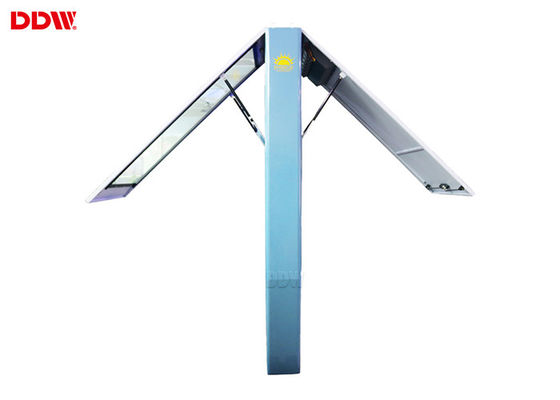

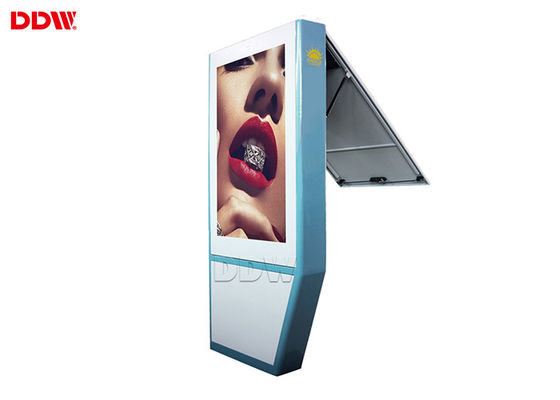

Waterproof Pure Outdoor Digital Signage Floor Stand Touch Screen 55" 3600 Watt
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-ADO5501SN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 20 working days upon payment |
| Payment Terms: | T/T,Western Union,L/C,Alibaba Trade Assurance |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Display Color: | 1.073G(10bits/color) | Average Brightness: | 1500-2500cd/m*m |
|---|---|---|---|
| Life(hrs): | >60 , 000(hrs) | Working Temperature: | 0－40 ℃ |
| Maximum Power Consumption: | 3600W | Storage Temperature: | -10℃ — 50℃ |
| Installation: | Flood-standing , Wall Mounted Or Customized | Applications: | Outdoor |
| Certificate: | CE, Rohs, CCC , FCC , ISO9001 | ||
| Highlight: | freestanding digital signage,digital display signs outdoor |
||
Product Description
55" waterproof pure outdoor digital signage floor stand touch screen for outdoor advertising display monitor
55” high brightness digital signage Key Features
1 . 55 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Built-in power adapter combination AC220V/DC
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Patented LED backlight modular components + constant current source drive components
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃
Functions
1 . Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2 . Audio format Wave/MP3/WMA/AAC
3 . Image format JPEG/BMP/TIFF/PNG/GIF
4 . Image resolution 480P/720P
5 . Play mode Power on , single card auto loop play;classified files auto loop play; multi cards
6 . Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7 . Timing play 7 days a week , free set the play program everyday
8 . Timing open & close Per day 5 times , 7 days a week , free time
Parameters
| LCD parameters | Model No. | DDW-ADO5501SN |
| display | 55" LED | |
| Contrast Ratio | 16:9 | |
| Maximum resolution | 1920x1080 | |
| Display color | 1.073G(10bits/color) | |
| Life(hrs) | >60,000(hrs) | |
| average brightness | 1500-2500cd/m2 | |
| contrast | 4000:1 | |
| Viewing angle | H178°/V178° | |
| Power supply | AC100~240V 50 /60 HZ | |
| Maximum power consumption | 3600W | |
| Standby power consumption | <5W | |
| Working temperature | 0－ 40 ℃ | |
| Storage temperature | -10℃ — 50℃ | |
| Installation | flood-standing, wall mounted or customized | |
| IP65 waterproof case | Using 1.5mm galvanized steel | |
| Surface spray powder (anti-corrosion, anti-rust) | ||
| Outdoor anticorrosive over 7 years | ||
| AR anti-reflective glass 3 + 3mm plastic folder | ||
| Display screen glass | Light transmittance 97% | |
| Reflectivity is less than 3% | ||
| Explosion-proof, waterproof, fireproof | ||
| UV protection 99% | ||
| Display screen | Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 | |
| High brightness 1500-2000 cd/㎡ | ||
| Full hd 1920 x1080 | ||
| Industrial power supply | ||
| automatically adjust the brightness | ||

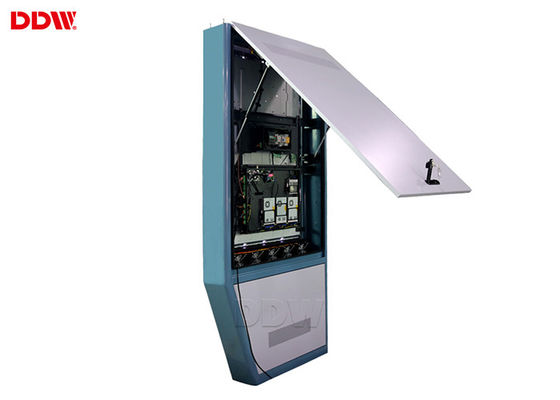

| Electronic control system | Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc. | |
| Cooling system | Intelligent heating and air-cooling system | |
| meet the environment of -20℃ — 55 ℃ | ||
| Patented cooling system ensures that the LCD screen without blackening in direct sunlight | ||
| Product assembly and aging test | IP65 waterproof test | |
| High and low temperature test | ||
| Simulated solar radiation test | ||
| Aging test | ||
| Packaging | Wooden packaging , sea/air/express(transportation standards) | |
Applications
| Business Organizations | supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy. |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops; Non-profit Organizations Telecommunications , post offices , hospital , schools; |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
