Highlight:
1920x1080 Lcd Digital Signage Screen
, 2500cd/m2 Lcd Digital Signage Screen
, RS232 LCD Digital Signage Displays
Panel Technology: |
IPS, M+ (WRGB), High Tni 110 C |
Native Resolution: |
1,920 X 1,080 (FHD) |
Brightness: |
2500Cd/m2 (Standard), 1,500- 5,000 Cd/m2 (Customized) |
Viewing Angle (H X V): |
178x178 |
Aspect Ratio: |
16:9 |
Input: |
. USB. Audio. VGA. DC 12V |
External Control: |
RS232 |
Bezel Color: |
Black |
Bezel Width: |
8.8 Mm (T/B/L/R) |
Special Features: |
Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving,Source Selection,Brightness/Contrast/Backlight Select |
Operation Temperature: |
0℃ To 50℃ |
Operation Humidity: |
10% To 80% |
Power Supply: |
AC 100-240 V, 50/60 Hz |

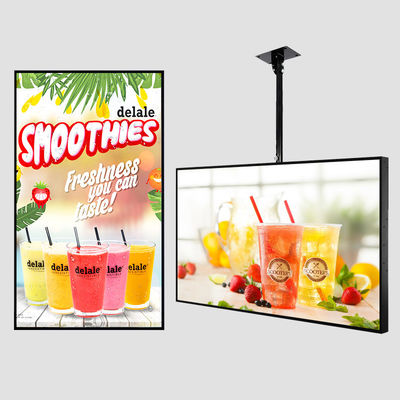

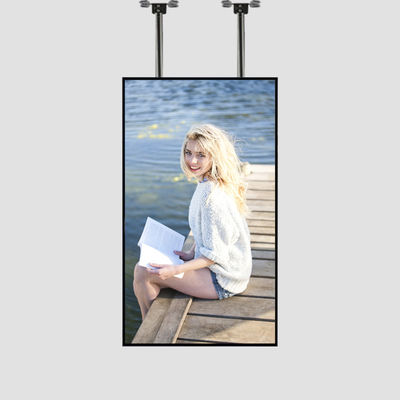

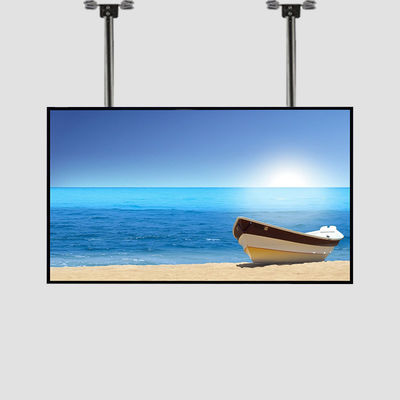

Ceiling ultral thin high brightness semi outdoor lcd digital signage screen
>>Key features:
1. Panel size:43″,49″,55″optional.
2. 2500nits standard brightness, 1,500- 5,000nits brightness optional, automatic brightness adjustment.
3. Ultra-narrow frame design, the narrowest bezel is 0.88mm, 85.3 mm ultra-thin thickness.
4. Variety interfaces: . USB, Audio, VGA, DC12V.
5. Special features:temperature sensor, smart energy saving, source selection.
6. Working temperature: 0°C~50°C.Working Humidity: 10%-80%.
7. Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant.
8. The installation has wall mounted and floor standing optional; This is the wall mounted style.
>>Specifications
| Model |
55 inch |
49 inch |
43inch |
| PANEL |
Panel Technology |
IPS, M+ (WRGB), high Tni 110 C |
| Aspect Ratio |
16:9 |
| Native Resolution |
1,920 x 1,080 (FHD) |
| Brightness |
2,500 Cd/m2 (Standard), 1,500- 5,000 Cd/m2 (Customized) |
| Contrast Ratio |
1000:1 |
|
Viewing Angle
(H x V)
|
178x 178 |
| Surface Treatment |
AGLR (Haze 3%) |
| Lifetime |
50,000 Hrs |
| Operation Hours |
24 Hrs |
| Orientation |
Landscape & Portrait |
| CONNECTIVITY |
Input |
. USB. Audio. VGA. DC 12V |
| Output |
/ |
| External Control |
RS232 |
|
PHYSICAL
SPECIFICATION
|
Bezel Color |
Black |
| Bezel Width |
8.8 mm (T/B/L/R) |
| Monitor Dimension (W x H x D) |
1,232.3 x 703.8 x 85.3 mm |
1,093.2 x 623.5 x 85.3 mm |
965.0 x 553.0 x 85.3 mm |
|
Weight
(Monitor Only)
|
27.5 kg |
25.5 kg |
23.5 kg |
| VESAim Standard Mount Interface |
400x 500 mm |
400x 300 mm |
400x 300 mm |
|
SPECIAL
FEATURES
|
Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving,Source Selection,Brightness/Contrast/Backlight Select |
|
ENVIRONMENTAL
CONDITIONS
|
Operation Temperature |
0℃ to 50℃ |
|
Operation
Humidity
|
10% to 80% |
| Power Supply |
AC 100-240 V, 50/60 Hz |
| Accessories Basic |
Remote Controller (No Batteries Included), Power Cord, IR Receiver (w/ Ambient Light Sensor) |
*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*Payment terms: Bank T/T 50% deposit, balance before delivery;
*Alibaba trade assurance order welcome
*All technical specification, designs and photos subject to change without notice
