| Place of Origin: | China, Guangdong |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-ADSQ-A33W |
Key Features
SRGB coverage gamut: 92%
Android remote control
Ultra high brightness 400-700 high brightness
The proportion of special display ratio (1:1) screen reaches more than 90%
Fourth class frame / ultra thin / ultra light / ultra narrow / design, easy to use and beautiful
Professional fog LCD screen, with brighter images and stronger three-dimensional sense
The product has stable performance and supports 7 * 24-hour uninterrupted work
Plug in USB flash disk to play_ The USB flash disk is encrypted, and the inserted USB flash disk is automatically copied to the local storage for video / picture playback

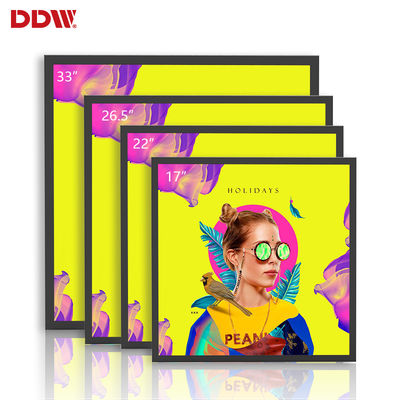

| Panel | 17" | 22" | 26.5" | 28.1" | 33" | 39.8" | 44.9" | |
| Panel type | IPS LCD | IPS LCD | IPS LCD | IPS LCD | IPS LCD | IPS LCD | IPS LCD | |

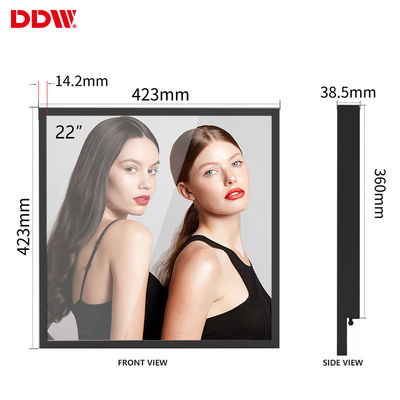

| Display size(mm) | 305.28×305.28 | 394.56×394.56 | 475.776×475.776 | 504.23×504.23 | 596.16× 596.16 | 714.2×714.2 | 806.42×806.42 | |
| Diagonal Aspect Ratio | 1:1 | 1:1 | 1:01 | 1:1 | 1:1 | 1:1 | 1:01 | |
| Physical Resolution | 1920*1920 | 1920*1920 | 1920*1920 | 800*800 | 1920*1920 | 1920*1920 | 1280*1280 | |
| Display Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Viewing Angle | H178%/V178° | H178%/V178° | H178%/V178° | H178%/V178° | H178%/V178° | H178%/V178° | H178%/V178° | |
| Luminance(nits) | 600cd/m2 | 500cd/m2 | 500cd/m2 | 700cd/m2 | 420cd/m2 | 700cd/m2 | 700cd/m2 | |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 4000:1 | 1000:1 | 4000:1 | 4000:01:00 | |
| Backlit type | WLED | WLED | WLED | WLED | WLED | WLED | WLED | |
| Display color | 16.7 million | 16.7 million | 16.7 million | 16.7 million | 16.7 million | 16.7 million | 16.7 million | |
| SRGB coverage rate | 96% | 96% | 96% | 96% | 96% | 96% | 96% | |
| Response time | 8ms | 8ms | 8ms | 8ms | 8ms | 8ms | 8ms | |
| Life(hrs) | more than 50000 | more than 50000 | more than 50000 | more than 50000 | more than 50000 | more than 50000 | more than 50000 | |
| Core | Android 11.0 OS,RK 3568,2G RAM 16GB internal memory,1.8GHz CPU,H264 quick video decoding | |||||||
| Input &Storage | ||||||||
| Control Method | Wifi/RJ45,USB,CF,SD card Control,IR | |||||||
| Color System Support | PAL/NTSC/SECA | |||||||
| OSD Language | English/Chinese(Multiple Language can be customized) | |||||||
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolutions | |||||||
| Video forma tsupport | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||
| Image format support | JPEG/BMP/TIFF/PNG/GIF | |||||||
| Audio format support | Wave/MP3/WMA/AAC | |||||||
| Splicing Display | Support 1080P,1080I,720P,480P &multiple resolutions | |||||||
| Cooling | Low noise fans | |||||||
