P1.56 P1.95 P2.5 Full Color Ultra-thin Fixed Indoor LED Video Wall Indoor 4k HD High Brightness Screen
Product Details:
| Place of Origin: | guangdong |
| Brand Name: | DDWDISPLAY |
| Certification: | CE,ROSH,FCC,IOS9001 |
| Model Number: | DDW-FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
|
Detail Information |
|||
| Pixels: | P1.56 P1.95 P2.5 P2.6 P2.9 P3.91 | Module Size: | 250x250mm |
|---|---|---|---|
| Refresh Rate: | 7680Hz | Brightness: | 800-1200nits(indoor) |
| Cabinet Material: | Die-casting Aluminum | Cabinet Size: | 1000x250/750x250/500x250mm |
Product Description
| Pixel Pitch | 1.56mm | 1.95mm | 2.5mm | 2.6mm | 2.9mm | 3.91mm |
| Optional Processes | SMD,GOB | SMD,GOB | SMD+mask | SMD+mask | SMD+mask | SMD+mask |
| Lamp Types | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| IC DRIVE | CFD455/CFD555 | |||||
| Scan | 1/40S | 1/32S | 1/25S | 1/32S | 1/28S | 1/16S |
| Module Size(mm) | 250mmx250mm | |||||
| Module Resolution(Pixels/pcs) | 160*160 | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 |
| Module Weight(kg) | 0.35kg | 0.35kg | 0.35kg | 0.35kg | 0.35kg | 0.35kg |

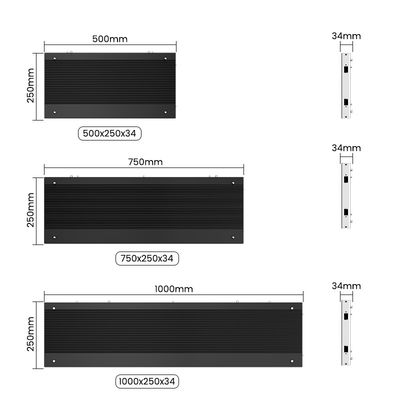

| Cabinet Size(mm) | 1000*250/750*250/500*250 | |||||
| Cabinet Weight(kg) | 5.8kg/4.4kg/2.9kg | |||||
| Pixel Density(Pixels/m²) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |

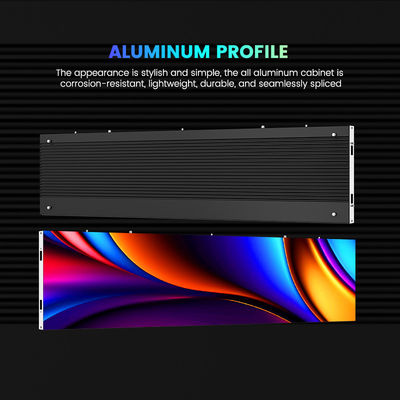

| Material | Aluminum Profile | |||||
| Real Brightness(cd/m²) | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 800-1000 | 1000-1200 |
| Grey Grade | 14bit/16bit | |||||
| Contrast Ratio | ≥ 5000:1 | |||||
| Brightness Uniformity | ≥ 97% | |||||
| Refresh Rate | 7680Hz | |||||
| Input Voltage | 110-220V | |||||
| Viewing Angle | 160W/160H | |||||
| Power Consumption(Max.W/m²) | 560W | |||||
| Power Consumption(Ave.W/m²) | 280W | |||||
| IP Rating(Front/Rear) | IP31 | |||||
| Operating Temperature | -20℃ ~ +45℃ | |||||
| Operating Humidity | 10% ~90%RH | |||||
| Storage Temperature | -10℃ ~ +40℃ | |||||
| Storage Humidity | 10% ~60%RH | |||||
| Lifespan (Hrs) | ≥50,000 | |||||
