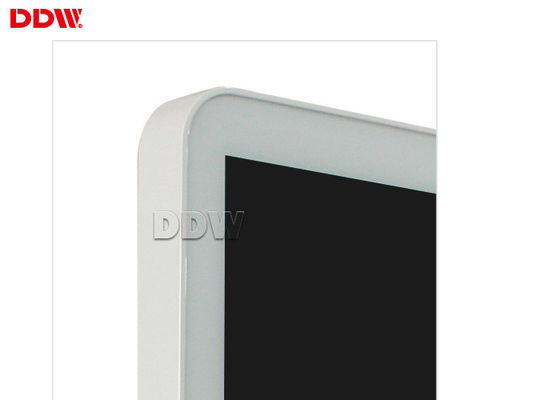

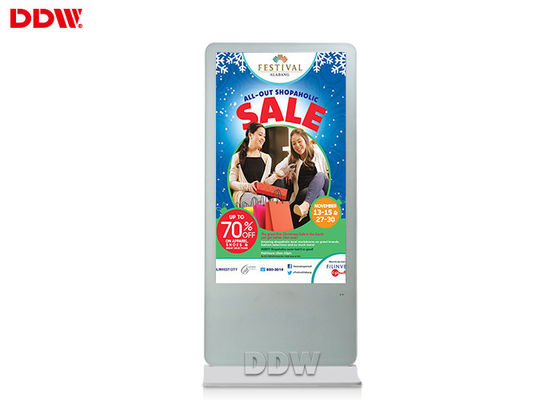

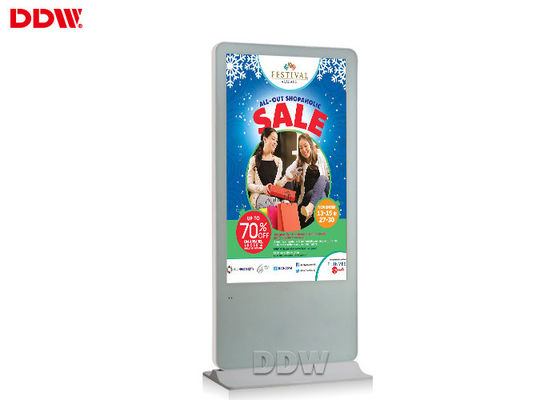

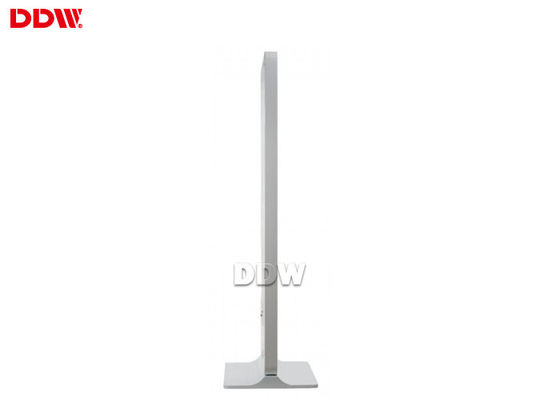

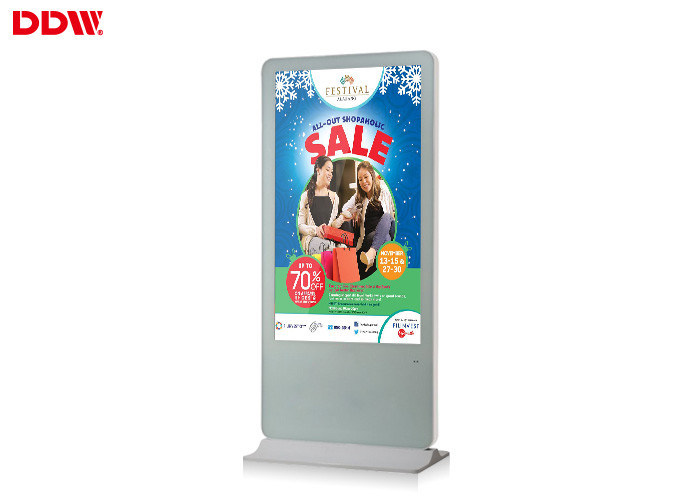

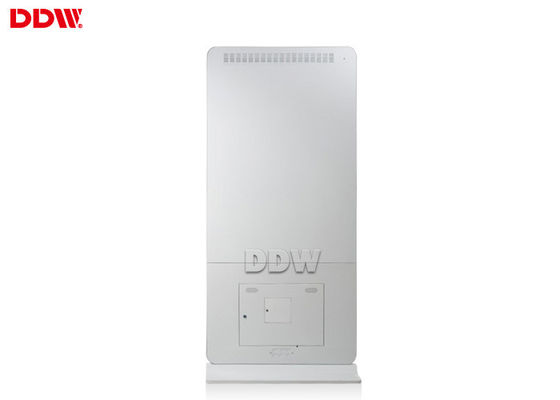

42 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD4201SNO
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20working days upon payment
Payment Terms: T/T,Western Union,L/C,Alibaba Trade Assurance
Supply Ability: 300 set per month
Detail Information
Installation: Flood-standing , Wall Mounted Or Customized Display Color: 1.073G(10bits/color)
Storage Temperature: -10℃ — 50℃ Average Brightness: 1500-2500cd/m*m
Maximum Power Consumption: 3600W Standby Power Consumption: <5W
Working Temperature: 0-40 ℃ Applications: Outdoor
Certificate: CE, Rohs, CCC , FCC , ISO9001
High Light:

digital display signs outdoor

,

freestanding digital signage


Product Description

42 inch standalone pure outdoor digital signage kiosk display 1920x1080 DDW-AD6501SNO





42” high brightness digital signage Functions



1 . Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

2 . Audio format Wave/MP3/WMA/AAC

3 . Image format JPEG/BMP/TIFF/PNG/GIF

4 . Image resolution 480P/720P

5 . Play mode Power on , single card auto loop play;classified files auto loop play; multi cards

6 . Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

7 . Timing open & close Per day 5 times , 7 days a week , free time

8 . Timing play 7 days a week , free set the play program everyday


Parameters



LCD parameters Model No. DDW-AD4201O
display 42" LED
Contrast Ratio 16:9
machine size 1130*684*55
Display area 1040x585
Maximum resolution 1920x1080
Pixel Pitch(mm) 0.1805×0.5415 mm
Display color 1.073G(10bits/color)
Life(hrs) >60,000(hrs)
average brightness 1500-2500cd/m*m
contrast 4000:1
Viewing angle H178°/V178°
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 3600W
Standby power consumption <5W
Working temperature 0- 40 ℃
Storage temperature -10℃ — 50℃
Installation flood-standing, wall mounted or customized
IP65 waterproof case Using 1.5mm galvanized steel
Surface spray powder (anti-corrosion, anti-rust)
Outdoor anticorrosive over 7 years
AR anti-reflective glass 3 + 3mm plastic folder
Display screen glass Light transmittance 97%
Reflectivity is less than 3%
Explosion-proof, waterproof, fireproof
UV protection 99%
Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
High brightness 1500-2000 cd/㎡
Full hd 1920 x1080
Industrial power supply
automatically adjust the brightness
Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc.
Cooling system Intelligent heating and air-cooling system
meet the environment of -20℃ — 55 ℃
LCD display is not blackening
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
Product assembly and aging test IP65 waterproof test
High and low temperature test
Simulated solar radiation test
Aging test
Packaging Wooden packaging , sea/air/express(transportation standards)






42 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 042 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 142 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 242 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 342 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 442 inch digital display signs outdoor , Stand Alone Digital Signage 1920 x 1080 DDW-AD4201SNO 5






Key Features



1 . 42 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable

2 . Patented LED backlight modular components + constant current source drive components

3 . Patented cooling structure combination of high-quality fan assembly

4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)

5 . Automatic ambient light adjustment control (extended life and energy efficiency)

6 . Built-in power adapter combination AC220V/DC

7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system

8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot

9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent

10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃

11 . Frame(fit with single side screen) can be customized exactly same as client provided





Business Organizations supermarket ,  large-scale shopping malls ,  exclusive agency ,  chain shops ,  large-scale sales ,  star-rated hotels ,  restaurants ,  travel agencies , pharmacy.
Financial Organizations

Banks ,  negotiable securities ,  funds ,  insurance companies ,  pawnshops;

Non-profit Organizations   Telecommunications ,  post offices ,  hospital , schools;

Public Places subway ,  airports , stations ,  gas stations ,  toll stations ,  bookstores , parks ,  exhibition halls ,  stadiums ,  museums ,  convention centers ,  ticket agencies ,  HR market ,  lottery centers; Real Estate Property   Apartments , villas ,  offices ,  commercial buildings ,  model rooms ,  property brokers;
Entertainments Movie theaters ,  fitness halls ,  country clubs ,  clubs ,  massage rooms , bars ,  cafes ,  Internet bars ,  beauty shops ,  golf course
