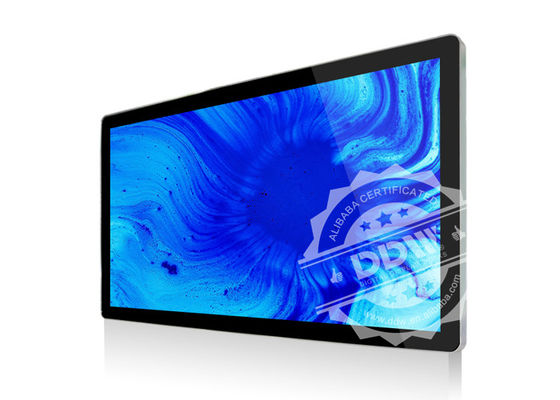

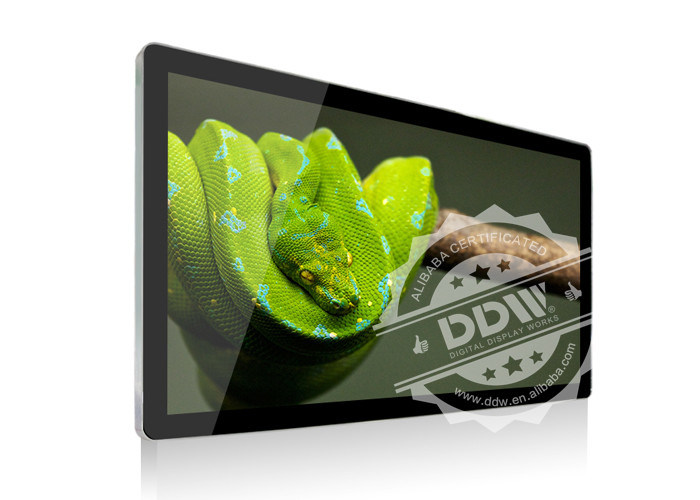

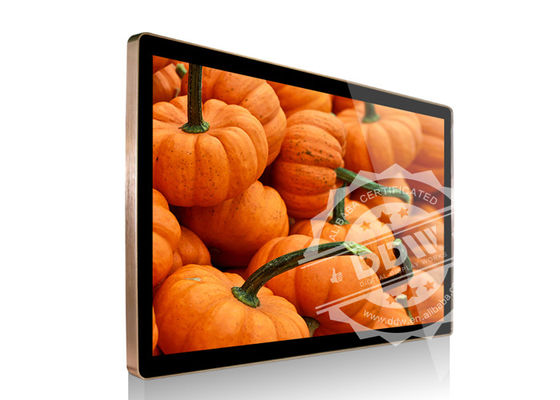

Wall Mount Transparent LCD Display Touch Screen Monitor 1920x1080 For Shopping Plaza
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-AD8201SN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 3-7working days upon payment |
| Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance |
| Supply Ability: | 1000 set per month |
|
Detail Information |
|||
| Physical Resolution: | 1920x1080 | Display Colors: | 16.7M 8bits |
|---|---|---|---|
| Luminance(nits): | 500cd/m2 | Backlit Type: | WLED |
| Response Time: | 8ms | Life(hrs): | More Than 60000hrs |
| Standby/Max.Consumption: | ≤10W/ ≤400W | Control Method: | TCP/IP , APP , WIFI , Software Control , IR |
| OSD Language: | Multiple Languages | ||
| Highlight: | interactive touch screen digital signage,wall mounted advertising display |
||
Product Description
82” interactive digital signage wall mount touch screen monitor 1920x1080 for shopping plaza DDW-AD8201SN
Key features
1 . LED Backlight , FHD 1920x1080 resolution
2 . Seamless designed aluminum alloy frame
3 . Android OS IP/WIFI remote networkcontrol
4 . High contrast 700nits brightness
5 . High brightness 2000nits ,1500nits can be customized
Display mode
Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .
Support rich display resolution
1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .
Schedule
The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .
Program encryption
Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )
Split-screen display
Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause
Timing management
Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk
Log management
Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .
Applications
| Business Organizations | supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops Non-profit Organizations Telecommunications , post offices , hospital , schools |
| Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
Specifications
| Panel type | TFT-LCD |
| Diagonal | 82” |
| Aspect Ratio | 16/9 |
| Physical Resolution | 1920x1080 |
| Display Colors | 16.7M |
| Viewing Angle | H178º/ V178º |
| Luminance(nits) | 500cd/m2 |
| Contrast | 3000/1 |
| Backlit type | WLED |
| Response time | 8ms |
| Life(hrs) | more than 60000hrs |
| RJ45(network port) | 1 |
| USB | 1(USB 2.0) |
| SD | 1(Capatible MMC/MS) |
| CF | 1 |
| VGA | Optional |
| DVI | Optional |
| Optional | |
| Power Supply | AC100~250V 50/60 HZ |
| Max.Consumption | ≤400W |
| Standby Consumption | ≤10W |
| Control Method | TCP/IP , WIFI , Software Control(Network version only) , IR |
| Color System Support | PAL/NTSC/SECAM |
| OSD Language | Multiple languages |
| Rich Resolution | Support 1080P , 1080I , 720P , 480P &multiple resolutions |
| Video forma tsupport | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Image format support | JPEG/BMP/TIFF/PNG/GIF |
| Audio format support | Wave/MP3/WMA/AAC |
| Splicing Display | Support |
| Working Temperature | 0℃-50℃ |
| Working Humidity | 10%-85% |
| Storage Temperature | 0℃-50℃ |
| Storage Humidity | 5%-95% |
| Cooling | Low noise fans |
| Application Condition | Indoor/Semi Outdoor |
| Material | Cold-roll steel SPCC |
| Frame Color | Black/White/Customization |
| Mount/Installation type | Standby/Wall mount with wheel rack |
| Dimension with base | 1880x632x80mm |
Competitive Advantage
Kiosk LCD Advertising , a large stand advertising equipment,which makes it perfect and luxury for advertising .
All stand machine can install wheel . It depends on your requirements . If we done this,the machine can move around easily .
