Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display

Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display

    • Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display
    • Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display
    • Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display
  • Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW460HN13

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel Size: 46inch Resolution: 1920x1080
    Bezel Width: 1.7mm Color: 8Bit , 16M
    Brightness: 700nits Contrast Ratio: MEGA DCR
    Backlight: LED Viewing Angle: 178x178

    Video wall curved samsung thin bezel video wall 700cd sqm Luminance flexible display



    Features

    1, Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD

    2, 700nits brightness , MEGA DCR contrast

    3, FHD physical resolution 1920x1080

    4, Only 1.7mm ultra narrow bezel, high quality, practical, good vision effect;

    5, Signal interface rich, RS232, HDMI, DVI, VGA, YPbPr, AV;

    6, HD video wall unit, high brightness, high contrast, high gamut;

    7, Flexible structure design, easy installation, extensible, arbitrary combination;

    8, Stable performance, suitable working for a long time;

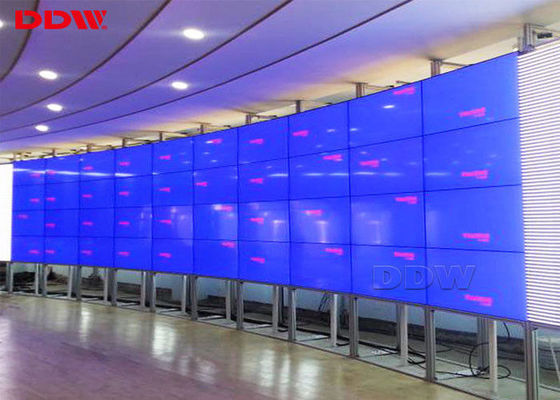

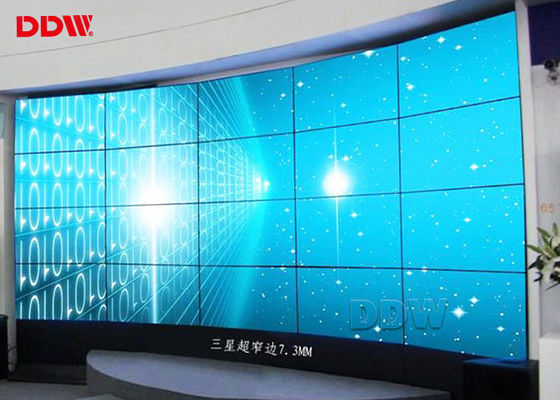

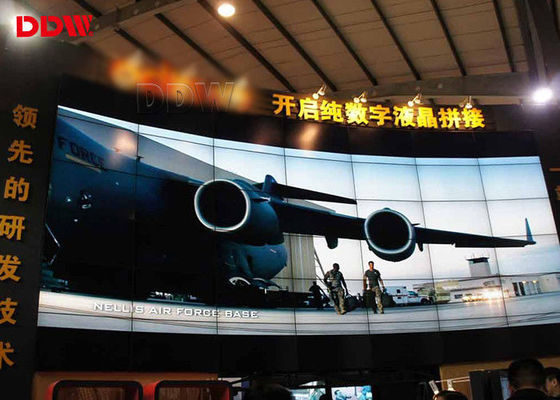

    About the installation screen first curved stitching calculation data , real-time measurement , coherent , forming a perfect arc between the liquid crystal splicing unit. In the display area is relatively small , with curved stitching create a relatively wider field of view , the relative increase in the visual display area , for customers to create a more comfortable viewing. Therefore , contrast , curved stitching large screen can bring a better perception of the effect.



    Specifications

    Panel Specifications
    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 46" (1168 mm)
    Bezel Width Total: 1.7mm
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System WLED
    Luminance(nits) 700cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH) 0.5302x0.5302mm
    Active Display Area(WxH) 1018.08 × 572.67 mm
    Panel Dimension(WxHxD) 1020.02x574.61x68.1mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing
    HDMI 1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 1
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizontal &vertical numbers of screens and show display
    Support combine all screens together to show 1image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
    Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs





    Generally for some group company which has large number of viewer and has high requirement for view , if the display area is allowed and enough , we can use curved LCD video wall display.
