Highlight:
flexible video wall
, curved display monitor

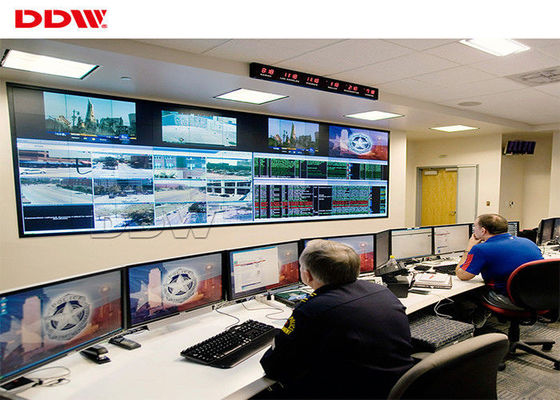

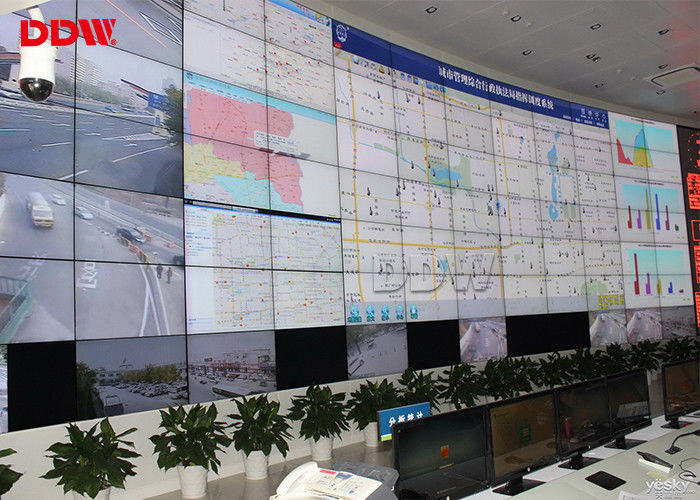

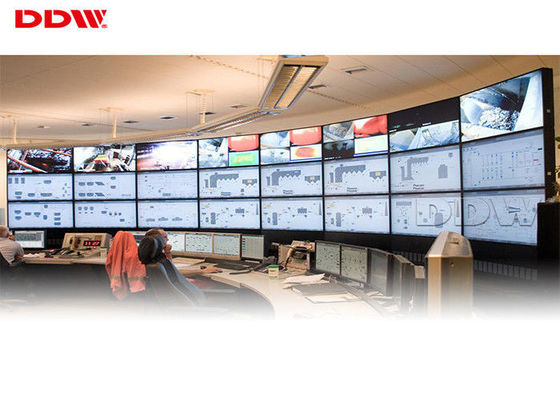

LCD video wall curved security video wall 500nits flexible Video Wall lg panel 1080p resolution DDW-LW550HN16
About the installation screen first curved stitching calculation data , real-time measurement , coherent , forming a perfect arc between the liquid crystal splicing unit. In the display area is relatively small , with curved stitching create a relatively wider field of view , the relative increase in the visual display area , for customers to create a more comfortable viewing. Therefore , contrast , curved stitching large screen can bring a better perception of the effect.
In recent years , LCD video wall technology developed rapidly , the LCD video wall screen is used more and more widely , and the installation environment is becoming more and more complicated , the needs of the present is not limited to the square of the LCD display screen and arc , elliptical arc , wavy surface LCD display screen needs has been more and more popular.
Main parameters
- Support a variety of signal ports;
- Built-in splicing module, support splice function;
- Support Creating one window PIP across the screen, roaming service, scaling, PIP;
- Support matrix joint control;
- Unique DNX motion supplement image processing technology;
- Dynamic image without motion trail;
- Splicing image processing RS-232 RJ45 loop-circuit input/output;
- Input by remote control with wire , mobile receiver head;
Key features
Support a variety of signal ports
Built-in splicing module, support splice function
Support Creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Specifications
| Panel Specifications |
| LCD Technology |
LG a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Bezel Width |
Total: 1.7mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
WLED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) |
1211.54x682.34x68.1mm |
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
|
1 |
| VGA |
1 |
| CVBS IN |
1 |
| CVBS OUT |
1 |
| RS232 IN |
1 |
| RS232 OUT |
1 |
| ISP IN |
1 |
| IR IN |
1 |
| CODING BUTTON |
1 |
| AC IN |
AC100-240V |
| Color System Support |
PAL/NTSC/SECAM |
| Control Type |
IR Remote &Software Control |
| Menu Language |
English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display |
Support |
| Combine Display |
Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image |
| Solid Display |
Support each screen input with separate signal |
| PIP/Zoom/Roaming |
Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces |
Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution |
Support 1080P,1080I,720P,480P &multiple resolution inputs |
Generally for some group company which has large number of viewer and has high requirement for view , if the display area is allowed and enough , we can use curved LCD video wall display.
