Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD4201SNO
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20working days upon payment
Payment Terms: T/T,Western Union,L/C,Alibaba Trade Assurance
Supply Ability: 300 set per month
Panel Brand: |
Samsung DID |
Display Color: |
1.073G(10bits/color) |
Life(hrs): |
>60 , 000(hrs) |
Average Brightness: |
1500-2500cd/m*m |
Maximum Power Consumption: |
3600W |
Size: |
42 Inch |
Working Temperature: |
0-40 ℃ |
Applications: |
Outdoor |
Installation: |
Flood-standing , Wall Mounted Or Customized |
Keyword: |
Outdoor Digital Signage |
Panel Brand: |
Samsung DID |
Display Color: |
1.073G(10bits/color) |
Life(hrs): |
>60 , 000(hrs) |
Average Brightness: |
1500-2500cd/m*m |
Maximum Power Consumption: |
3600W |
Size: |
42 Inch |
Working Temperature: |
0-40 ℃ |
Applications: |
Outdoor |
Installation: |
Flood-standing , Wall Mounted Or Customized |
Keyword: |
Outdoor Digital Signage |

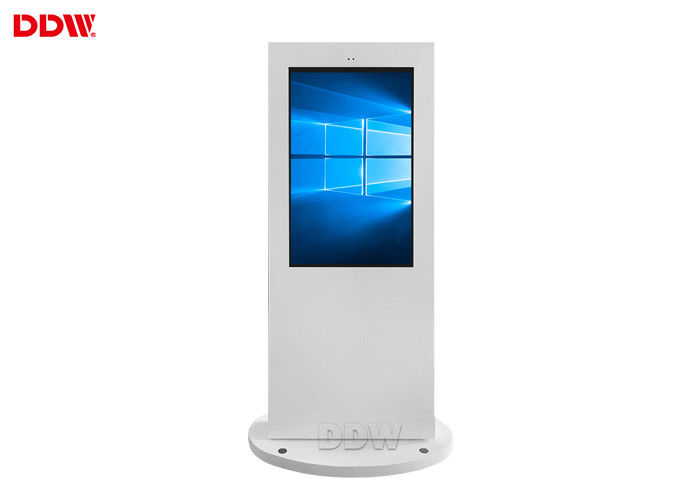

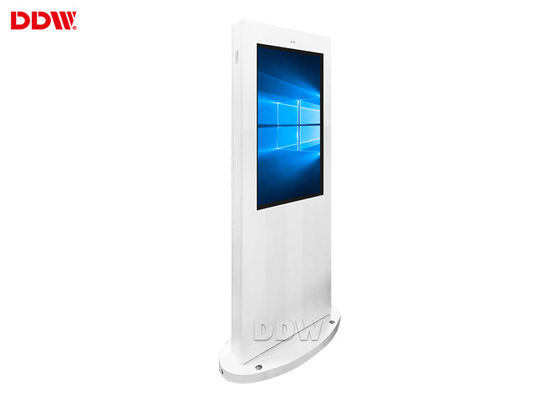

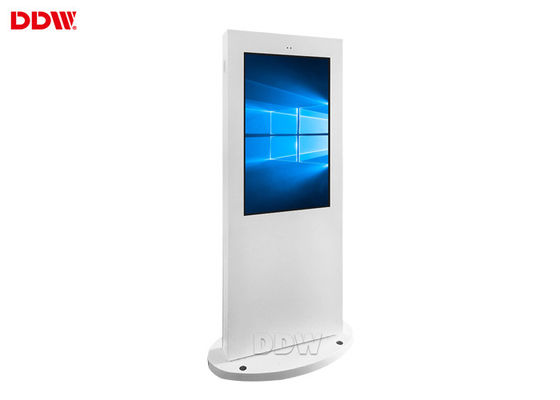

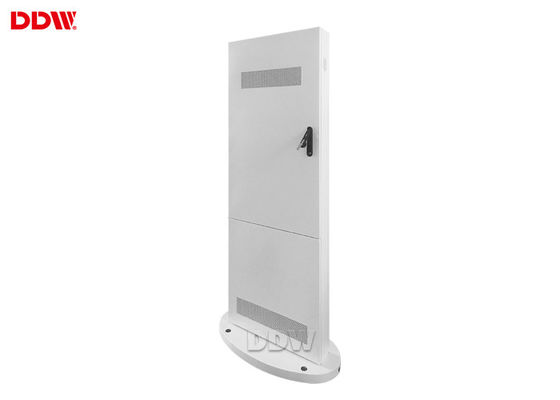

42 inch IP65 waterproof 1920x1080 FHD pure outdoor digital signage totem display DDW-AD4201SNO
42” high brightness digital signage Parameters
LCD parameters | Model No. | DDW-AD4201O |
display | 42" LED | |
Contrast Ratio | 16:9 | |
machine size | 1130*684*55 | |
Display area | 1040x585 | |
Maximum resolution | 1920x1080 | |
Pixel Pitch(mm) | 0.1805×0.5415 mm | |
Display color | 1.073G(10bits/color) | |
Life(hrs) | >60,000(hrs) | |
average brightness | 1500-2500cd/m*m | |
contrast | 4000:1 | |
Viewing angle | H178°/V178° | |
Power supply | AC100~240V 50 /60 HZ | |
Maximum power consumption | 3600W | |
Standby power consumption | <5W | |
Working temperature | 0- 40 ℃ | |
Storage temperature | -10℃ — 50℃ | |
Installation | flood-standing, wall mounted or customized | |
IP65 waterproof case | Using 1.5mm galvanized steel | |
Surface spray powder (anti-corrosion, anti-rust) | ||
Outdoor anticorrosive over 7 years | ||
AR anti-reflective glass 3 + 3mm plastic folder | ||
Display screen glass | Light transmittance 97% | |
Reflectivity is less than 3% | ||
Explosion-proof, waterproof, fireproof | ||
UV protection 99% | ||
Display screen | Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 | |
High brightness 1500-2000 cd/㎡ | ||
Full hd 1920 x1080 | ||
Industrial power supply | ||
automatically adjust the brightness | ||
Electronic control system | Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc. | |
Cooling system | Intelligent heating and air-cooling system | |
meet the environment of -20℃ — 55 ℃ | ||
LCD display is not blackening | ||
Patented cooling system ensures that the LCD screen without blackening in direct sunlight | ||
Product assembly and aging test | IP65 waterproof test | |
High and low temperature test | ||
Simulated solar radiation test | ||
Aging test | ||
Packaging | Wooden packaging , sea/air/express(transportation standards) |
Functions
1 . Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2 . Audio format Wave/MP3/WMA/AAC
3 . Image format JPEG/BMP/TIFF/PNG/GIF
4 . Image resolution 480P/720P
5 . Play mode Power on , single card auto loop play;classified files auto loop play; multi cards
6 . Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7 . Timing open & close Per day 5 times , 7 days a week , free time
8 . Timing play 7 days a week , free set the play program everyday
Key Features
1 . 42 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC220V/DC
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided
Applications
Business Organizations | supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy. |
Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops; Non-profit Organizations Telecommunications , post offices , hospital , schools; |
Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers; Real Estate Property Apartments , villas , offices , commercial buildings , model rooms , property brokers; |
Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
