Home > products > Outdoor Digital Signage > LAN WIFI LCD freestanding digital signage display outdoor 4000/1 contrast

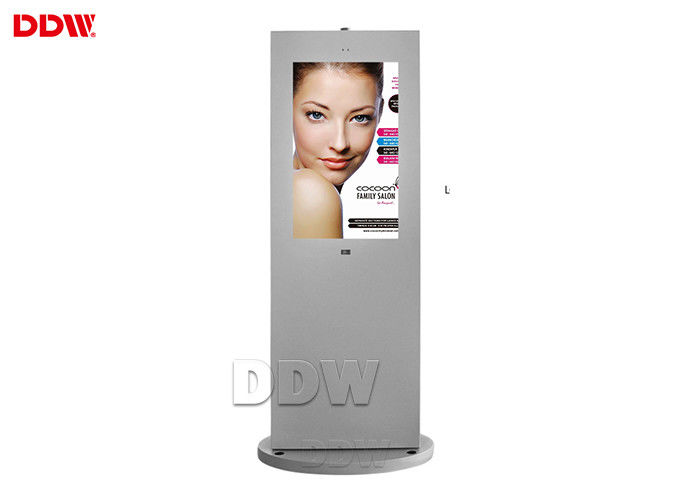

LAN WIFI LCD freestanding digital signage display outdoor 4000/1 contrast

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC , IP65

Model Number: DDW-AD4601SNO

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Carton and Full wood box packing

Delivery Time: 20working days upon payment

Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance

Supply Ability: 300 set per month

Get Best Price
Product Details
Highlight:

outdoor digital display signs

,

digital display signs outdoor

Maximum Resolution:
1920x1080
Maximum Power Consumption:
3600W
Storage Temperature:
-10℃ — 50℃
Average Brightness:
1500-2500cd/mxm
Backlight:
WLED
Standby Power Consumption:
<5W
Working Temperature:
0- 40 ℃
Life(hrs):
>60000(hrs)
Installation:
Flood-standing , Wall Mounted Or Customized
Panel Brand:
LG
Applications:
Public Places
Maximum Resolution:
1920x1080
Maximum Power Consumption:
3600W
Storage Temperature:
-10℃ — 50℃
Average Brightness:
1500-2500cd/mxm
Backlight:
WLED
Standby Power Consumption:
<5W
Working Temperature:
0- 40 ℃
Life(hrs):
>60000(hrs)
Installation:
Flood-standing , Wall Mounted Or Customized
Panel Brand:
LG
Applications:
Public Places
Product Description





46” high brightness LCD digital signage display outdoor for commercial 1920x1080 DDW-AD4601SNO





Functions



1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

2, Audio format Wave/MP3/WMA/AAC

3, Image format JPEG/BMP/TIFF/PNG/GIF

4, Image resolution 480P/720P

5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards

6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

7, Timing open & close:Per day 5 times , 7 days a week,free time

8, Timing play 7 days a week,free set the play program everyday



Key Features

1, 46 inch high brightness LCD Module ,1500nits brightness , 1920x1080 resolution , 4000/1 contrast with LED backlight , Sunlight viewable

2, Patented LED backlight modular components + constant current source drive components

3, Patented cooling structure combination of high-quality fan assembly

4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input , 3G(optional)

5, Automatic ambient light adjustment control (extended life and energy efficiency)

6, Built-in power adapter combination AC220V/DC

7, IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system

8, Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot

9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent

10, A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring , real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature -20℃ - 50℃

11, Frame(fit with single side screen) can be customized exactly same as client provided



Parameters

LCD parameters Model No. DDW-AD4601SNO
display 46" LED
Contrast Ratio 16/9
machine size 1098x653x55
Display area 1022x575
Maximum resolution 1920x1080
Pixel Pitch(mm) 0.531×0.531mm
Display color 1.073G(10bits/color)
Life(hrs) >60,000(hrs)
average brightness 1500-2500cd/mxm
contrast 4000/1
Viewing angle H178°/V178°
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 3600W
Standby power consumption <5W
Working temperature 0- 40 ℃
Storage temperature -10℃ — 50℃
Installation flood-standing , wall mounted or customized
IP65 waterproof case Using 1.5mm galvanized steel
Surface spray powder (anti-corrosion, anti-rust)
Outdoor anticorrosive over 7 years
AR anti-reflective glass 3 + 3mm plastic folder
Display screen glass Light transmittance 97%
Reflectivity is less than 3%
Explosion-proof, waterproof, fireproof
UV protection 99%
Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
High brightness 1500-2000 cd/㎡
Full hd 1920x1080
Industrial power supply
automatically adjust the brightness
Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc .
Cooling system Intelligent heating and air-cooling system
meet the environment of -20℃ — 55 ℃
LCD display is not blackening
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
Product assembly and aging test IP65 waterproof test
High and low temperature test
Simulated solar radiation test
Aging test
Packaging Wooden packaging, sea/air/express(transportation standards)

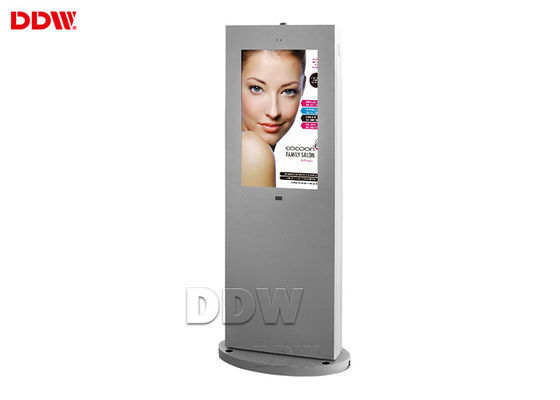

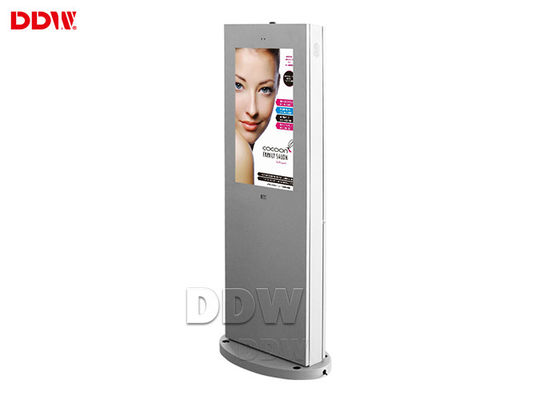

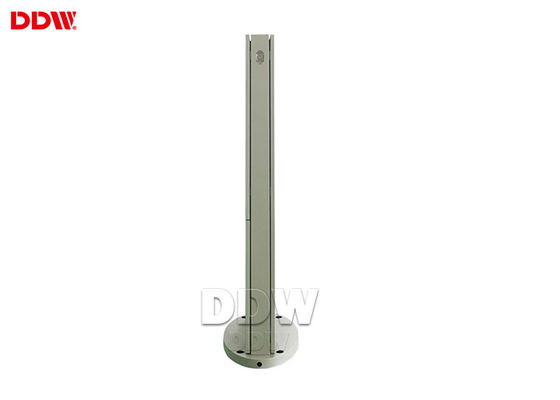

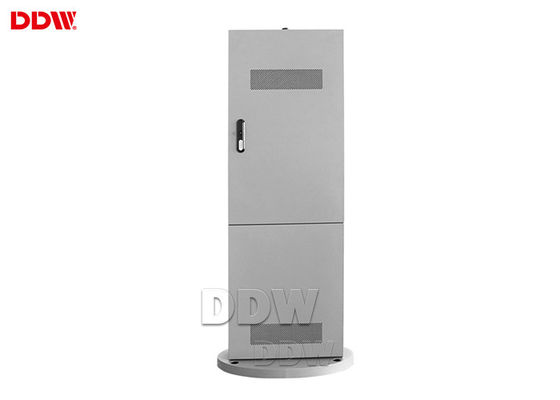

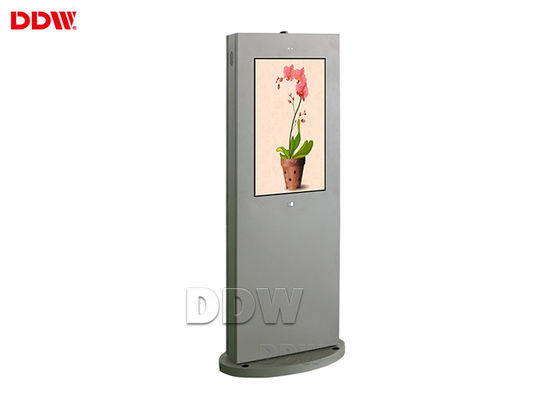

LAN WIFI LCD freestanding digital signage display outdoor 4000/1 contrast 0LAN WIFI LCD freestanding digital signage display outdoor 4000/1 contrast 1LAN WIFI LCD freestanding digital signage display outdoor 4000/1 contrast 2

Applications

Business Organizations Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations Banks , negotiable securities , funds , insurance companies , pawnshops ,  Non-profit Organizations ,  Telecommunications , post offices , hospital , schools
Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property ,  Apartments , villas , offices , commercial buildings , model rooms , property brokers .
Entertainments Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course
