Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD6501S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 300 set per month
Installation: |
Flood-standing , Wall Mounted Or Customized |
Display Color: |
1.073G(10bits/color) |
Life(hrs): |
>60000(hrs) |
Average Brightness: |
1500-2500cd/mxm |
Maximum Power Consumption: |
3600W |
Standby Power Consumption: |
<5W |
Working Temperature: |
0- 40 ℃ |
Storage Temperature: |
-10℃ — 50℃ |
Maximum Resolution: |
1920x1080 |
Certificate: |
CE, Rohs, CCC , FCC , ISO9001 |
Installation: |
Flood-standing , Wall Mounted Or Customized |
Display Color: |
1.073G(10bits/color) |
Life(hrs): |
>60000(hrs) |
Average Brightness: |
1500-2500cd/mxm |
Maximum Power Consumption: |
3600W |
Standby Power Consumption: |
<5W |
Working Temperature: |
0- 40 ℃ |
Storage Temperature: |
-10℃ — 50℃ |
Maximum Resolution: |
1920x1080 |
Certificate: |
CE, Rohs, CCC , FCC , ISO9001 |

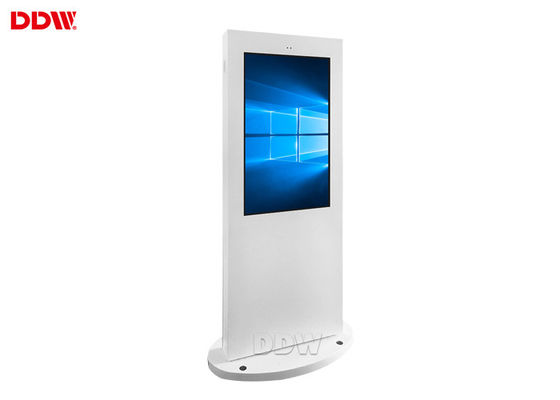

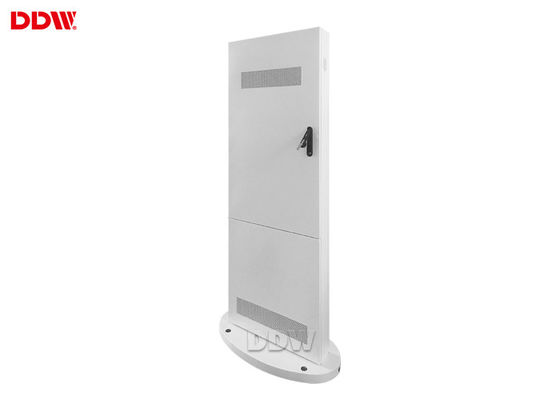

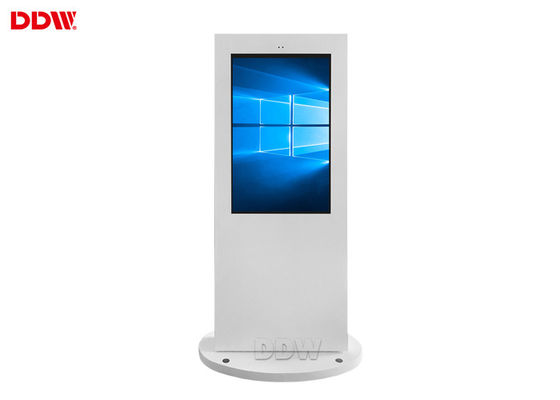

65” LCD big outdoor digital signage display 1920x1080 DDW-AD6501S
Built-in media player function:
1 , Time Function , the player turns on/off at the same time everyday according to user setting
2 , Support 5 groups of auto power-on/off timer , and can set 5 groups of time one day and 7 days in one week
4 , Support software upgrade function by U-sticker via USB port
5 , Build-in Clock and calendar function in the system of player
6 , Playing advertising file automatically and circularly after insert CF card/SD/U-sticker etc
7 , Support playing list function , user can set different folders , copy all target files to those different folders via software , system would default to play your target file one by one
8 , Support IR Remote function , user can use IR to operate the whole LCD
9 , It is available with Horizontal OSD and Vertical OSD
main specification:
1, high brightness LCD Module, standard 1500nits brightness,1920x1080 resolution,4000:1 contrast,LED backlight, Sunlight viewable, built in light sensor module, screen brightness can change according to the surrounding environment,
2, Special designed LED backlight modular + constant current source drive components
3, Special designed fan cooling system, automatically temperature control with temperature sensor built in, to make the display inner part work at a constant temperature
4, IP55 grade all weatherproof dustproof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC
5, Fan cooling, heat exchange system
6, Interfaces: Android : support ,VGA input, USB, WIFI, RJ45; Windows: , VGA output, USB,WIFI, RJ45
7,OS: Android OS 5.1+, Windows OS 7/8/10, RS232 board optional
8, Adapt Akesu paint powder from Germany, 5-7 years no fade, professional anti-corrosion more than 5 years
9, LCD protect function: Auto Shut off function upon internal temperature reaches 70℃
10, Integrated with Lightning protection, leakage protection switch,
11, Adapt Taiwan Meanwell power, A/C 100-240V, 50/60Hz
12, Different enclosures can be customized exactly according to client requirements
13, Screen surface 6mm AR glass, light transmittance can be highest 97%
14, Unique LCD screen substrate wide range temperature -30℃-60℃ processing
Parameters:
LCD Parameter | |
panel type | 100% orginal TFT LCD |
size | 32"-98"; |
brightness | 2500 nits |
resolution | 1920*1080 |
backlight | LED |
screen surface | 6mm AR Glass |
Enclosure | |
Material | 1.9mm SPCC,other material available, surface treament Adapt Akesu paint powder from Germany, professional anti-corrosion more than 10 years |
shape | can custom made |
Temperature control | |
Fan cooling | industrial fan, heat exchange, air circulation, automatically temperature control with temperature sensor system, when the inner temperature arise, the fan rotate acceleratatively and make the air circulation faster |
Air conditioner | industrial grade air conditioner, built in temperature sensor module, air conditioner cooling, constant inner working temperature, smart control, when the inner temperature to 30°, stop cooling, when the working temperature -5°, start heating, when up to 0°, stop heating |
