| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-AD4701TK |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 20working days upon payment |
| Payment Terms: | T/T,Western Union,L/C,Alibaba Trade Assurance |
| Supply Ability: | 300 set per month |
| Size: | 47 Inch | Display Color: | 1.073G(10bits/color) |
|---|---|---|---|
| Life(hrs): | >60 , 000(hrs) | Average Brightness: | 1500-2500cd/m*m |
| Maximum Power Consumption: | 3600W | Keyword: | Outdoor Digital Signage |
| Working Temperature: | 0－40 ℃ | Applications: | Outdoor |
| Installation: | Flood-standing , Wall Mounted Or Customized | Panel Brand: | Samsung DID |
| High Light: | touch screen information kiosk,free standing digital display |
||

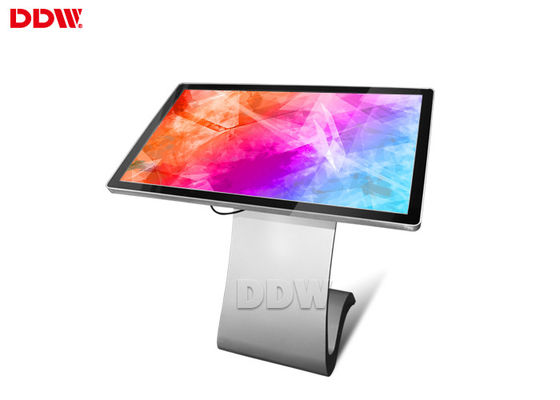

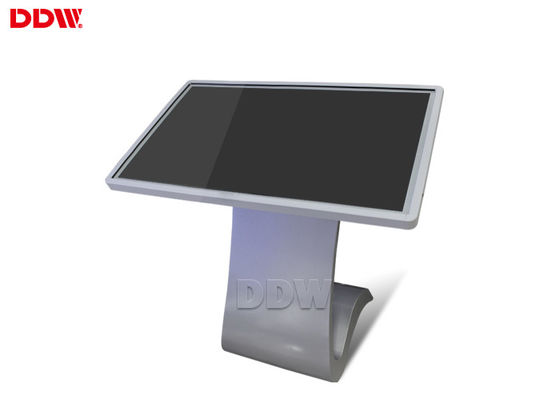

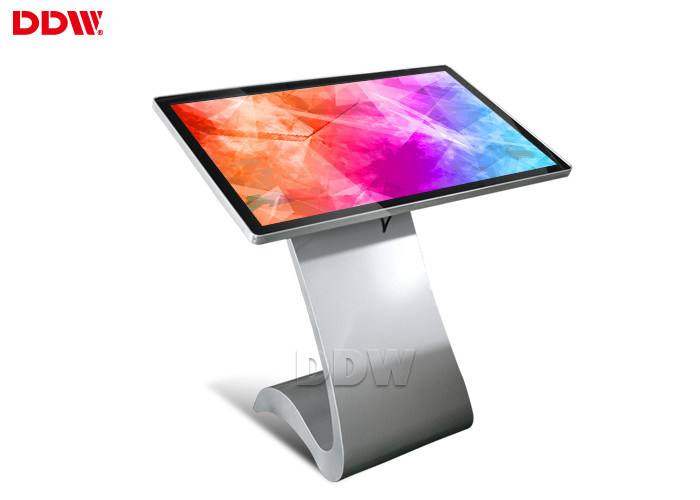

47 Inch Floor Stand Touch Screen Digital Signage Advertising Display Remote Control DDW-AD4701TK
Key Features:
1 . 47 inch high brightness LCD Module , 500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC220V/DC
7 . IP47 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided
| Product Specification | |||
| Panel Details | Panel Brand | Samsung/LG/CHIMEI/INNOLUX/BOE/ LCD | |
| Panel Size | 47 Inch 16:9 | ||
| Product Color | White , black , color is customized. | ||
| Decoding Formats | Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,RM,RMVB,etc. | |
| FHD 1080P Video | YES | ||
| Picture Format | JPG, BMP | ||
| Text | TXT(UTF-8 format) | ||
| Audio Format | MP3, WAV | ||
| Android Network version | Version 1 | Quad core 8G internal memory,,VGA input,USB,SD slot,WIFI,LAN,3G/4G optional | |
| Version 2 | Dual core 4G internal memory,,VGA input,USB,SD slot,WIFI,LAN,3G/4G optional | ||
| Version 3 | Quad core 8G internal memory,,VGA output,USB,SD slot,WIFI,LAN,3G/4G optional | ||
| Version 4 | Dual core 4G internal memory,,VGA output,USB,SD slot,WIFI,LAN,3G/4G optional | ||
| Non-network version | Version 5 | ,VGA input,USB,SD slot,4GB internal memory | |
| Version 6 | USB,SD slot,4GB internal memory | ||
| PC version | Version 7 | i3 4G RAM 500GB HDD,WIN7 OS,flexible config | |
| Version 8 | i5 8G RAM 500GB HDD,WIN7 OS,flexible config | ||
| Version 9 | i7 16G RAM 500GB HDD,WIN7 OS,flexible config | ||
| Remarks: More modules like Touch screen, Motion sensor , built-in camera , different colors , materials are optional | |||
| Accessory | Power supply cable, user manual, remote control, keys | ||
| Temperature Details: Touch screen operating temperature:-41°C ~70°C,Storage Temperature: -50°C ~85°C | |||
| The machine operating temperature: -4~65°C,Storage Temperature:-7~65°C. | |||
| Main Features | |||
| 1.Application fields: Public places ,shopping mall, restaurant,airport, square, commercial buidings,etc. | |||
| 2.Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work. | |||
| 3.Support shockproof and dust proof function. | |||
| 4.Adopts high transparent tempered glass (4-6 mm ) as protection layer toprevent lcd/led panel being broken or distorted. | |||
| 5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) from being stolen. | |||
| 6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional ) | |||
| 7.Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is optional. | |||
| 8.Playing circles automatically when powers on | |||
| 9.Allowing memory of breakpoint/AD management system. | |||
| 10.Automatically generating playing list/Mixed displaying of videos,images and music | |||
