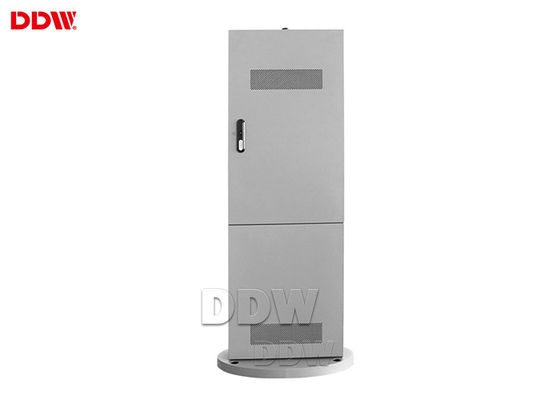

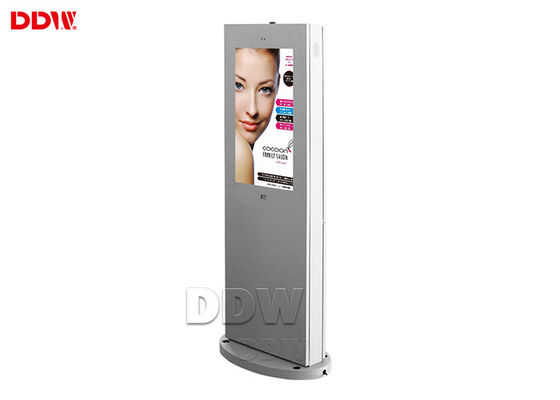

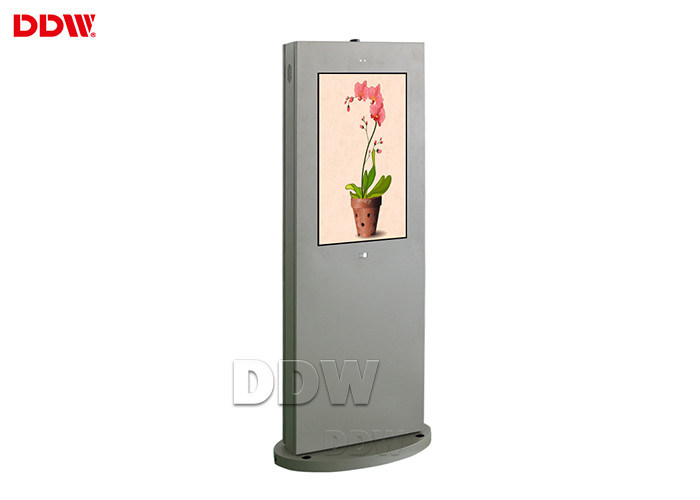

Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S

Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S

    • Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S
    • Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S
    • Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S
  • Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC , IP65
    Model Number: DDW-AD7001S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 20 working days upon payment
    Payment Terms: T/T,Western Union,L/C,Alibaba Trade Assurance
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Display Color: 1.073G(10bits/color) Maximum Power Consumption: 3600W
    Standby Power Consumption: <5W Working Temperature: 0-40 ℃
    Storage Temperature: -10℃ — 50℃ Installation: Floor Standing , Wall Mounted Or Customized
    Color: Black , Red , Grey Maximum Resolution: 1920x1080
    Life(hrs): >60 , 000(hrs) Average Brightness: 1500-2500cd/m*m
    Screen Size: 70inch

    Waterproof 70" Outdoor floor standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S





    70” high brightness digital signage Key Features

    1 70 inch high brightness LCD Module, 1500nits brightness, 920x1080 resolution, 4000:1 contrast with LED backlight, Sunlight viewable;

    2 . Patented LED backlight modular components + constant current source drive components;

    3 . Patented cooling structure combination of high-quality fan assembly;

    4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control ,  USB , CF , SD slots , support HDMI VGA input,3G(optional);

    5 . Automatic ambient light adjustment control (extended life and energy efficiency);

    6 . Built-in power adapter combination AC220V/DC;

    7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system;

    8 . Highly fortified AR glass ,  protect the LCD screen from direct injury ,  played the role of anti-riot;

    9 . Rackmount LCD display module + built-in anti-theft locks ,  patented a unique ,  easy to disassemble and maintain the site ,  a unique patent

    10 . A/C  automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration; temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃;

    11 . Frame(fit with single side screen) can be customized exactly same as client provided;



    Parameters

    LCD parameters Model No. DDW-AD7001S
    display 70" LED
    Contrast Ratio 16:9
    machine size 2310x1012x71mm
    Display area 1547.44x869.56mm
    Maximum resolution 1920x1080
    Pixel Pitch(mm) 0.8015x0.8015 mm
    Display color 1.073G(10bits/color)
    Life(hrs) >60,000(hrs)
    average brightness 1500-2500cd/m*m
    contrast 4000:1
    Viewing angle H178°/V178°
    Power supply AC100~240V 50 /60 HZ
    Maximum power consumption 3600W
    Standby power consumption <5W
    Working temperature 0- 40 ℃
    Storage temperature -10℃ — 50℃
    Installation flood-standing, wall mounted or customized
    IP65 waterproof case Using 1.5mm galvanized steel
    Surface spray powder (anti-corrosion, anti-rust)
    Outdoor anticorrosive over 7 years
    AR anti-reflective glass 3 + 3mm plastic folder
    Display screen glass Light transmittance 97%
    Reflectivity is less than 3%
    Explosion-proof, waterproof, fireproof
    UV protection 99%
    Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
    High brightness 1500-2000 cd/㎡
    Full hd 1920 x1080
    Industrial power supply
    automatically adjust the brightness
    Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc.
    Cooling system Intelligent heating and air-cooling system
    meet the environment of -20℃ — 55 ℃
    LCD display is not blackening
    Patented cooling system ensures that the LCD screen without blackening in direct sunlight
    Product assembly and aging test IP65 waterproof test
    High and low temperature test
    Simulated solar radiation test
    Aging test
    Packaging Wooden packaging , sea/air/express(transportation standards)




    Functions

    1 . Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

    2 . Audio format Wave/MP3/WMA/AAC

    3 . Image format JPEG/BMP/TIFF/PNG/GIF

    4 . Image resolution 480P/720P

    5 . Play mode Power on , single card auto loop play;classified files auto loop play; multi cards

    6 . Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

    7 . Timing open & close Per day 5 times , 7 days a week , free time

    8 . Timing play 7 days a week , free set the play program everyday



    Applications:

    Business Organizations supermarket ,  large-scale shopping malls ,  exclusive agency ,  chain shops ,  large-scale sales ,  star-rated hotels ,  restaurants ,  travel agencies , pharmacy.
    Financial Organizations

    Banks ,  negotiable securities ,  funds ,  insurance companies ,  pawnshops;

    Non-profit Organizations   Telecommunications ,  post offices ,  hospital , schools;

    Public Places subway ,  airports , stations ,  gas stations ,  toll stations ,  bookstores , parks ,  exhibition halls ,  stadiums ,  museums ,  convention centers ,  ticket agencies ,  HR market ,  lottery centers; Real Estate Property   Apartments , villas ,  offices ,  commercial buildings ,  model rooms ,  property brokers;
    Entertainments Movie theaters ,  fitness halls ,  country clubs ,  clubs ,  massage rooms , bars ,  cafes ,  Internet bars ,  beauty shops ,  golf course



    Waterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001SWaterproof 70" Outdoor floor d-standing LCD Display Screen Full HD 920 x 1080 Resolution DDW-AD7001S
