| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-ADH4302,DDW-ADH4902,DDW-ADH5502 |
| Minimum Order Quantity: | 1Set |
| Price: | negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 3-7working days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Alibaba Trade Assurance |
| Supply Ability: | 1000 set per month |
| Panel Technology: | IPS, M+ (WRGB), High Tni 110 C | Native Resolution: | 1,920 X 1,080 (FHD) |
|---|---|---|---|
| Brightness: | 2500Cd/m2 (Standard), 1,500- 5,000 Cd/m2 (Customized) | Viewing Angle (H X V): | 178x178 |
| Aspect Ratio: | 16:9 | Input: | . USB. Audio. VGA. DC 12V |
| External Control: | RS232 | Bezel Color: | Black |
| Bezel Width: | 8.8 Mm (T/B/L/R) | Special Features: | Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving,Source Selection,Brightness/Contrast/Backlight Select |
| Operation Temperature: | 0℃ To 50℃ | Operation Humidity: | 10% To 80% |
| Power Supply: | AC 100-240 V, 50/60 Hz | ||
| High Light: | 1920x1080 Lcd Digital Signage Screen,2500cd/m2 Lcd Digital Signage Screen,RS232 LCD Digital Signage Displays |
||

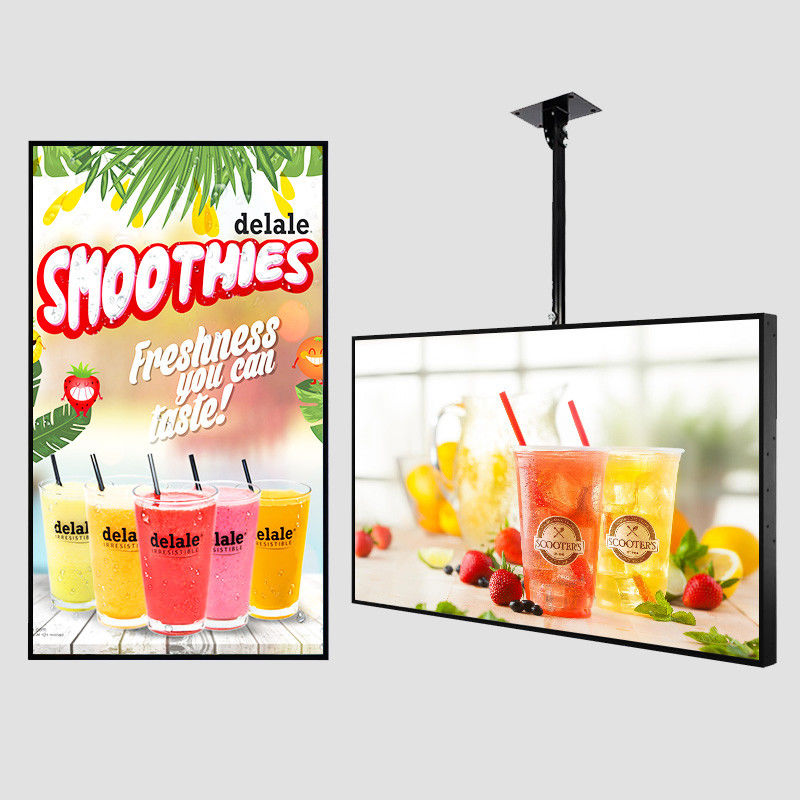

Ceiling ultral thin high brightness semi outdoor lcd digital signage screen
>>Key features:
1. Panel size:43″,49″,55″optional.
2. 2500nits standard brightness, 1,500- 5,000nits brightness optional, automatic brightness adjustment.
3. Ultra-narrow frame design, the narrowest bezel is 0.88mm, 85.3 mm ultra-thin thickness.
4. Variety interfaces: . USB, Audio, VGA, DC12V.
5. Special features:temperature sensor, smart energy saving, source selection.
6. Working temperature: 0°C~50°C.Working Humidity: 10%-80%.
7. Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant.
8. The installation has wall mounted and floor standing optional; This is the wall mounted style.
>>Specifications
| Model | 55 inch | 49 inch | 43inch | |||
| PANEL | Panel Technology | IPS, M+ (WRGB), high Tni 110 C | ||||
| Aspect Ratio | 16:9 | |||||
| Native Resolution | 1,920 x 1,080 (FHD) | |||||
| Brightness | 2,500 Cd/m2 (Standard), 1,500- 5,000 Cd/m2 (Customized) | |||||
| Contrast Ratio | 1000:1 | |||||
|
Viewing Angle (H x V) |
178x 178 | |||||
| Surface Treatment | AGLR (Haze 3%) | |||||
| Lifetime | 50,000 Hrs | |||||
| Operation Hours | 24 Hrs | |||||
| Orientation | Landscape & Portrait | |||||
| CONNECTIVITY | Input | . USB. Audio. VGA. DC 12V | ||||
| Output | / | |||||
| External Control | RS232 | |||||
|
PHYSICAL SPECIFICATION
|
Bezel Color | Black | ||||
| Bezel Width | 8.8 mm (T/B/L/R) | |||||
| Monitor Dimension (W x H x D) | 1,232.3 x 703.8 x 85.3 mm | 1,093.2 x 623.5 x 85.3 mm | 965.0 x 553.0 x 85.3 mm | |||
|
Weight (Monitor Only) |
27.5 kg | 25.5 kg | 23.5 kg | |||
| VESAim Standard Mount Interface | 400x 500 mm | 400x 300 mm | 400x 300 mm | |||
|
SPECIAL FEATURES |
Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving,Source Selection,Brightness/Contrast/Backlight Select | |||||
|
ENVIRONMENTAL CONDITIONS |
Operation Temperature | 0℃ to 50℃ | ||||
|
Operation Humidity
|
10% to 80% | |||||
| Power Supply | AC 100-240 V, 50/60 Hz | |||||
| Accessories Basic | Remote Controller (No Batteries Included), Power Cord, IR Receiver (w/ Ambient Light Sensor) | |||||
*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*Payment terms: Bank T/T 50% deposit, balance before delivery;
*Alibaba trade assurance order welcome
*All technical specification, designs and photos subject to change without notice
