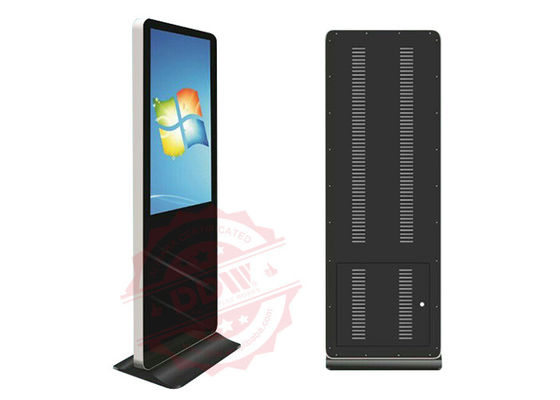

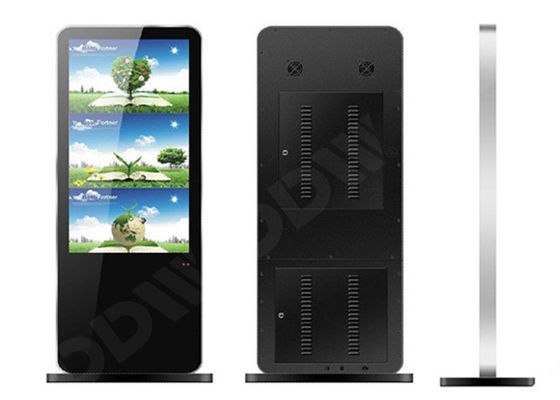

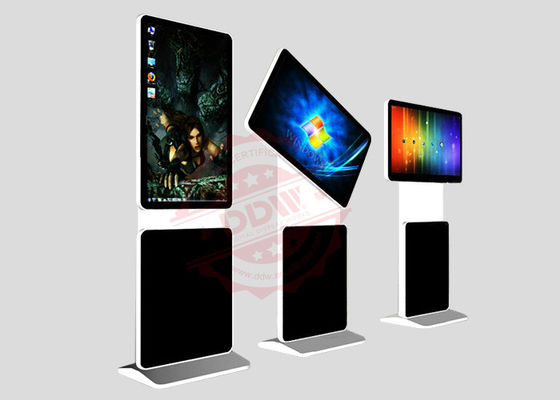

Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom

Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom

    • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
    • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
    • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
    • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
    • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
  • Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom

    Product Details:

    Place of Origin: China
    Brand Name: DDW
    Certification: CE/CCC/FCC/ROHS/ISO9001
    Model Number: DDWIWB-4201IR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 3-7working days upon payment
    Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Physical Resolution: 1920x1080 Display Colors: 16.7M
    Luminance(nits): 500cd/m2 Backlit Type: WLED
    Response Time: 6ms Life(hrs): More Than 60000
    Max.Consumption: ≤200W Control Method: TCP/IP , APP , WIFI , Software Control , IR
    OSD Language: Multiple Languages

    1920x1080 FHD 42 Inch electromagnetic interactive whiteboard digital board for classroom



    Display mode

    Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .

    Support rich display resolution

    1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .





    Key features



    1 . LED Backlight , FHD 1920x1080 resolution

    2 . Seamless designed aluminum alloy frame

    3 . Android OS IP/WIFI remote networkcontrol

    4 . High contrast 700nits brightness

    5 . High brightness 2000nits ,1500nits can be customized





    Specifications



    Panel type TFT-LCD
    Diagonal 42‘’
    Aspect Ratio 16/9
    Physical Resolution 1920x1080
    Display Colors 16.7M
    Viewing Angle H178º/ V178º
    Luminance(nits) 500cd/m2
    Contrast 1100/1
    Backlit type WLED
    Response time 6ms
    Life(hrs) more than 60000
    RJ45(network port) 1
    USB 1(USB 2.0)
    SD 1(Capatible MMC/MS)
    CF 1
    VGA Optional
    DVI Optional
    HDMI Optional
    Power Supply AC100~250V 50/60 HZ
    Max.Consumption ≤200W
    Standby Consumption ≤3W
    Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
    Color System Support PAL/NTSC/SECAM
    OSD Language Multiple languages
    Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
    Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
    Image format support JPEG/BMP/TIFF/PNG/GIF
    Audio format support Wave/MP3/WMA/AAC
    Splicing Display Support
    Working Temperature 0℃-50℃
    Working Humidity 10%-85%
    Storage Temperature 0℃-50℃
    Storage Humidity 5%-95%
    Cooling Low noise fans
    Application Condition Indoor/Semi Outdoor
    Material Cold-roll steel SPCC
    Frame Color Black/White/Customization
    Mount/Installation type Standby/Wall mount with wheel rack
    Dimension with base 1880x632x80mm







    Schedule

    The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .



    Program encryption

    Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )



    Split-screen display

    Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause



    Timing management

    Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



    Log management

    Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .

    Applications

    Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
    Financial Organizations

    Banks , negotiable securities , funds , insurance companies , pawnshops

    Non-profit Organizations Telecommunications , post offices , hospital , schools

    Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
    Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course



    Competitive Advantage

    Kiosk LCD Advertising , a large stand advertising equipment,which makes it perfect and luxury for advertising .

    All stand machine can install wheel . It depends on your requirements . If we done this,the machine can move around easily .

    Electromagnetic Interactive Digital Signage 1920x1080 FHD Board For ClassroomElectromagnetic Interactive Digital Signage 1920x1080 FHD Board For ClassroomElectromagnetic Interactive Digital Signage 1920x1080 FHD Board For ClassroomElectromagnetic Interactive Digital Signage 1920x1080 FHD Board For Classroom
