| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-AD5001SNO |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 20working days upon payment |
| Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance |
| Supply Ability: | 300 set per month |
| Maximum Resolution: | 1920x1080 | Display Color: | 1.073G(10bits/color) |
|---|---|---|---|
| Life(hrs): | >60000(hrs) | Average Brightness: | 1500-2500cd/mxm |
| Maximum Power Consumption: | 3600W | Standby Power Consumption: | <5W |
| Working Temperature: | 0－ 40 ℃ | Storage Temperature: | -10℃ — 50℃ |
| Installation: | Flood-standing , Wall Mounted Or Customized | ||
| High Light: | digital display signs outdoor,kiosk digital signage |
||

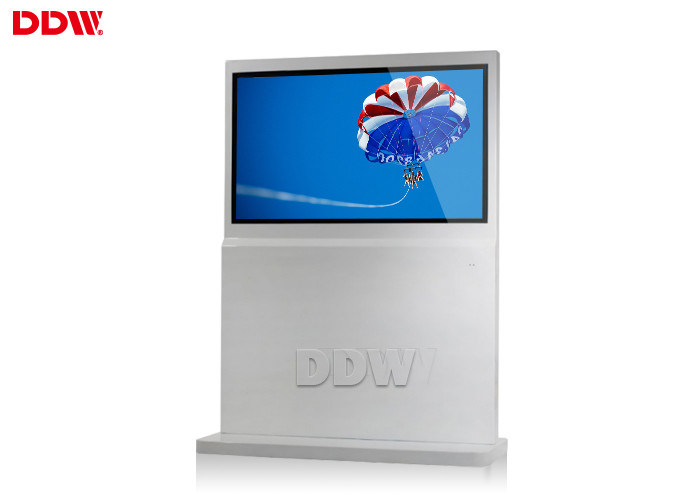

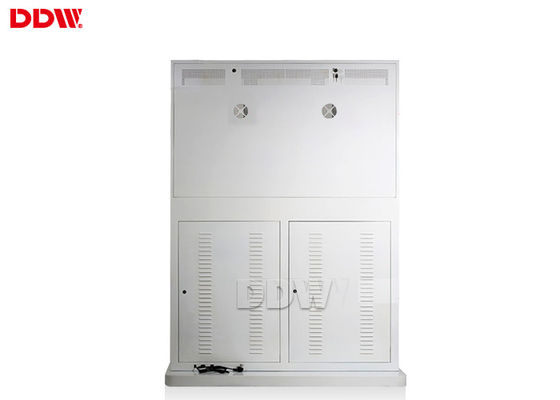

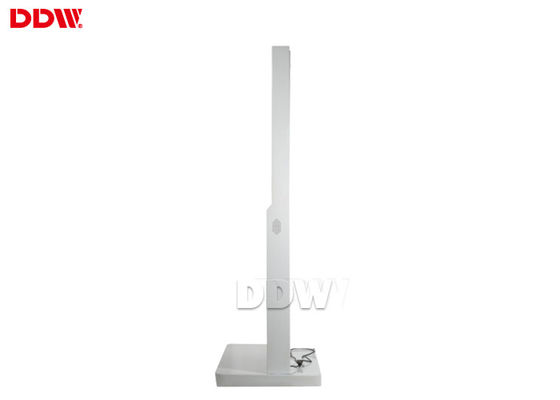

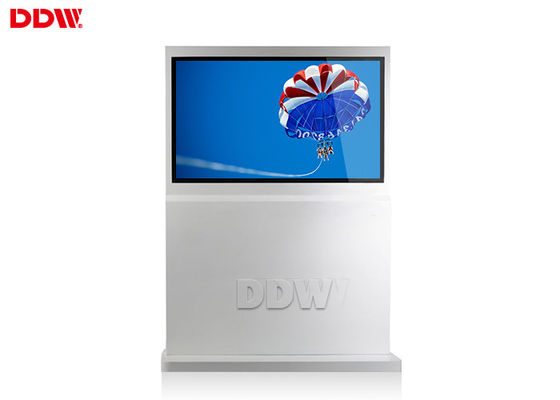

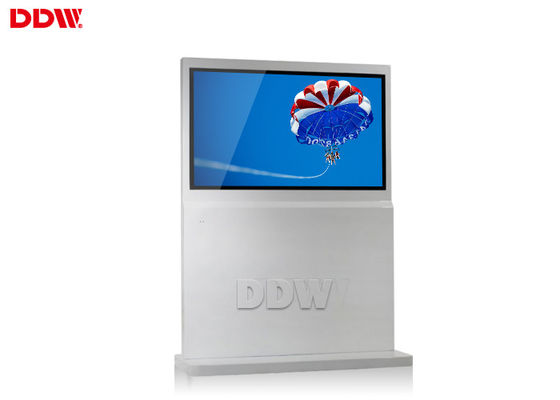

55” 1500nits high brightness LCD high bright monitor 1920x1080 for outdoor DDW-AD5501SNO
1, 55 inch high brightness LCD Module ,1500nits brightness , 1920x1080 resolution , 4000/1 contrast with LED backlight , Sunlight viewable
2, Patented LED backlight modular components + constant current source drive components
3, Patented cooling structure combination of high-quality fan assembly
4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input , 3G(optional)
5, Automatic ambient light adjustment control (extended life and energy efficiency)
6, Built-in power adapter combination AC220V/DC
7, IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8, Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
Functions
1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2, Audio format Wave/MP3/WMA/AAC
3, Image format JPEG/BMP/TIFF/PNG/GIF
4, Image resolution 480P/720P
5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards
6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7, Timing open & close:Per day 5 times , 7 days a week,free time
Parameters
| LCD parameters | Model No. | DDW-AD5501SNO |
| display | 55" LED | |
| Contrast Ratio | 16/9 | |
| machine size | 1561x883x56 | |
| Display area | 1298x764 | |
| Maximum resolution | 1920x1080 | |
| Pixel Pitch(mm) | 0.651×0.651mm | |
| Display color | 1.073G(10bits/color) | |
| Life(hrs) | >60,000(hrs) | |
| average brightness | 1500-2500cd/mxm | |
| contrast | 3500/1 | |
| Viewing angle | H178°/V178° | |
| Power supply | AC100~240V 50 /60 HZ | |
| Maximum power consumption | 3600W | |
| Standby power consumption | <5W | |
| Working temperature | 0－ 40 ℃ | |
| Storage temperature | -10℃ — 50℃ | |
| Installation | flood-standing , wall mounted or customized | |
| IP65 waterproof case | Using 1.5mm galvanized steel | |
| Surface spray powder (anti-corrosion, anti-rust) | ||
| Outdoor anticorrosive over 7 years | ||
| AR anti-reflective glass 3 + 3mm plastic folder | ||
| Display screen glass | Light transmittance 97% | |
| Reflectivity is less than 3% | ||
| Explosion-proof, waterproof, fireproof | ||
| UV protection 99% | ||
| Display screen | Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 | |
| High brightness 1500-2000 cd/㎡ | ||
| Full hd 1920x1080 | ||
| Industrial power supply | ||
| automatically adjust the brightness | ||
| Electronic control system | Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc . | |
| Cooling system | Intelligent heating and air-cooling system | |
| meet the environment of -20℃ — 55 ℃ | ||
| LCD display is not blackening | ||
| Patented cooling system ensures that the LCD screen without blackening in direct sunlight | ||
| Product assembly and aging test | IP65 waterproof test | |
| High and low temperature test | ||
| Simulated solar radiation test | ||
| Aging test | ||
| Packaging | Wooden packaging, sea/air/express(transportation standards) | |
Applications
| Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
| Financial Organizations | Banks , negotiable securities , funds , insurance companies , pawnshops , Non-profit Organizations , Telecommunications , post offices , hospital , schools |
| Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
