82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits

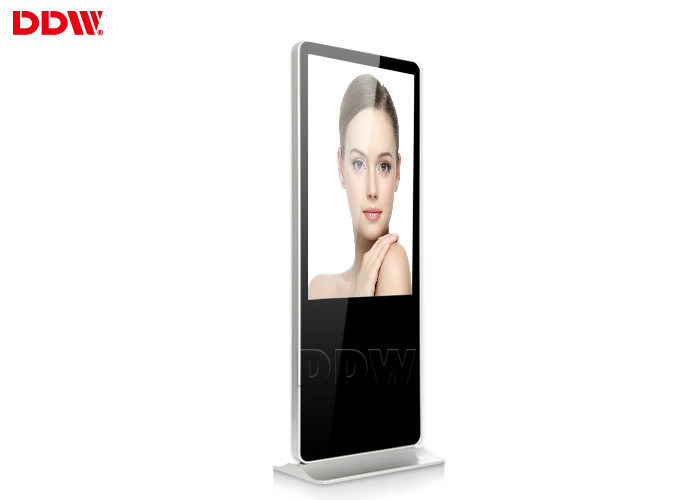

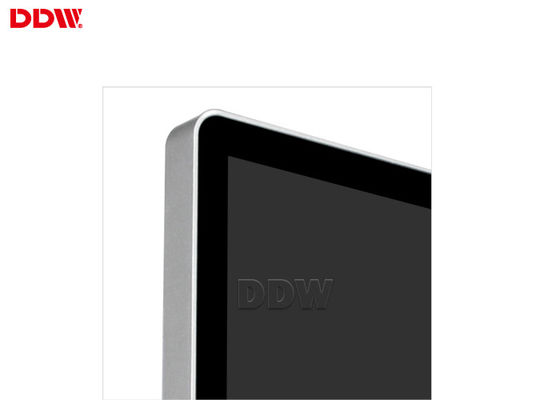

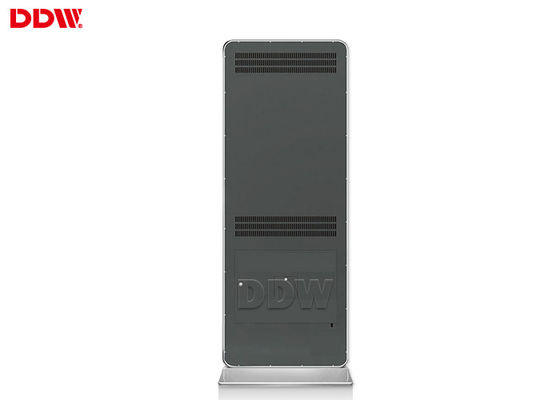

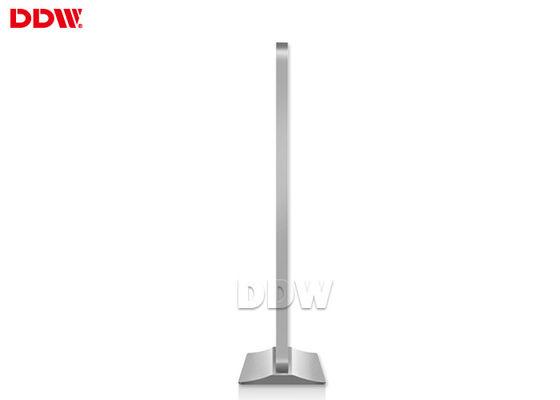

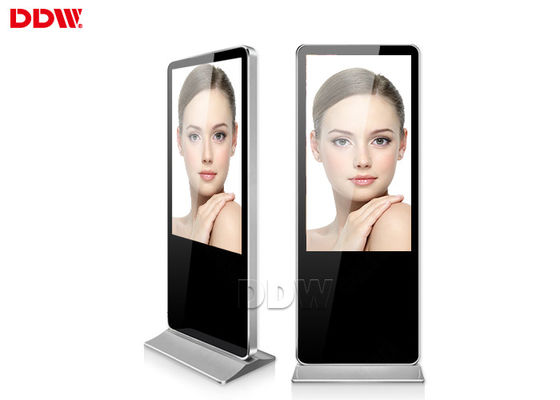

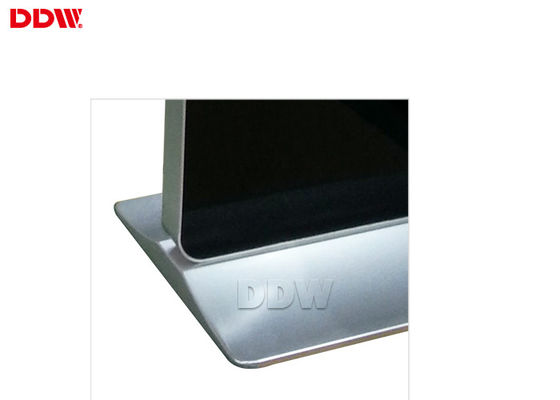

82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits

    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
    • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
  • 82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-AD8201S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 3-7working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Diagonal: 82 Inch Certificate: CE, Rohs, CCC , FCC , ISO9001
    Display Colors: 16.7M Viewing Angle: H178º/ V178º
    Luminance(nits): 500cd/m2 Panel Brand: Samsung DID LG IP
    Backlit Type: WLED Control Method: TCP/IP , APP , WIFI , Software Control , IR
    OSD Language: Multiple Languages Physical Resolution: 1920x1080

    82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits



    Features Highlights:

    1 . Video formats MP4(AVI:DIVX/XVID) , MPG2(DVD:VOB/MPG2) , MPEG1 (VCD DAT/MPG1)

    2 . Audio formats MP3

    3 . Advanced IR touch technology , support single-touch technology

    4 . interactive touch for widely using

    5 . Adopt memory card to update ad files

    6 . SD card or USB port at one player;

    82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits

    Description:

    1 . Outer shell is made by extra quality metal material, Color for Outer Shell Shinning Black.

    2 . With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.

    3 . Full New LG or Samsung ( Made in Korea) A Grade Standard LCD Panel.

    4 . Support SD card or USB port at one player; it is optional for VGA Port, S-video port and HDMI port.

    5 . Safely locking system function to avoid flash memory card and advertising playing contents being taken away , also can be protected by password.

    6 . With USB update feature; support functions between the card and card copying files (such as CF card to SD card , or SD to CF card etc.); support U-copy , conveniently and quickly updating target content , more details please visit user manual.

    7 . Playing advertising program automatically and circular; support media format JPEG (JPG) , MP3 , AVI , MPEG1 , MPEG2 , MPEG4 , VOB and DIVX (5.0/6.0).

    8 . Playlists support functions , can set different folders , copy all target files to those different folders , system would default to play your target file one by one.

    9 . Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.

    10 . Build-in clock and calendar function in the system of player.

    11 . Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

    12 . Support shockproof and dustproof function.





    Specifications



    Technical Parameter for LCD Panel Panel Size 82 inch real color LCD screen
    Aspect Ratio 16:9
    Max. Resolution 1920x 1080
    Number of Color 16.7M
    Brightness 500cd/m2
    Contrast Ratio 1500:1
    Responsive Time 8ms
    Panel Life above 50000 hours
    Storage Medium Flash memory card 2gb to 36gb for the capacity
    Support Ad files Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
    Audio formats MP3
    Photo formats JPG
    OSD Language English ,  Chinese ,  French ,  German ,  Italian ,  Spanish , Arabic
    Audio output stereo L/R ,  5Wx2 ,  8Ω
    Power supply AC 110V - 240V , 50/60HZ
    Storage Temperature -7 to 65 Celsius degree
    Normal Working Temperature -5 to 65 Celsius degree





    Infrared touchscreen Panel Parameters:

    Touch Max Resolution 4096×4096
    Transparency > 90%, Up to 100%
    Scanning Speed >50Scans/S
    Response Speed <12ms
    Touch Type Horizontal Multi Dot Touch Screen (Vertical way is optional)
    Touch precision 0.625mm
    Minimum Touch object ≥5mm
    Touch Intensity Over 60,000,000 Single Point Touch
    Operation System DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
    perating Voltage DC 5V ±5%
    Power Supply Keyboard Serial Interface
    Power <1W (Current<200mA)
    Communication RS-232 Interface Port, USB Port
    Vandal-Proof Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
    Temperature Operating -41°C ~70°C Temperature Storage: -50°C ~85°C
    Altitude 3000m
    Noise None
    Life Time >10 Year



    Applications:

    Business Organizations Supermarket ,  large-scale shopping malls ,  exclusive agency ,  chain shops ,  large-scale sales ,  star-rated hotels ,  restaurants ,  travel agencies ,  pharmacy.
    Financial Organizations

    Banks ,  negotiable securities ,  funds ,  insurance companies , pawnshops;

    Non-profit Organizations  Telecommunications ,  post offices , hospital ,  schools;

    Public Places subway ,  airports ,  stations, gas stations ,  toll stations ,  bookstores , parks , exhibition halls ,  stadiums ,  museums ,  convention centers , ticket agencies ,  HR market ,  lottery centers; Real Estate Property  Apartments , villas ,  offices ,  commercial buildings ,  model rooms , property brokers;
    Entertainments Movie theaters ,  fitness halls ,  country clubs ,  clubs ,  massage rooms ,  bars ,  cafes ,  Internet bars ,  beauty shops ,  golf course



    82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits82 inch Real Color Lcd Tft Touch Screen Informational Kiosk 500 nits
