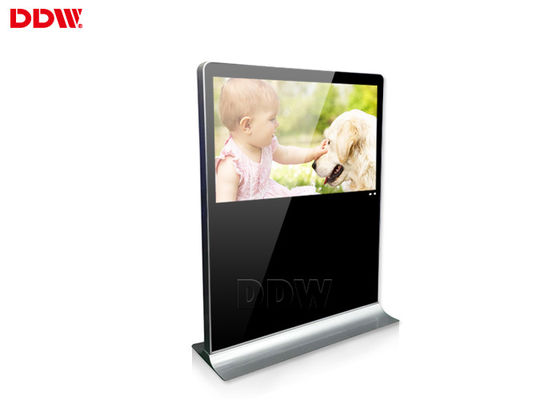

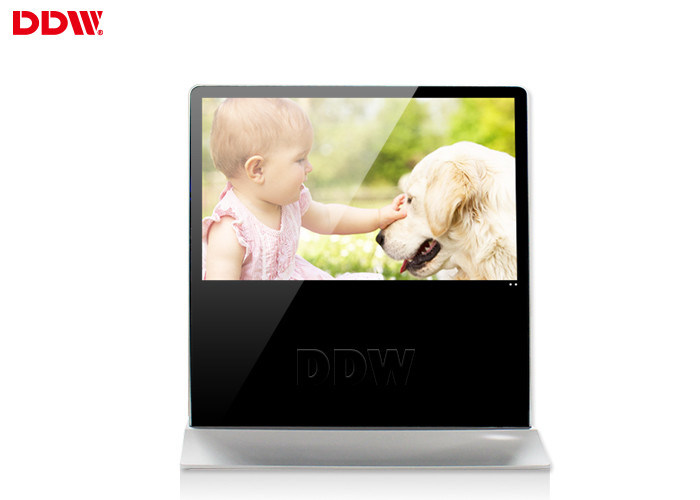

IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits

IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits

    • IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits
    • IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits
    • IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits
    • IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits
  • IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC , IP65
    Model Number: DDW-AD4901S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Foam+carton,customized wood pallet pack
    Delivery Time: 20working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Type: TFT Product Name: Lcd Digital Signage
    Storage Medium: Flash Memory Card(2gb To 36gb For The Capacity) Audio Output: Stereo L/R, 5Wx2, 8Ω
    Storage Temp: -7 To 65 Celsius Degree Keyword: Digital Signage
    Interface: CF/SD/MMC/MS/XD And USB Certificate: 3C/CE/FCC/RoHS
    HS CODE: 8528591090

    IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits





    49” high brightness Double sided digital totem functions

    1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

    2, Audio format Wave/MP3/WMA/AAC

    3, Image format JPEG/BMP/TIFF/PNG/GIF

    4, Image resolution 480P/720P

    5,Play mode:Power on , single card auto loop play classified files auto loop play multi cards

    6,Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

    7,Timing open  close:Per day 5 times , 7 days a week,free time

    8, Timing play 7 days a week,free set the play program everyday





    Key features

    1, 49" high brightness Samsung LCD Module

    2, Special designed LED backlight modular + constant current source drive components

    3, Special designed fan cooling system with high-quality fans

    4, IP65 grade all weatherproof dustproof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC

    5, Fan cooling system, and A/C cooling &heating optional

    6, i5 computer version, Quad core CPU,8GB RAM, 500GB HDD,Windows OS 7/8/10 optional

    7, Integrated with light sensor, auto temperature sensor, warning modules, more modules optional

    8, Adapt import Akesu paint powder from Germany, 5-7 years no fade, acid and alkali, professional anti-corrosion more than 5 years

    9, LCD protect function: Auto Shut off function upon internal temperature reaches 70℃

    10, Integrated with Lightning protection, leakage protection switch, timer

    11, Adapt Taiwan Meanwell power, A/C 100-240V, 50/60Hz

    12, Easy maintenance enclosure plus built-in anti-theft locks

    13, Working temperature: -40℃ - 50℃

    14, Different enclosures can be customized exactly according to client requirements





    Specifications:

    General Specification
    Material of shell

    3mm Aluminium,1.5mm mild steel, 5mm temperglass,

    Industrial high level Podwer coating.

    Certification FCC,RoHS,CE
    Interface USB,HDMI,VGA,…..
    Guarantee 1 year
    Speaker 10Wx2
    Storage Medium Flash memory card(2gb to 36gb for the capacity)
    Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
    Audio formats MP3
    Photo formats JPG,bmp
    Audio output stereo L/R, 5Wx2, 8Ω
    Storage Temp. -7 to 65 Celsius degree
    Normal Working Temp. -5 to 65 Celsius degree
    Language The default is Chinese and English, others need to be confirmed
    Power Supply AC 110V - 240V, 50/60HZ
    Specification of LCD display
    Size of Screen 49'' 55'' 60'' 65'' 70'' 72''
    Ratio 16:9
    Display Area 1210mm(H)x 682mm(V)
    Dot Pitch 0.485mm (H) x 0.485mm (W)
    Max Resolution 1920x1080
    Number of Colors 16.7m
    Brightness 500cd/m2
    Response Time 8s
    Contrast 1000:1
    Viewing Angle 178°
    Using Life 50000 hours
    Accessories
    AC power line 1pcs
    Remote Controller 1pcs
    Base 1pcs
    Warranty Card 1pcs
    Flash Memory Card 1pcs
    Security Keys 1pcs
    User Manual 1pcs



    Applications

    Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
    Financial Organizations

    Banks , negotiable securities , funds , insurance companies , pawnshops

    Non-profit Organizations Telecommunications , post offices , hospital , schools

    Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
    Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course




    IP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nitsIP65 Waterproof outdoor Digital Signage Kiosk Touch Screen 49 Inch free standing DDW-AD4901S 500nits
