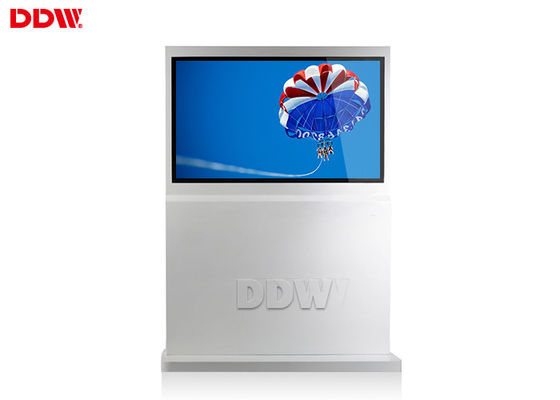

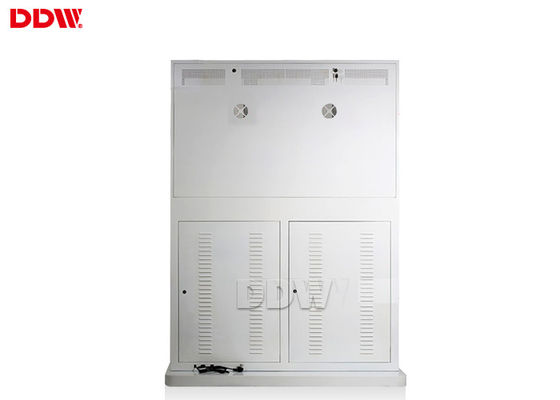

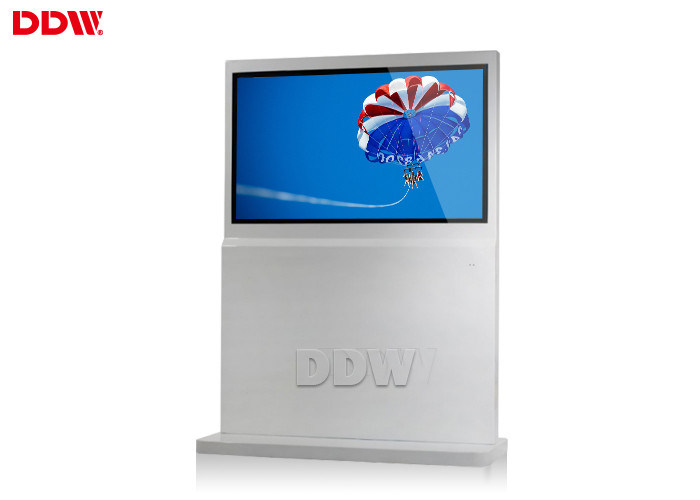

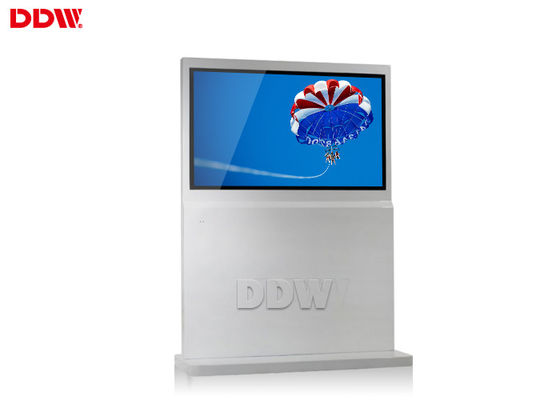

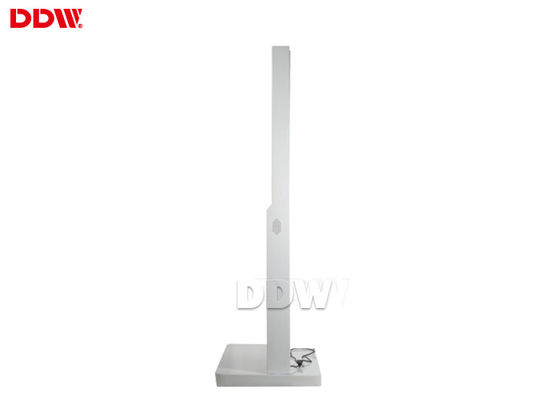

Indoor Free Standing Digital Signage software freeware 65” LCD display 500cd / m2 DDW-AD6501S

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-AD6501S

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Carton and Full wood box packing

Delivery Time: 3-7working days upon payment

Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance

Supply Ability: 1000 set per month

Get Best Price
Product Details
Highlight:

floor standing digital signage

,

stand alone digital signage

Name:
65 Inch Interactive Digital Signage
Display Colors:
16.7M 8bits
Luminance(nits):
500cd/m2
Backlight:
WLED
Response Time:
6ms
Life(hrs):
More Than 60000hrs
Panel Type:
A+ Grade TFT-LCD
Mount Type:
580x400(VESA) , Both H&V Mount
Control Method:
TCP/IP , APP , WIFI , Software Control , IR
OSD Language:
Multiple Languages
Multi Signal Function:
Support
Name:
65 Inch Interactive Digital Signage
Display Colors:
16.7M 8bits
Luminance(nits):
500cd/m2
Backlight:
WLED
Response Time:
6ms
Life(hrs):
More Than 60000hrs
Panel Type:
A+ Grade TFT-LCD
Mount Type:
580x400(VESA) , Both H&V Mount
Control Method:
TCP/IP , APP , WIFI , Software Control , IR
OSD Language:
Multiple Languages
Multi Signal Function:
Support
Product Description

Indoor Free Standing Digital Signage software freeware 65” LCD display 500cd / m2 DDW-AD6501S





Applications

Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations

Banks , negotiable securities , funds , insurance companies , pawnshops

Non-profit Organizations Telecommunications , post offices , hospital , schools

Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course






Key features

1 . LED Backlight , FHD 1920x1080 resolution

2 . Seamless designed aluminum alloy frame

3 . Android OS IP/WIFI remote networkcontrol

4 . High contrast

5 . High brightness 500nits ,1500nits can be customized

6 . Locking system for anti-thieves , prevented the storage devices ( SD/CF cards ) from being stolen



Specifications

Panel type TFT-LCD
Diagonal 65”
Aspect Ratio 16/9
Physical Resolution 1920x1080
Display Colors 16.7M
Viewing Angle H178º/ V178º
Luminance(nits) 500cd/m2
Contrast 2000/1
Backlit type WLED
Response time 6ms
Life(hrs) more than 60000
RJ45(network port) 1
USB 1(USB 2.0)
SD 1(Capatible MMC/MS)
CF 1
VGA Optional
DVI Optional
Optional
Power Supply AC100~250V 50/60 HZ
Max.Consumption ≤300W
Standby Consumption ≤5W
Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
Color System Support PAL/NTSC/SECAM
OSD Language Multiple languages
Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Image format support JPEG/BMP/TIFF/PNG/GIF
Audio format support Wave/MP3/WMA/AAC
Splicing Display Support
Working Temperature 0℃-50℃
Working Humidity 10%-85%
Storage Temperature 0℃-50℃
Storage Humidity 5%-95%
Cooling Low noise fans
Application Condition Indoor/Semi Outdoor
Material Cold-roll steel SPCC
Frame Color Black/White/Customization
Mount/Installation type Standby/Wall mount with wheel rack



Display mode

Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .

Support rich display resolution1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .



Schedule

The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .



Program encryption

Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )



Split-screen display

Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause



Timing management

Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



Log management

Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .
