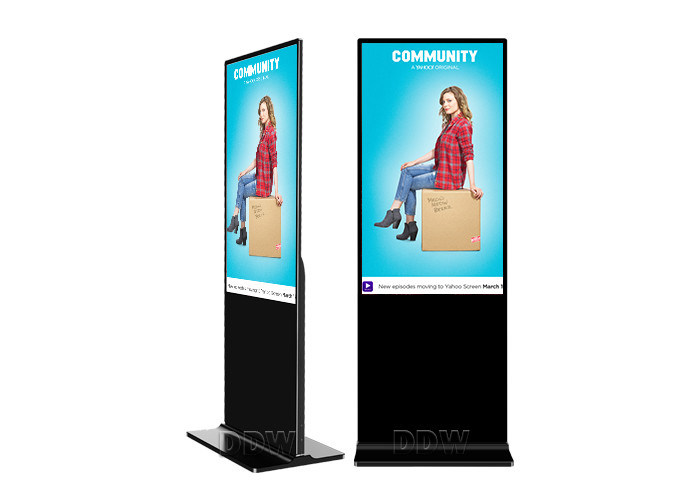

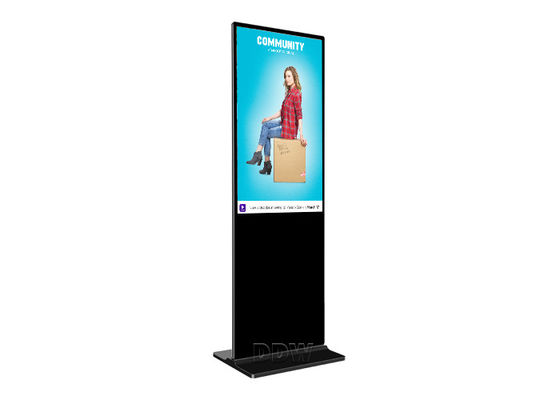

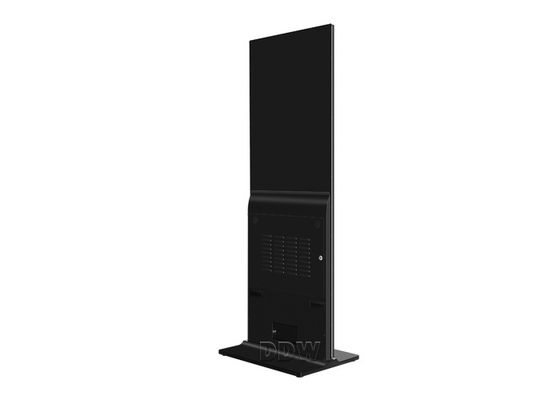

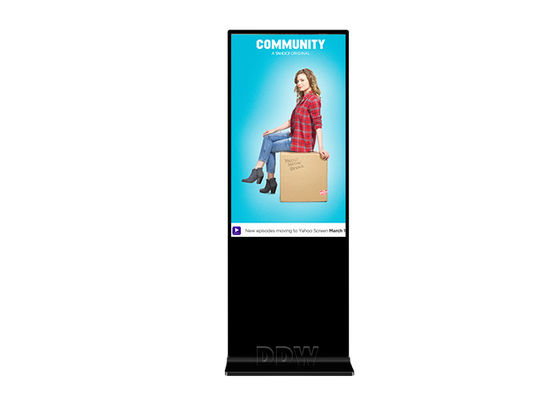

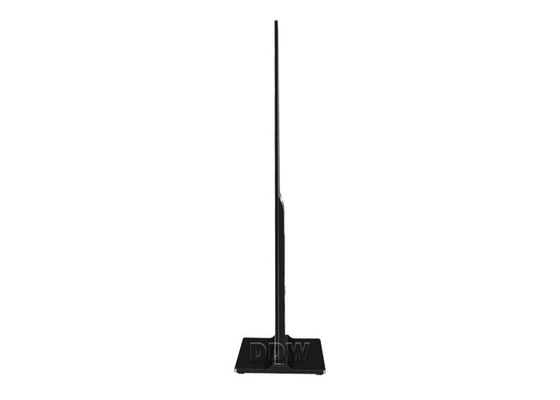

50” large Free Standing kiosk advertising Digital Signage format touch screen for security monitoring center

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-AD5001SN

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Carton and Full wood box packing

Delivery Time: 3-7working days upon payment

Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance

Supply Ability: 1000 set per month

Get Best Price
Product Details
Highlight:

free standing digital display

,

stand alone digital signage

Physical Resolution:
1920x1080
Display Colors:
16.7M
Luminance(nits):
500cd/m2
Backlit Type:
WLED
Response Time:
6ms
Life(hrs):
More Than 60000
Panel Brand:
LG
Contrast:
4000/1
Input Voltage:
AC 110V~240V
Control Method:
TCP/IP , APP , WIFI , Software Control , IR
OSD Language:
Multiple Languages
Physical Resolution:
1920x1080
Display Colors:
16.7M
Luminance(nits):
500cd/m2
Backlit Type:
WLED
Response Time:
6ms
Life(hrs):
More Than 60000
Panel Brand:
LG
Contrast:
4000/1
Input Voltage:
AC 110V~240V
Control Method:
TCP/IP , APP , WIFI , Software Control , IR
OSD Language:
Multiple Languages
Product Description



50” interactive digital signage large format touch screen display for security monitoring center 1920x1080 DDW-AD5001SN







Main Function

  1. Support 5 groups of auto power-on/off time setting one day or 7 days in one week , automatically play and non-stop replay within the pre-set time frame.
  2. No DVD style mechanical movement , hence more durable and suitable for long-hour advertising playing.
  3. Built-in CF and SD card reader , support CF/SD/MS/MMS/XD card and USB drive , using CF and SD card as the source of programming , playing with high stability
  4. Update/upload contents of the memory card (or built-in memory) by simply inserting an USB flash drive , no need to take out of the memory card
  5. AUTO/NTSC/PAL video playing format is optional
  6. Playlists support functions , can set different folders , copy all target files to those different folders , system would default to play your target file one by one
  7. Capable of setting different kinds of rolling caption on the top , bottom , sides of the screen
  8. Built-in clock and calendar function in the system of player
  9. OSD Language , Chinese , English , Russian , French , German , Italian , Spanish , Portuguese , Swedish , Danish , Korean , Japanese etc







Key features



1 . LED Backlight , FHD 1920x1080 resolution

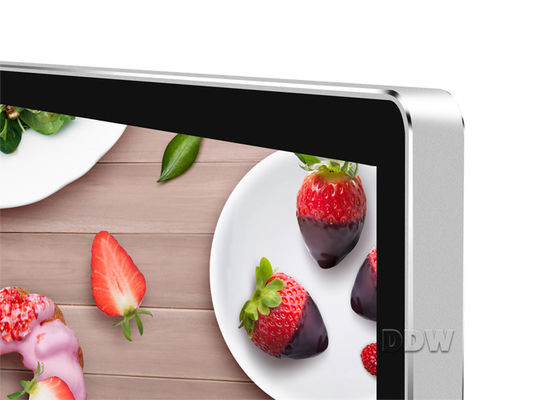

2 . Seamless designed aluminum alloy frame

3 . Android OS IP/WIFI remote networkcontrol

4 . High contrast 700nits brightness

5 . High brightness 2000nits ,1500nits can be customized



Specifications



Panel type TFT-LCD
Diagonal 50”
Aspect Ratio 16/9
Physical Resolution 1920x1080
Display Colors 16.7M
Viewing Angle H178º/ V178º
Luminance(nits) 500cd/m2
Contrast 1100/1
Backlit type WLED
Response time 6ms
Life(hrs) more than 60000
RJ45(network port) 1
USB 1(USB 2.0)
SD 1(Capatible MMC/MS)
CF 1
VGA Optional
DVI Optional
Optional
Power Supply AC100~250V 50/60 HZ
Max.Consumption ≤200W
Standby Consumption ≤3W
Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
Color System Support PAL/NTSC/SECAM
OSD Language Multiple languages
Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Image format support JPEG/BMP/TIFF/PNG/GIF
Audio format support Wave/MP3/WMA/AAC
Splicing Display Support
Working Temperature 0℃-50℃
Working Humidity 10%-85%
Storage Temperature 0℃-50℃
Storage Humidity 5%-95%
Cooling Low noise fans
Application Condition Indoor/Semi Outdoor
Material Cold-roll steel SPCC
Frame Color Black/White/Customization
Mount/Installation type Standby/Wall mount with wheel rack
Dimension with base 1880x632x80mm



50” large Free Standing kiosk advertising Digital Signage format touch screen for security monitoring center 050” large Free Standing kiosk advertising Digital Signage format touch screen for security monitoring center 150” large Free Standing kiosk advertising Digital Signage format touch screen for security monitoring center 250” large Free Standing kiosk advertising Digital Signage format touch screen for security monitoring center 3





Display mode

Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .

Support rich display resolution

1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .



Schedule

The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .



Program encryption

Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )



Split-screen display

Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause



Timing management

Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



Log management

Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .





Applications

Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations

Banks , negotiable securities , funds , insurance companies , pawnshops

Non-profit Organizations Telecommunications , post offices , hospital , schools

Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars  , cafes , Internet bars , beauty shops , golf course





Competitive Advantage

Kiosk LCD Advertising , a large stand advertising equipment,which makes it perfect and luxury for advertising .

All stand machine can install wheel . It depends on your requirements . If we done this,the machine can move around easily .
