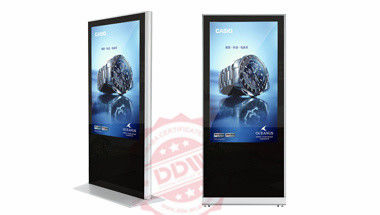

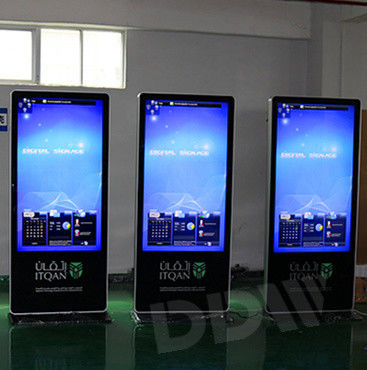

70” High brightness 2000 nits stand alone digital signage billboard with software licence

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-AD7001SN
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 3-7working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 1000 set per month
Detail Information
Physical Resolution: 1920x1080 Display Colors: 16.7M
Luminance(nits): 500cd/m2 Backlit Type: WLED
Response Time: 8ms Life(hrs): More Than 60000hrs
Control Method: TCP/IP , APP , WIFI , Software Control , IR Power Supply: AC100~250V 50/60 HZ
Frame Material: SPCC/AL/Acrylic , Tempered Glass , Touch Screen Available OSD Language: Multiple Languages
High Light:

digital display signs outdoor

,

freestanding digital signage


Product Description

High brightness 2000 nits Interactive LCD Digital Signage billboard with software licence



Key features



1 . LED Backlight , FHD 1920x1080 resolution

2 . Seamless designed aluminum alloy frame

3 . Android OS IP/WIFI remote networkcontrol

4 . High contrast 700nits brightness

5 . High brightness 2000nits ,1500nits can be customized

70” High brightness 2000 nits stand alone digital signage billboard with software licence 0

Specifications



Panel type TFT-LCD
Diagonal 70”
Aspect Ratio 16/9
Physical Resolution 1920x1080
Display Colors 16.7M
Viewing Angle H178º/ V178º
Luminance(nits) 500cd/m2
Contrast 2000/1
Backlit type WLED
Response time 8ms
Life(hrs) more than 60000hrs
RJ45(network port) 1
USB 1(USB 2.0)
SD 1(Capatible MMC/MS)
CF 1
VGA Optional
DVI Optional
Optional
Power Supply AC100~250V 50/60 HZ
Max.Consumption ≤200W
Standby Consumption ≤3W
Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
Color System Support PAL/NTSC/SECAM
OSD Language Multiple languages
Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Image format support JPEG/BMP/TIFF/PNG/GIF
Audio format support Wave/MP3/WMA/AAC
Splicing Display Support
Working Temperature 0℃-50℃
Working Humidity 10%-85%
Storage Temperature 0℃-50℃
Storage Humidity 5%-95%
Cooling Low noise fans
Application Condition Indoor/Semi Outdoor
Material Cold-roll steel SPCC
Frame Color Black/White/Customization
Mount/Installation type Standby/Wall mount with wheel rack
Dimension with base 1880x632x80mm







Display mode

Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .

Support rich display resolution

1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .



Schedule

The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .



Program encryption

Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )



Split-screen display

Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause



Timing management

Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



Log management

Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .



70” High brightness 2000 nits stand alone digital signage billboard with software licence 1

Applications

Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations

Banks , negotiable securities , funds , insurance companies , pawnshops

Non-profit Organizations Telecommunications , post offices , hospital , schools

Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars  , cafes , Internet bars , beauty shops , golf course







Competitive Advantage

Kiosk LCD Advertising , a large stand advertising equipment,which makes it perfect and luxury for advertising .

All stand machine can install wheel . It depends on your requirements . If we done this,the machine can move around easily .
