Original 3.5 mm slim bezel samsung 55 video wall 700nits brightness DDW-LW550HN12
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Panel Size: | 55 Inch | Resolution: | 1920x1080 |
|---|---|---|---|
| Bezel Width: | 3.5mm | Brightness: | 700 Nits |
| Surface: | Anti-glare | Backlight: | LED |
| Control Method: | RS232 Control | Signal Support: | DVI//VGA/AV/YPBPR |
| Power Supply: | AC 100 ~ 240 V 50 / 60 HZ | Rsponse Time: | ＜ ＝ 6 Ms |
| Application Condition: | Retail Shopping Mall | ||
| Highlight: | control room displays,samsung commercial displays |
||
Product Description
Original 3.5 mm slim bezel samsung 55 video wall 700nits brightness DDW-LW550HN12
55 " multi display video wall main parameters
- Original Samsung commercial grade multi display video wall panel, 16:9 Samsung a-Si TFT-LCD;
- 700 nits brightness, MEGA DCR contrast;
- FHD physical resolution 1920x1080;
- Only 3.5 mm ultra narrow bezel, high quality, practical, good vision effect;
- Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
- FHD video wall unit--- High brightness, high contrast, high gamut;
- Flexible structure design ---easy installation, extensible, arbitrary combination;
- Stable performance, suitable working for a long time;
Key features:
- Support a variety of signal ports.
- Built-in splicing module, Support splice function
- Support Creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.

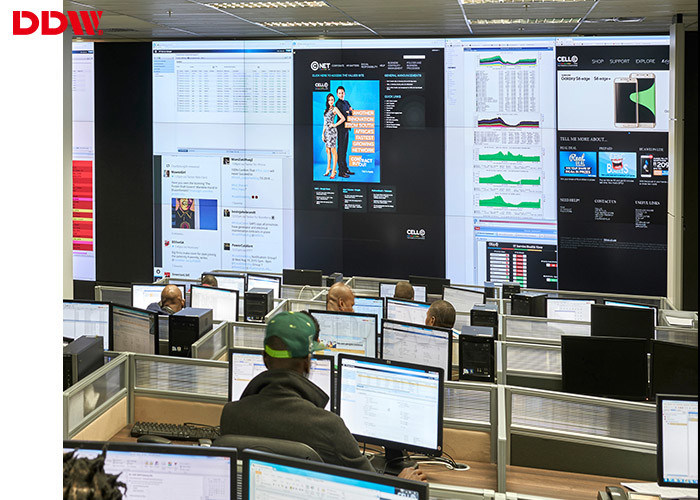

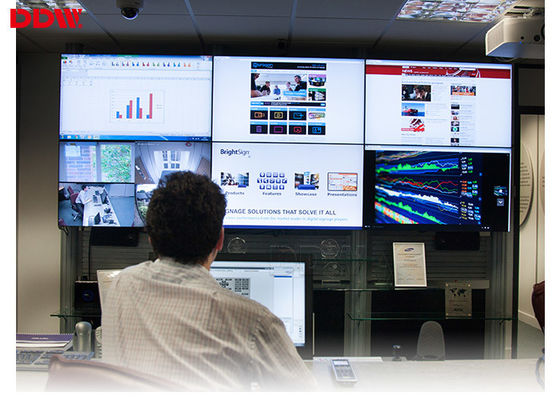

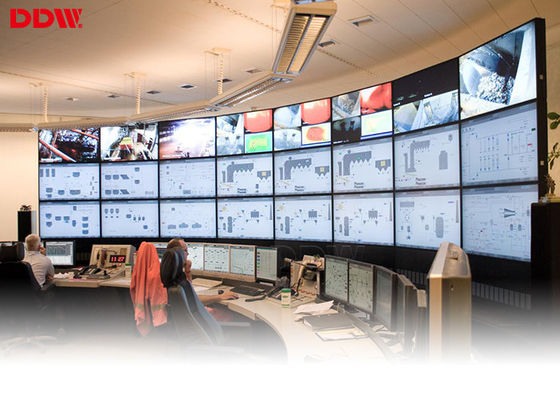

Multi display LCD video wall can be used in below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show, Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.
Specifications
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) | 1213.5x684.3x67.7mm |
| Total Bezel Width | 3.5 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | WLED |
| Luminance(nits) | 700cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| DVI-I DUAL LINK | 1 |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
