Anti Glare Control Room Displays Samsung 3x4 Video Wall 16M Color For Retail Center

Name: Anti Glare Control Room Displays Samsung 3x4 Video Wall 16M Color For Retail Center
Brand: DDW
SKU: DDW-LW460HN13
Rating: 4.7 (181 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN13

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 1,000 pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                control room displays, samsung commercial displays


Panel Size:	46inch	Resolution:	1920 X 1080
Bezel Width:	1.7mm	Color:	8Bit , 16M
Brightness:	700nits	Surface:	Anti-glare
Backlight:	LED	Control Method:	RS232 Control
Signal Support:	DVI//VGA/AV/YPBPR	Working Time Capacity:	7x24hours

Panel Size:	46inch
Resolution:	1920 X 1080
Bezel Width:	1.7mm
Color:	8Bit , 16M
Brightness:	700nits
Surface:	Anti-glare
Backlight:	LED
Control Method:	RS232 Control
Signal Support:	DVI//VGA/AV/YPBPR
Working Time Capacity:	7x24hours

Product Description

Flexible screen design Samsung 3x4 video wall display 16M color for retail center

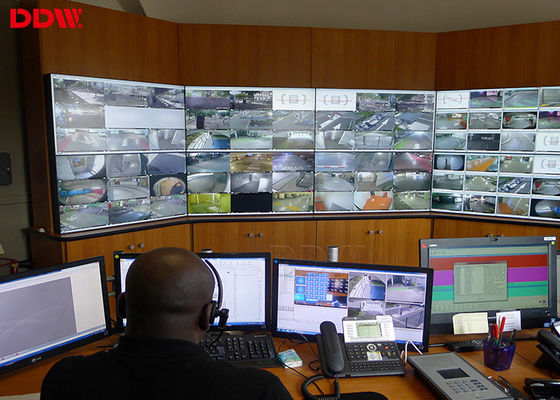

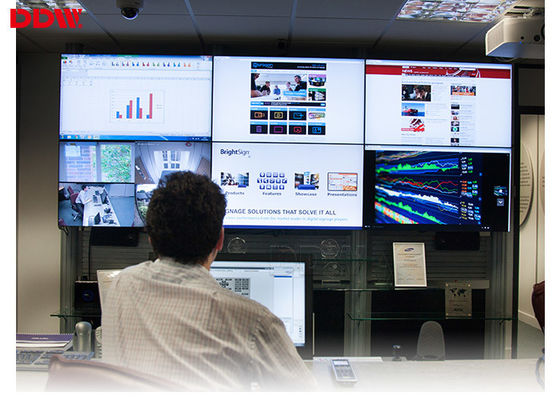

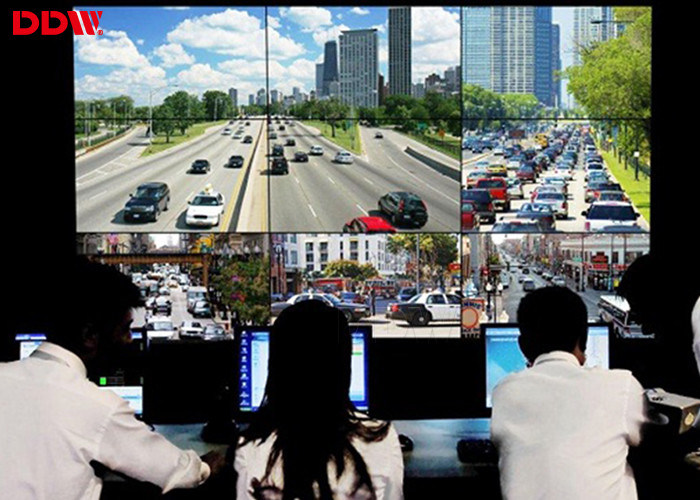

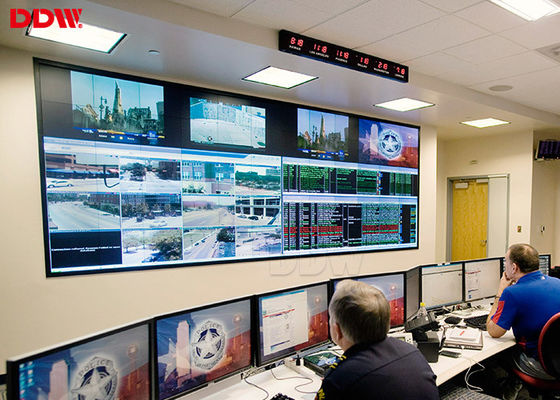

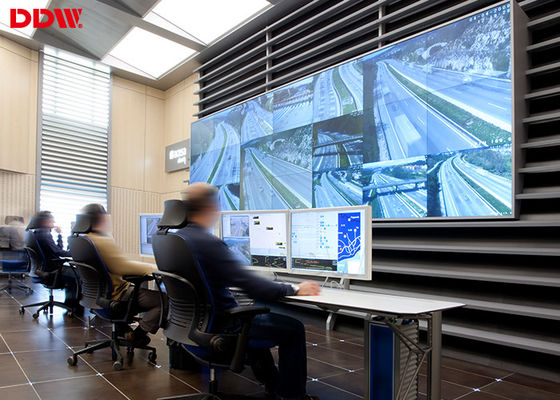

DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.

46" lcd video wall features:

Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
700nits brightness, 3500:1 contrast;
FHD physical resolution 1920x1080;
Only 1.7mm Ultra narrow bezel, high quality, practical, good vision effect;
Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
HD video wall unit--- High brightness, high contrast, high gamut;
Flexible structure design ---easy installation, extensible, arbitrary combination;
Stable performance, suitable working for a long time;

Specifications

46 inch Samsung video wall specifications
Active Screen Diagonal	46" 16:9
Bezel Width	Total: 1.7mm
Aspect Ratio	16:9
Physical Resolution	1920*1080
Backlight System	LED
Luminance(nits)	700cd/sqm
Contrast	3500:1
Viewing Angle	H 178°\|V 178°
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 220W
Power Supply	AC100~240V 50/60Hz
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing
DVI-I DUAL LINK	1
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	1
ISP IN	1
IR IN	1
CODING BUTTON	1
AC IN	AC100-240V
Color System Support	PAL/NTSC/SECAM
Control Type	IR Remote &Software Control
Menu Language	English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display	Support
Combine Display	Support combine any horizental &vertical numbers of screens and show display
	Support combine all screens together to show 1image
Solid Display	Support each screen input with separate signal
PIP/Zoom/Roaming	Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces	Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolution inputs
Dimension(WxHxD)	318.4x332x56mm
