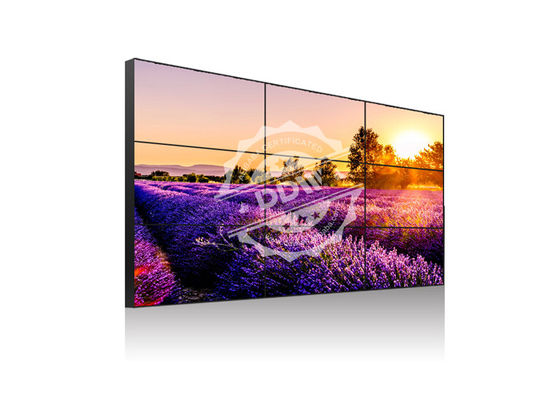

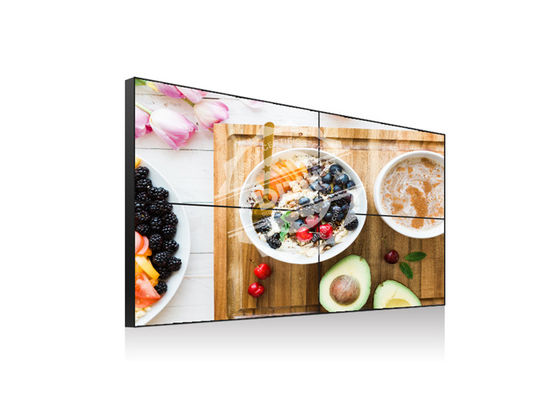

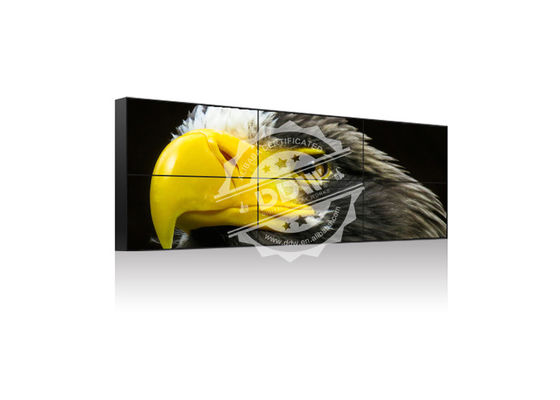

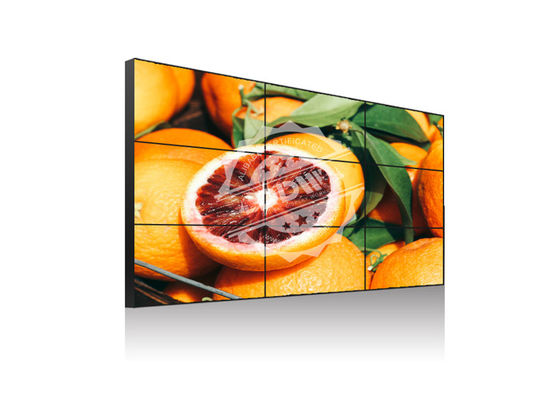

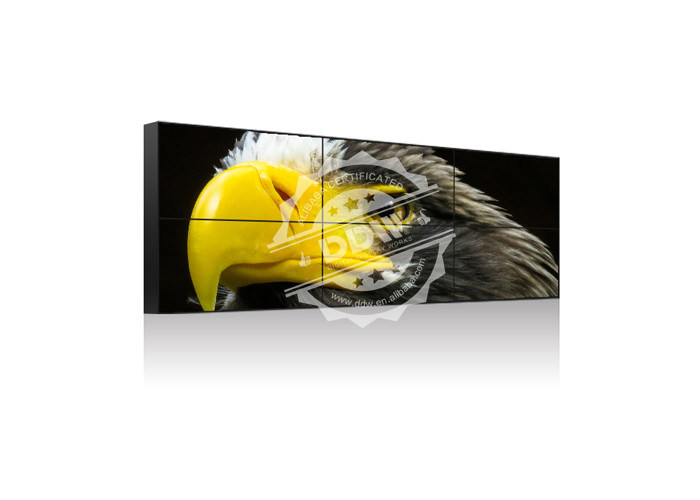

Super Thin Bezel 3.5mm Samsung Control Room Video Wall Monitor 55 Inch High Resolution
Samsung video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
Application
DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
55" lcd video wall features:
1, Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
2, 500nits brightness, 3500:1 contrast;
3, FHD physical resolution 1920x1080;
4, Only 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
5, Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
6, HD video wall unit--- High brightness, high contrast, high gamut;
7, Flexible structure design ---easy installation, extensible, arbitrary combination;
8, Stable performance, suitable working for a long time;
Specifications
| 55 inch Samsung video wall specifications |
| LCD Technology |
SAMSUNG DID LCD |
| Active Screen Diagonal |
55" 16:9 |
| Bezel Width |
Total: 3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920*1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
3500:1 |
| Viewing Angle |
H 178°|V 178° |
| Pixel Pitch(WxH) |
0.63x0.63 mm |
| Active Display Area(WxH) |
1209.6x680.4mm |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60Hz |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
| DVI-I DUAL LINK |
1 |
|
1 |
| VGA |
1 |
| CVBS IN |
1 |
| CVBS OUT |
1 |
| RS232 IN |
1 |
| RS232 OUT |
1 |
| ISP IN |
1 |
| IR IN |
1 |
| CODING BUTTON |
1 |
| AC IN |
AC100-240V |
| Color System Support |
PAL/NTSC/SECAM |
| Control Type |
IR Remote &Software Control |
| Menu Language |
English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display |
Support |
| Combine Display |
Support combine any horizental &vertical numbers of screens and show display |
| |
Support combine all screens together to show 1image |
| Solid Display |
Support each screen input with separate signal |
| PIP/Zoom/Roaming |
Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces |
Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution |
Support 1080P,1080I,720P,480P &multiple resolution inputs |
| Dimension(WxHxD) |
318.4x332x56mm |
