Home > products > Control Room Video Wall > 2X3 Control Room Video Wall 55'' 3.5mm Samsung Display VGA 1080P 700 Nits

2X3 Control Room Video Wall 55'' 3.5mm Samsung Display VGA 1080P 700 Nits

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LTI550HN12

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price
Product Details
Highlight:

hd video wall

,

samsung commercial displays

Panel Size:
55inch
Resolution:
1920 X 1080
Bezel Width:
3.5mm
Color:
8Bit , 16M
Brightness:
700nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Working Time Capacity:
7x24hours
Panel Size:
55inch
Resolution:
1920 X 1080
Bezel Width:
3.5mm
Color:
8Bit , 16M
Brightness:
700nits
Surface:
Anti-glare
Backlight:
LED
Control Method:
RS232 Control
Signal Support:
DVI//VGA/AV/YPBPR
Working Time Capacity:
7x24hours
Product Description

55 inch 2X3 Control Room Video Wall 3.5mm samsung display VGA 1080P 700nits







55" samsung video wall features:

1, Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;

2, 700nits brightness,3500:1 contrast;

3, FHD physical resolution 1920x1080;

4, Only 3.5mm Ultra narrow bezel. high quality ,Practical ,good vision effect;

5, Signal interface rich --- RS232, ,DVI,VGA,Y Pb Pr ,AV

6, HD video wall unit--- High brightness, high contrast,High gamut .

7, Flexible structure design ---easy installation, extensible, arbitrary combination

8, Stable performance, suitable working for a long time





Application

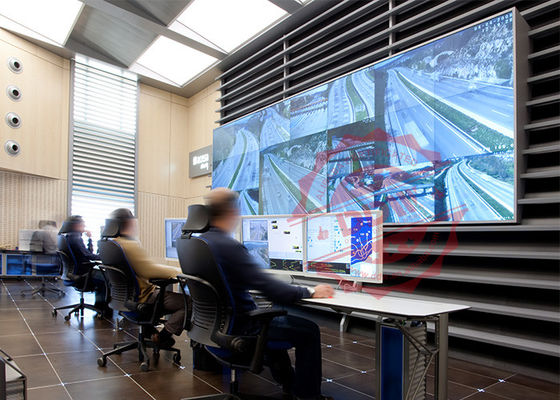

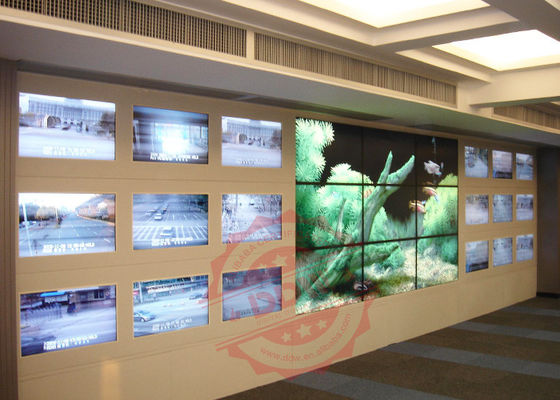

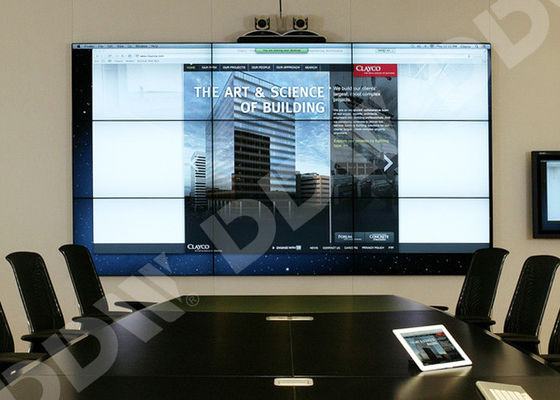

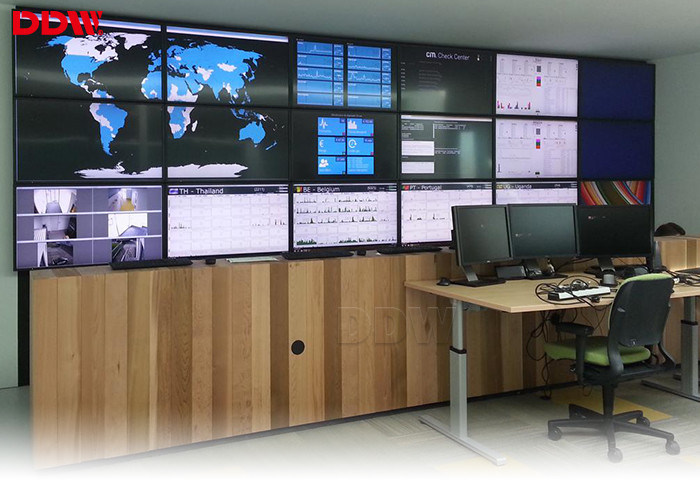

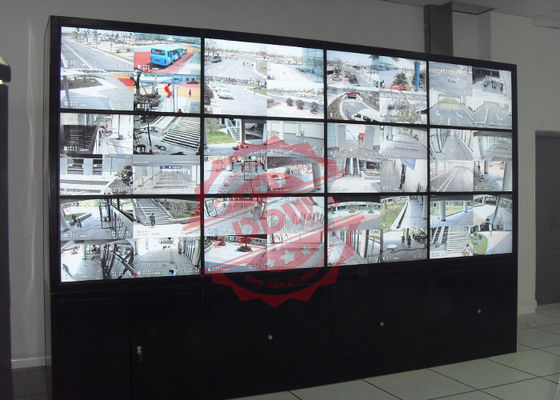

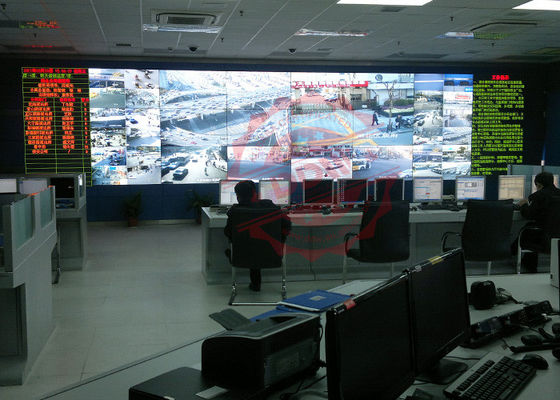

DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.



Specifications



46 inch Samsung video wall specifications
LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 55"
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System LED
Luminance(nits) 700cd/sqm
Contrast 3500:1
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.53025x0.53025mm
Active Display Area(WxH) 1018.08×572.67mm
Panel Dimension(WxHxD) 1021.98x576.57x66.9mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 220W
Power Supply AC100~240V 50/60Hz
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
DVI-I DUAL LINK 1
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
  Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
