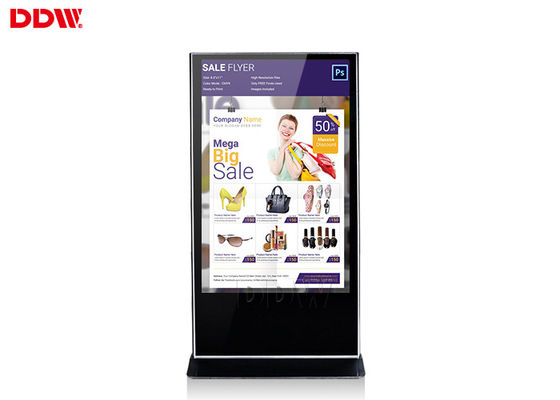

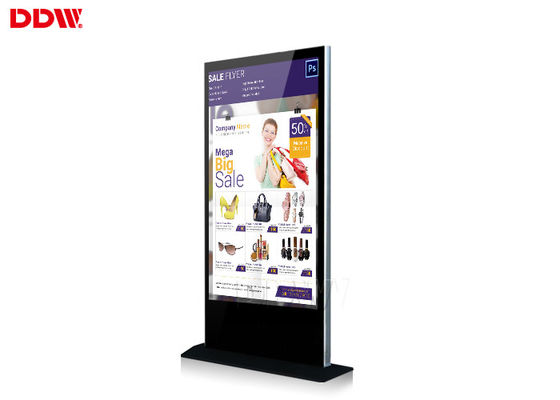

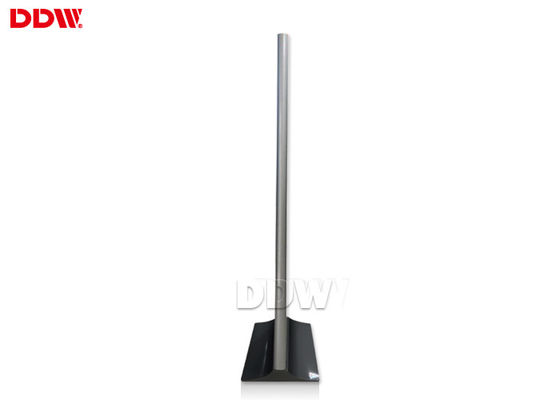

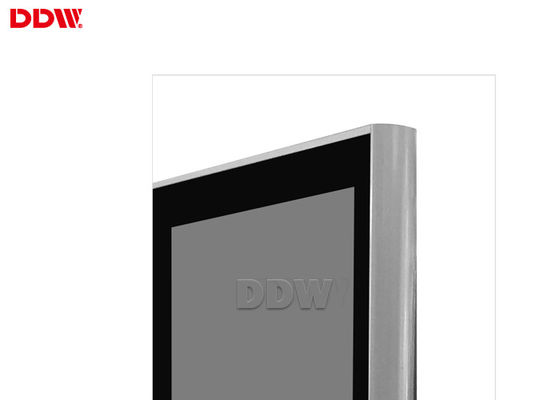

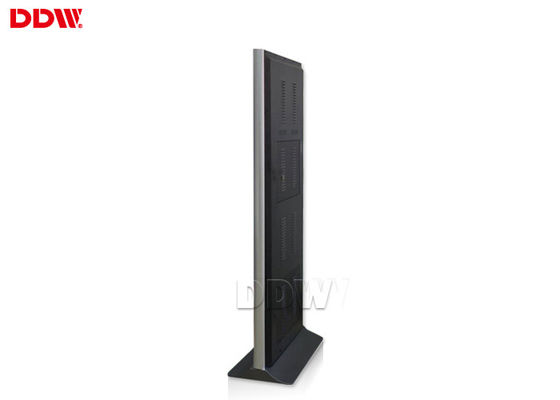

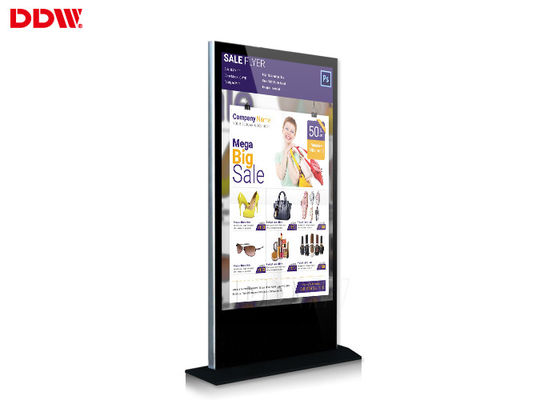

84 Inch 4K floor standing Lcd Advertising Player , Floor Stand Digital Signage Display Screen Advertising DDW-AD8401S
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-AD8401SNO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 20working days upon payment |
| Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance |
| Supply Ability: | 300 set per month |
|
Detail Information |
|||
| Maximum Resolution: | 4K UHD | Display Color: | 1.073G(10bits/color) |
|---|---|---|---|
| Resolution: | 4K | Brightness: | 500nits |
| OS: | Android/Windows | Standby Power Consumption: | <5W |
| Working Temperature: | 0－ 40 ℃ | Storage Temperature: | -10℃ — 50℃ |
| Installation: | Floor Standing , Wall Mounted Or Customized | Contrast: | 4000:1 |
| Highlight: | lcd ad display,floor standing display |
||
Product Description
84 Inch 4K floor standing Lcd Advertising Player , Floor Stand Digital Signage Display Screen Advertising DDW-AD8401S
Parameters:
1, Brightness: 500nits
2, Resolution: 3840*2160
3, OS: Android/Windows
4. Panel Brand: LG
5. Panel type: Original TFT LCD
Specifications:
| Technical Parameter for LCD Panel | Panel Size | 84 inch real color LCD screen |
| Aspect Ratio | 16:9 | |
| Max. Resolution | 1920x 1080 | |
| Number of Color | 16.7M | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 1500:1 | |
| Responsive Time | 8ms | |
| Panel Life | above 50000 hours | |
| Storage Medium | Flash memory card | 2gb to 36gb for the capacity |
| Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats | MP3 | |
| Photo formats | JPG | |
| OSD Language | English , Chinese , French , German , Italian , Spanish , Arabic | |
| Audio output | stereo L/R , 5Wx2 , 8Ω | |
| Power supply | AC 110V - 240V , 50/60HZ | |
| Storage Temperature | -7 to 65 Celsius degree | |
| Normal Working Temperature | -5 to 65 Celsius degree | |
Infrared touchscreen Panel Parameters:
| Touch Max Resolution | 4096×4096 |
| Transparency | > 90%, Up to 100% |
| Scanning Speed | >50Scans/S |
| Response Speed | <12ms |
| Touch Type | Horizontal Multi Dot Touch Screen (Vertical way is optional) |
| Touch precision | 0.625mm |
| Minimum Touch object | ≥5mm |
| Touch Intensity | Over 60,000,000 Single Point Touch |
| Operation System | DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX |
| perating Voltage | DC 5V ±5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W (Current<200mA) |
| Communication | RS-232 Interface Port, USB Port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break |
| Temperature Operating | -41°C ~70°C Temperature Storage: -50°C ~85°C |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 Year |
Functions
1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2, Audio format Wave/MP3/WMA/AAC
3, Image format JPEG/BMP/TIFF/PNG/GIF
4, Image resolution 480P/720P
5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards
6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7, Timing open & close:Per day 5 times , 7 days a week,free time
8, Timing play 7 days a week,free set the play program everyday
Applications
| Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
| Financial Organizations | Banks , negotiable securities , funds , insurance companies , pawnshops , Non-profit Organizations , Telecommunications , post offices , hospital , schools |
| Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
