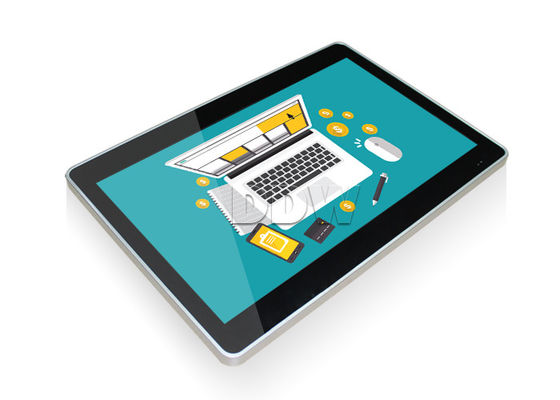

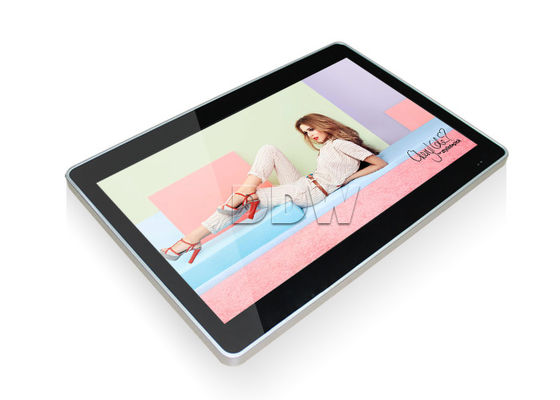

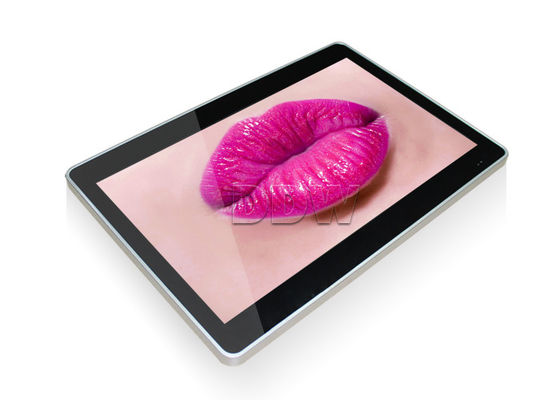

Customized High Definition wall mounted Lcd Advertising Floor Standing Display

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD3201W
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 300 set per month
Detail Information
Maximum Resolution: 1920x1080 Display Color: 1.073G(10bits/color)
Life(hrs): >60000(hrs) Average Brightness: 1500-2500cd/mxm
Maximum Power Consumption: 3600W Standby Power Consumption: <5W
Working Temperature: 0- 40 ℃ Storage Temperature: -10℃ — 50℃
Installation: Flood-standing , Wall Mounted Or Customized Multi Signal Function: Support
High Light:

commercial lcd display

,

floor standing display


Product Description

Customized High Definition wall mounted Lcd Advertising Floor Standing Display



32 inch high brightness digital signage Key Features:
1,32 inch high brightness LCD Module ,2000nits brightness , 1920x1080 resolution , 4000/1 contrast with LED backlight , Sunlight viewable

2, Patented LED backlight modular components + constant current source drive components

3, Patented cooling structure combination of high-quality fan assembly

4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input , 3G(optional)

5, Automatic ambient light adjustment control (extended life and energy efficiency)

6, Built-in power adapter combination AC220V/DC



Functions:

1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

2, Audio format Wave/MP3/WMA/AAC

3, Image format JPEG/BMP/TIFF/PNG/GIF

4, Image resolution 480P/720P

5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards

6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

7, Timing open & close:Per day 5 times , 7 days a week,free time



Parameters:

LCD parameters Model No. DDW-AD3201W
display 32" LED
Contrast Ratio 16/9
Display color 1.073G(10bits/color)
Life(hrs) >60,000(hrs)
average brightness 1500-2500cd/mxm
contrast 3500/1
Viewing angle H178°/V178°
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 3600W
Standby power consumption <5W
Working temperature 0- 40 ℃
Storage temperature -10℃ — 50℃
Installation floor standing , wall mounted or customized
IP65 waterproof case Using 1.5mm galvanized steel
Surface spray powder (anti-corrosion, anti-rust)
Outdoor anticorrosive over 7 years
AR anti-reflective glass 3 + 3mm plastic folder
Display screen glass Light transmittance 97%
Reflectivity is less than 3%
Explosion-proof, waterproof, fireproof
UV protection 99%
Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
High brightness 1500-2000 cd/㎡
Full hd 1920x1080
Industrial power supply
automatically adjust the brightness
Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc .
Cooling system Intelligent heating and air-cooling system
meet the environment of -20℃ — 55 ℃
LCD display is not blackening
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
Product assembly and aging test IP65 waterproof test
High and low temperature test
Simulated solar radiation test
Aging test
Packaging Wooden packaging, sea/air/express(transportation standards)



Applications:

Business Organizations Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
Financial Organizations Banks , negotiable securities , funds , insurance companies , pawnshops ,  Non-profit Organizations ,  Telecommunications , post offices , hospital , schools
Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property ,  Apartments , villas , offices , commercial buildings , model rooms , property brokers .
Entertainments Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course
