Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD7001S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 300 set per month
Maximum Resolution: |
1920x1080 |
Panel Brand: |
Samsung |
Life(hrs): |
>60000(hrs) |
Average Brightness: |
1500-2500cd/mxm |
Maximum Power Consumption: |
3600W |
Standby Power Consumption: |
<5W |
Working Temperature: |
0- 40 ℃ |
Storage Temperature: |
-10℃ — 50℃ |
Installation: |
Flood-standing , Wall Mounted Or Customized |
Backlight: |
WLED |
Weatherproof: |
Yes |
Maximum Resolution: |
1920x1080 |
Panel Brand: |
Samsung |
Life(hrs): |
>60000(hrs) |
Average Brightness: |
1500-2500cd/mxm |
Maximum Power Consumption: |
3600W |
Standby Power Consumption: |
<5W |
Working Temperature: |
0- 40 ℃ |
Storage Temperature: |
-10℃ — 50℃ |
Installation: |
Flood-standing , Wall Mounted Or Customized |
Backlight: |
WLED |
Weatherproof: |
Yes |

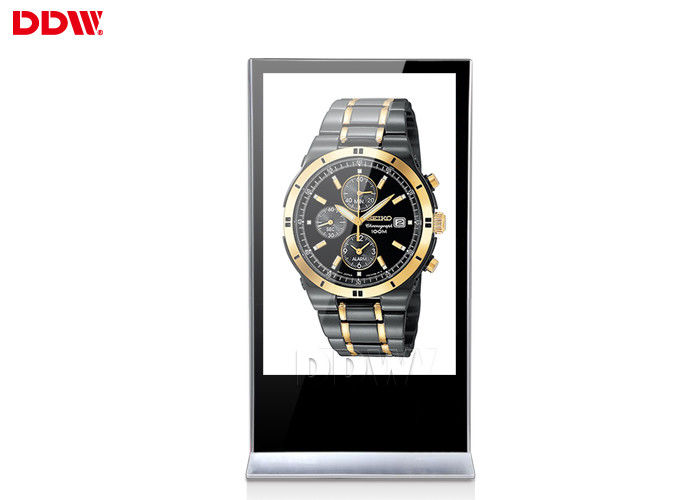

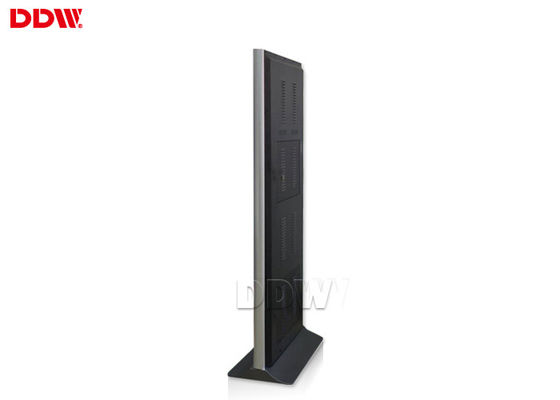

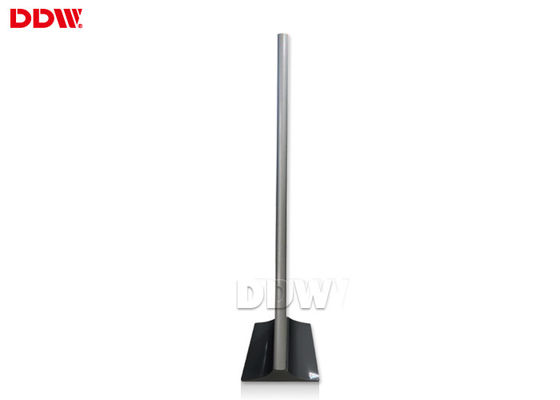

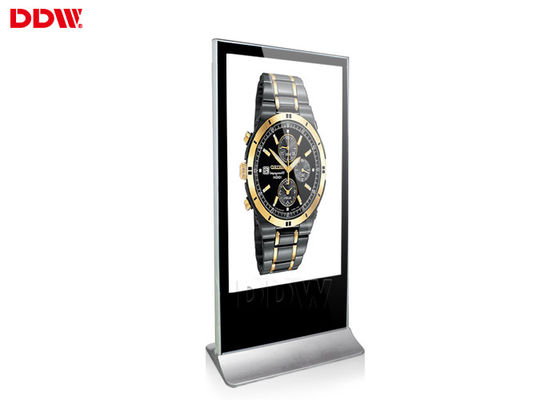

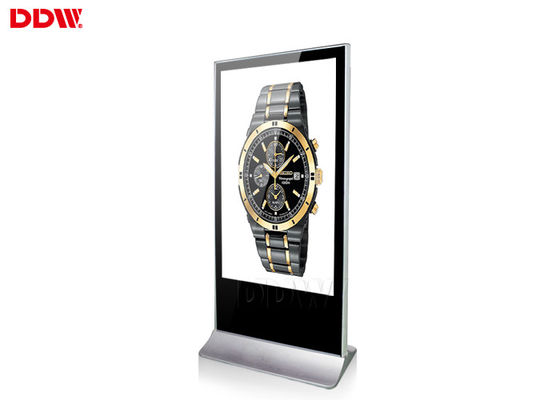

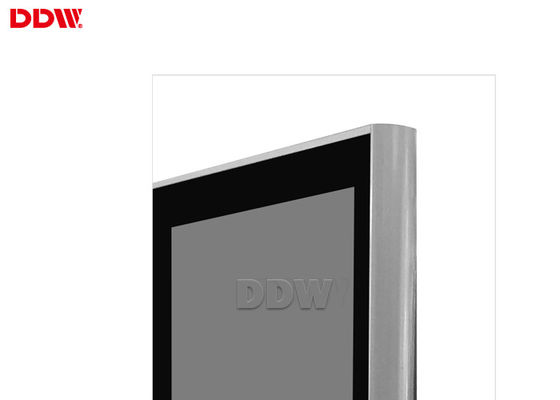

Weatherproof Free Standing Digital Display, 70 Inch Large Lcd Screens For Advertising DDW-AD7001S
Parameters
LCD parameters | Model No. | DDW-AD7001SNO |
display | 70" LED | |
Contrast Ratio | 16/9 | |
machine size | 2310x1012x71mm | |
Display area | 1547.44x869.56mm | |
Maximum resolution | 1920x1080 | |
Pixel Pitch(mm) | 0.8015x0.8015mm | |
Display color | 1.073G(10bits/color) | |
Life(hrs) | >60,000(hrs) | |
average brightness | 1500-2500cd/mxm | |
contrast | 4000/1 | |
Viewing angle | H178°/V178° | |
Power supply | AC100~240V 50 /60 HZ | |
Maximum power consumption | 3600W | |
Standby power consumption | <5W | |
Working temperature | 0- 40 ℃ | |
Storage temperature | -10℃ — 50℃ | |
Installation | flood-standing , wall mounted or customized | |
IP65 waterproof case | Using 1.5mm galvanized steel | |
Surface spray powder (anti-corrosion, anti-rust) | ||
Outdoor anticorrosive over 7 years | ||
AR anti-reflective glass 3 + 3mm plastic folder | ||
Display screen glass | Light transmittance 97% | |
Reflectivity is less than 3% | ||
Explosion-proof, waterproof, fireproof | ||
UV protection 99% | ||
Display screen | Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 | |
High brightness 1500-2000 cd/㎡ | ||
Full hd 1920x1080 | ||
Industrial power supply | ||
automatically adjust the brightness | ||
Electronic control system | Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc . | |
Cooling system | Intelligent heating and air-cooling system | |
meet the environment of -20℃ — 55 ℃ | ||
LCD display is not blackening | ||
Patented cooling system ensures that the LCD screen without blackening in direct sunlight | ||
Product assembly and aging test | High and low temperature test | |
Simulated solar radiation test | ||
Aging test | ||
Packaging | Wooden packaging, sea/air/express(transportation standards) |
Key Features:
1, 70 inch high brightness LCD Module ,1500-2500nits brightness , 1920x1080 resolution , 4000/1 contrast with LED backlight , Sunlight viewable
2, Patented LED backlight modular components + constant current source drive components
3, Patented cooling structure combination of high-quality fan assembly
4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input , 3G(optional)
5, Automatic ambient light adjustment control (extended life and energy efficiency)
6, Built-in power adapter combination AC220V/DC
7, Frame(fit with single side screen) can be customized exactly same as client provided
8, Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10, A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring , real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature -20℃ - 50℃
Functions
1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2, Audio format Wave/MP3/WMA/AAC
3, Image format JPEG/BMP/TIFF/PNG/GIF
4, Image resolution 480P/720P
5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards
6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7, Timing open & close:Per day 5 times , 7 days a week,free time
8, Timing play 7 days a week,free set the play program everyday
Applications
Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
Financial Organizations | Banks , negotiable securities , funds , insurance companies , pawnshops , Non-profit Organizations , Telecommunications , post offices , hospital , schools |
Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
Entertainments | Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
