Highlight:
transparent lcd panel
, see through lcd display

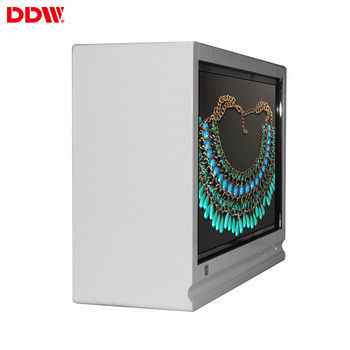

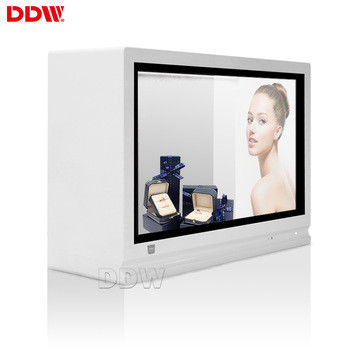

Chinese factory 37 inch transparent lcd display screen display 16.7M WLED backlit for optical shop DDW-ADTS3701
Key features
1 . LED Backlight , FHD 1920x1080 resolution;
2 . Seamless designed aluminum alloy frame;
3 . Android OS IP/WIFI remote networkcontrol;
4 . High contrast 700nits brightness;
5 . High brightness 2000nits ,1500nits can be customized;
Display mode
Support video , flash animation,images and text mix broadcasting . Video truly seamless playback, Up to 14 kinds of picture transition mode .
Support rich display resolution 1366x768, 1440x900, 1600x900, 1680x1050, 1920x1080;
Specifications
| Panel type |
TFT-LCD |
| Diagonal |
37" |
| Aspect Ratio |
16/9 |
| Physical Resolution |
1920x1080 |
| Display Colors |
16.7M |
| Viewing Angle |
H178º/ V178º |
| Luminance(nits) |
700cd/m2 |
| Contrast |
1100/1 |
| Backlit type |
WLED |
| Response time |
6ms |
| Life(hrs) |
more than 60000 |
| RJ45(network port) |
1 |
| USB |
1(USB 2.0) |
| SD |
1(Capatible MMC/MS) |
| CF |
1 |
| VGA |
Optional |
| DVI |
Optional |
|
Optional |
| Power Supply |
AC100~250V 50/60 HZ |
| Max.Consumption |
≤200W |
| Standby Consumption |
≤3W |
| Control Method |
TCP/IP , WIFI , Software Control(Network version only) , IR |
| Color System Support |
PAL/NTSC/SECAM |
| OSD Language |
Multiple languages |
| Rich Resolution |
Support 1080P , 1080I , 720P , 480P &multiple resolutions |
| Video forma tsupport |
MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Image format support |
JPEG/BMP/TIFF/PNG/GIF |
| Audio format support |
Wave/MP3/WMA/AAC |
| Splicing Display |
Support |
| Working Temperature |
0℃-50℃ |
| Working Humidity |
10%-85% |
| Storage Temperature |
0℃-50℃ |
| Storage Humidity |
5%-95% |
| Cooling |
Low noise fans |
| Application Condition |
Indoor/Semi Outdoor |
| Material |
Cold-roll steel SPCC |
| Frame Color |
Black/White/Customization |
| Mount/Installation type |
Standby/Wall mount with wheel rack |
Program encryption
Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )
Timing management
Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk
Log management
Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .
Applications
| Business Organizations |
supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops
Non-profit Organizations Telecommunications , post offices , hospital , schools
|
| Public Places |
subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
|
