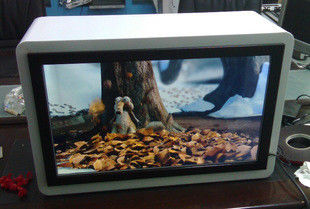

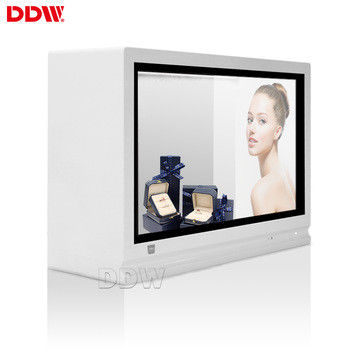

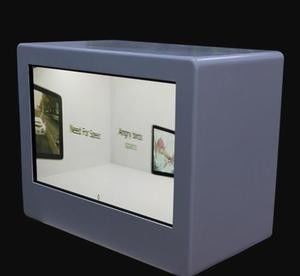

WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch

WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch

    • WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch
    • WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch
    • WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch
    • WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch
  • WLED Backlit Transparent Lcd Touch Screen 700 Nits 178° Viewable Angle 47 Inch

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-ADTS4701

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 3-7working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance, D/P, D/A
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Physical Resolution: 1920x1080 Display Colors: 16.7M
    Luminance(nits): 700cd/m2 Backlit Type: WLED

    47 inch transparent lcd touch screen 700nits 178° viewable angle transparent lcd screen

    Key features

    1 . LED Backlight , FHD 1920x1080 resolution;

    2 . Seamless designed aluminum alloy frame;

    3 . Android OS IP/WIFI remote networkcontrol;

    4 . High contrast 700nits brightness;

    5 . High brightness 2000nits ,1500nits can be customized;



    Display mode

    Support video , flash animation,images and text mix broadcasting . Video truly seamless playback, Up to 14 kinds of picture transition mode .

    Support rich display resolution 1366x768, 1440x900, 1600x900, 1680x1050, 1920x1080;





    Specifications

    Panel type TFT-LCD
    Diagonal 47"
    Aspect Ratio 16/9
    Physical Resolution 1920x1080
    Display Colors 16.7M
    Viewing Angle H178º/ V178º
    Luminance(nits) 700cd/m2
    Contrast 1100/1
    Backlit type WLED
    Response time 6ms
    Life(hrs) more than 60000
    RJ45(network port) 1
    USB 1(USB 2.0)
    SD 1(Capatible MMC/MS)
    CF 1
    VGA Optional
    DVI Optional
    HDMI Optional
    Power Supply AC100~250V 50/60 HZ
    Max.Consumption ≤200W
    Standby Consumption ≤3W
    Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
    Color System Support PAL/NTSC/SECAM
    OSD Language Multiple languages
    Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
    Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
    Image format support JPEG/BMP/TIFF/PNG/GIF
    Audio format support Wave/MP3/WMA/AAC
    Splicing Display Support
    Working Temperature 0℃-50℃
    Working Humidity 10%-85%
    Storage Temperature 0℃-50℃
    Storage Humidity 5%-95%
    Cooling Low noise fans
    Application Condition Indoor/Semi Outdoor
    Material Cold-roll steel SPCC
    Frame Color Black/White/Customization
    Mount/Installation type Standby/Wall mount with wheel rack






    Program encryption

    Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )







    Timing management

    Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk



    Log management

    Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .



    Applications

    Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
    Financial Organizations

    Banks , negotiable securities , funds , insurance companies , pawnshops

    Non-profit Organizations Telecommunications , post offices , hospital , schools

    Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
