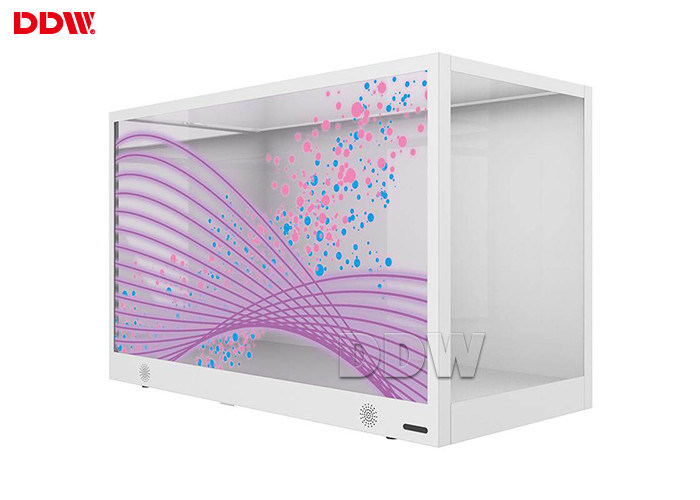

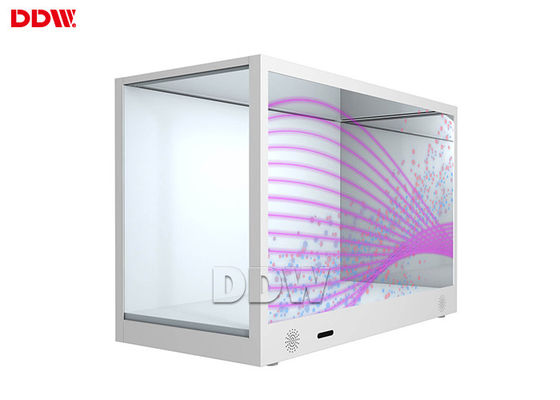

High quality 32 inch transparent digital signage transparent lcd monitor for retail store

High quality 32 inch transparent digital signage transparent lcd monitor for retail store

    • High quality 32 inch transparent digital signage transparent lcd monitor for retail store
    • High quality 32 inch transparent digital signage transparent lcd monitor for retail store
  • High quality 32 inch transparent digital signage transparent lcd monitor for retail store

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-ADTS3201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 3-7working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Physical Resolution: 1920x1080 Display Colors: 16.7M
    Luminance(nits): 700cd/m2 Backlit Type: WLED
    Response Time: 6ms Life(hrs): More Than 60000hrs
    Max.Consumption: ≤200W Control Method: TCP/IP , APP , WIFI , Software Control , IR
    OSD Language: Multiple Languages Contrast: 3500/1
    Panel Brand: LG/SAMSUNG

    High quality 32 inch transparent digital signage transparent lcd monitor for retail store


    Key features

    1 . LED Backlight , FHD 1920x1080 resolution;

    2 . Seamless designed aluminum alloy frame;

    3 . Android OS IP/WIFI remote networkcontrol;

    4 . High contrast 700nits brightness;

    5 . High brightness 2000nits ,1500nits can be customized;


    Display mode

    Support video , flash animation,images and text mix broadcasting . Video truly seamless playback, Up to 14 kinds of picture transition mode .

    Support rich display resolution 1366x768, 1440x900, 1600x900, 1680x1050, 1920x1080;



    Panel type TFT-LCD
    Diagonal 32”
    Aspect Ratio 16/9
    Physical Resolution 1920x1080
    Display Colors 16.7M
    Viewing Angle H178º/ V178º
    Luminance(nits) 700cd/m2
    Contrast 1100/1
    Backlit type WLED
    Response time 6ms
    Life(hrs) more than 60000
    RJ45(network port) 1
    USB 1(USB 2.0)
    SD 1(Capatible MMC/MS)
    CF 1
    VGA Optional
    DVI Optional
    HDMI Optional
    Power Supply AC100~250V 50/60 HZ
    Max.Consumption ≤200W
    Standby Consumption ≤3W
    Control Method TCP/IP , WIFI , Software Control(Network version only) , IR
    Color System Support PAL/NTSC/SECAM
    OSD Language Multiple languages
    Rich Resolution Support 1080P , 1080I , 720P , 480P &multiple resolutions
    Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
    Image format support JPEG/BMP/TIFF/PNG/GIF
    Audio format support Wave/MP3/WMA/AAC
    Splicing Display Support
    Working Temperature 0℃-50℃
    Working Humidity 10%-85%
    Storage Temperature 0℃-50℃
    Storage Humidity 5%-95%
    Cooling Low noise fans
    Application Condition Indoor/Semi Outdoor
    Material Cold-roll steel SPCC
    Frame Color Black/White/Customization
    Mount/Installation type Standby/Wall mount with wheel rack
    Dimension with base 1880x632x80mm




    The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .


    Program encryption

    Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )


    Split-screen display

    Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause


    Timing management

    Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk


    Log management

    Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .




    Business Organizations supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
    Financial Organizations

    Banks , negotiable securities , funds , insurance companies , pawnshops

    Non-profit Organizations Telecommunications , post offices , hospital , schools

    Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers .
    Entertainments Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars  , cafes , Internet bars , beauty shops , golf course
