Highlight:
transparent lcd panel
, transparent monitor screen
China hot sales 65 inch transparent monitor 500-700nits brightness 16.7 color 220V power for retail store
Product performance:
1)Through the information release system, high-efficiency program release and update, support horizontal and vertical screen playback, picture video mixing, rolling subtitles, time switch, USB data import and other functions.
2) Integrated USB / Ethernet / WIFI / Bluetooth in one, simplifying the design of the whole machine, can be connected to an external SD card.
3) It has a rich expansion interface. Four USB ports (two pins, two standard USB ports), two expandable serial ports, and a GPIO/ADC interface to meet the requirements of various peripherals on the market.
4)The system supports USB upgrade and network upgrade.
5)Video playback supports wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, and images support jpg, jpeg, bmp, etc.
6) Support remote setting of timer play / sleep / screen switch / restart function.
7) Support remote transmission of video, pictures and files to the unit for playback.
8) Support FTP breakpoint retransmission function, saving time and improving work efficiency.
9) Support remote query function, you can query the current playback status and file information of the terminal at any time in the background, which is convenient for supervision.
10) Support 4G, WIFI, wired network and remote control. (optional)
11)Long life, 7*24 hours of uninterrupted work, up to 60,000 hours.
Product features:
1) Stylish, silver aluminum alloy full metal casing, the whole machine is beautiful, generous and high-grade.
2) High transmittance LCD glass, with a transmittance of >88% or more, allows you to clearly see the back of the screen while watching the high-definition picture on the LCD screen.
3) High-precision infrared touch screen, touch tempered glass wear-resistant, scratch-resistant, and damage-proof.
4) Industrial grade power system, with constant temperature cooling system, can meet 24*7 continuous disconnected machine playback.
5)The product has passed the national mandatory 3C certification and has the software copyright certificate developed by the national high-tech enterprise.
| product name |

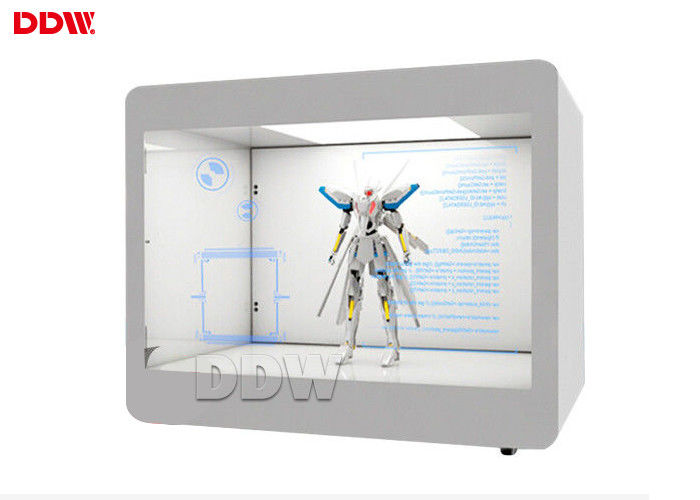

43 inch transparent screen advertising machine |
| Product number |
DDW-ADTS4301 |
| LCD panel |
Zoom |
16:09 |
| Backlight |
LED |
| Resolution |
1920×1080 |
| brightness |
500cd/㎡ |
| Contrast |
4000:01:00 |
| Response time |
5ms |
| color |
16.7M |
| Viewing angle |
Horizontal / vertical: 178 ° / 178 ° |
| Functions |
CPU |
RK3368 Coretex A53 eight core, the highest frequency is 1.6GHz |
| Memory/internal memory |
2G/8G |
| Support video encoding format |
Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 |
| Support image format |
Support BMP, JPEG, PNG, GIF |
| Audio and video output |
Support CVBS output, left and right channel output, built-in dual 4R/6W, 8R/3W amplifier |
| touch |
Infrared six-point touch |
| Support storage media |
TF/USB/SD |
| Network support |
Ethernet, WiFi, 4G, (optional) |
| Play mode |
Loop playback, insert, timing, scheduled, etc. |
| External interface |
The internet |
1 way RJ-45 10/100M |
| power supply |
1 way power input |
| USB2.0 interface |
2 USB HOST, 2 USB sockets |
| power supply |
Operating Voltage |
AC220V 50/60Hz |
| Maximum power consumption |
80W |
| Standby power consumption |
0.3W |
| Use environment |
temperature |
0 to 40 degrees Celsius |
| humidity |
10～90%RH without condensation |
| Appearance information |
annex |
Instruction manual × 1, remote control × 1 |
