Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001,CE,RoHS,FCC
Model Number: DDW-VPH0305
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Solid Display: |
Support Each Screen Input With Separate Signal |
IPad/iPhone Remote Control: |
Support Customized APP Remote Control |
Scene Management: |
Support Multiple Scenes Management/recall Function |
Support Scenes Cycle Broadcast: |
Support Scenes Cycle Broadcast Function |
Multiple Interfaces: |
Support Multiple DVI,,VGA,AV Inputss &multiple Signal Outputs |
Rich Resolution: |
Support 1080P,1080I,720P,480P &multiple Resolution Inputs |
Standard Packing: |
Double Layer Carton Box Pack |
Weight: |
5-100kg |
Solid Display: |
Support Each Screen Input With Separate Signal |
IPad/iPhone Remote Control: |
Support Customized APP Remote Control |
Scene Management: |
Support Multiple Scenes Management/recall Function |
Support Scenes Cycle Broadcast: |
Support Scenes Cycle Broadcast Function |
Multiple Interfaces: |
Support Multiple DVI,,VGA,AV Inputss &multiple Signal Outputs |
Rich Resolution: |
Support 1080P,1080I,720P,480P &multiple Resolution Inputs |
Standard Packing: |
Double Layer Carton Box Pack |
Weight: |
5-100kg |

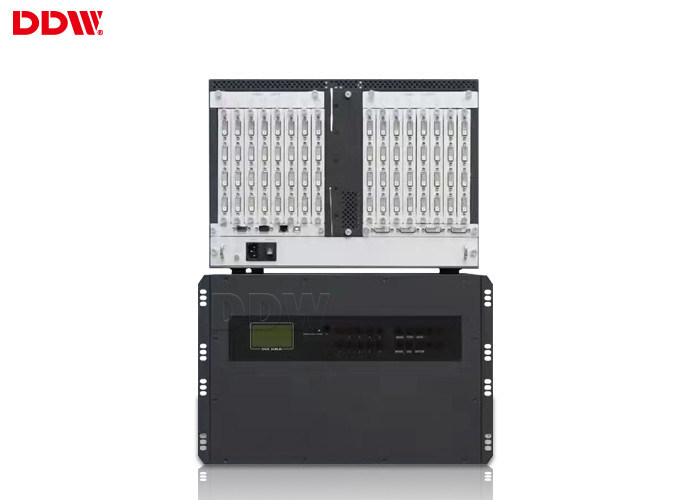

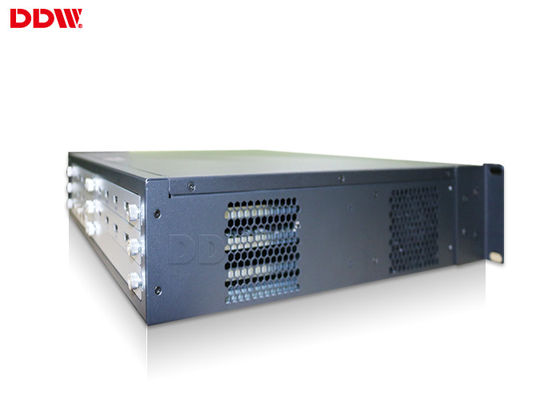

1920 x 1200 high resolution screen DIY video wall controller Multi signal hardware 144 inputs outputs APP remote control
Key features:
1.144 inputs 144 outputs
2.Upto 1920x1200 I/O
3.Scene management
4.Signal preview
5.APP remote control
This DIY video wall controller likes a really DIY which allow operators to design according to their own customization configurations. It can be widely used for monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
DIY video wall controller more features:
1, Full hardware configuration without operating system
2, High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3, Real time image display, no dropped frames
4, Support display at arbitrary position, at any size and any superimposed
5, Support open-window effects processing
6, Support large-screen image freeze
7, Support 7×24 uninterrupted and stable working
8, Flexibility to increase the input/output board
9, Support partial input and output cards with mixed interpolation
10, Input/output card supports hot-swappable, plug-and-play functionality
11, Output resolution up to 1920×1200
12, Rich BNC, VGA, DVI, , SDI and RJ45 input interface, support for multiple resolutions up to 1920×1200,control via RS-232 or Ethernet
13, Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
14, Redundant power supply design, thermostatically controlled fan
15, Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
Key functions
Vertical/Horizontal Display | Support |
Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
Support combine all screens together to show 1image | |
Solid Display | Support each screen input with separate signal |
PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
iPad/iPhone remote control | Support customized APP remote control |
Signal preview function | Support Audit/Preview signal before output to windows/video wall screens |
Scene management | Support Multiple scenes management/recall function |
Support scenes cycle broadcast | Support scenes cycle broadcast function |
Multiple Interfaces | Support multiple DVI,,VGA,AV inputss &multiple signal outputs |
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Standard Packing | Double layer carton box pack |
Weight | 5-100kg |
6kg-110kg |
Detail Parameters:
Technical Specifications | ||
Model series | With CBD | No CBD |
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
Input signal(optional) | /DVI/VGA/AV/YPbPr | |
Input resolution | 1024x768~1080p,commonly used resolutions | |
Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
Output resolution | Up to 1920×1200/60HZ | |
System control software | Special control software | |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
Consumption | 12W/channel | |
Working temperature | -20°C——60°C | |
Working Humidity | 5-95% | |
Case specification | 4U/6U/10U/15U standard rackmount chassis | |
Serial Control Interface | RS-232,9-pin female, Type-D | |
Baud Rate | 115200 | |
Pin configuration | 2=TX,3=RX,5=GND | |
Ethernet control interface | RJ-45 female, TCP/IP | |
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
Working time | 365*7*24hrs | |
Technical specification of input/output connectors | ||
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640*480/60HZ—1920*1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024*768/60HZ-1920*1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
