Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-VPH0809
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Max PIP Per Screen:: |
1,4,16,customization |
IPad/iPhone Remote Control: |
Support Customized APP Remote Control |
Maximum Input Numbers:: |
128 |
Control Method: |
RS232,IP |
Maximum Output Numbers:: |
128 |
Input Output Signal Sources:: |
,DVI,VGA,AV,YPBPR,IP |
Standard Packing: |
Double Layer Carton Box Pack |
Weight: |
5-100kg |
Max PIP Per Screen:: |
1,4,16,customization |
IPad/iPhone Remote Control: |
Support Customized APP Remote Control |
Maximum Input Numbers:: |
128 |
Control Method: |
RS232,IP |
Maximum Output Numbers:: |
128 |
Input Output Signal Sources:: |
,DVI,VGA,AV,YPBPR,IP |
Standard Packing: |
Double Layer Carton Box Pack |
Weight: |
5-100kg |

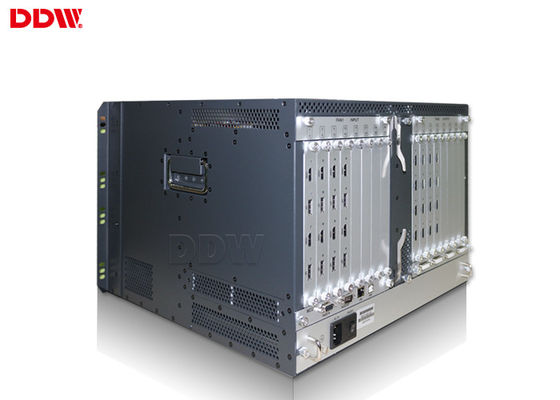

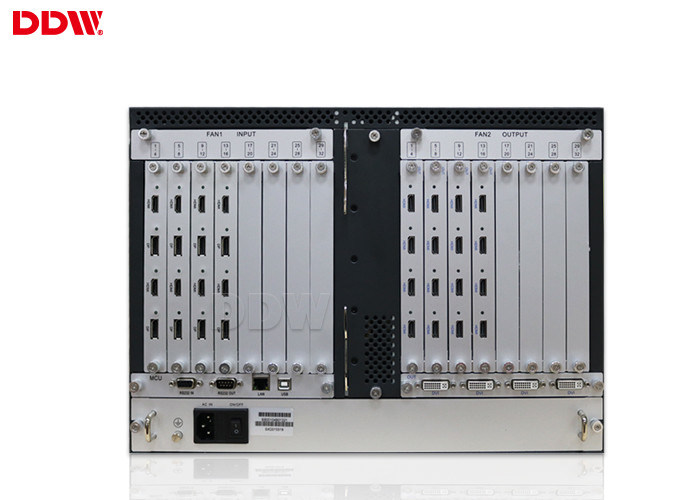

Multimedia Display Video Wall Controller 1920 X 1080 Input Output 1080P High Resolution DDW-VPH0809
With video wall control software
Support multiple and mixed /DVI/VGA/AV/YPBPR signal sources,RS232 IP control
Each channel support 1920x1080 input and output
key features:
1. Ultra-narrow border design of the current width of only 3.5mm double edge
2. Industrial grade professional DID LCD screens, designed for industrial monitoring and multimedia information display
3. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch
4. Support 7x24 hours, 365 days of continuous power-on, high reliability and stability, product life up to 60,000 hours
5. All screens can display the same or different signal sources on a single screen
6. Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized
7. Rich BNC, VGA, DVI, , SDI and RJ45 input interface, support for multiple resolutions up to 1920×1200,control via RS-232 or Ethernet
8. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
9. Redundant power supply design, thermostatically controlled fan
10. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Technical Specifications | ||
Model series | With CBD | No CBD |
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
Input signal(optional) | /DVI/VGA/AV/YPbPr | |
Input resolution | 1024x768~1080p,commonly used resolutions | |
Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
Output resolution | Up to 1920x1200/60HZ | |
System control software | Special control software | |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
Consumption | 12W/channel | |
Working temperature | -20°C——60°C | |
Working Humidity | 5-95% | |
Case specification | 4U/6U/10U/15U standard rackmount chassis | |
Serial Control Interface | RS-232,9-pin female, Type-D | |
Baud Rate | 115200 | |
Pin configuration | 2=TX,3=RX,5=GND | |
Ethernet control interface | RJ-45 female, TCP/IP | |
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
Working time | 365 x 7 x 24hrs | |
Technical specification of input/output connectors | ||
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640 x 480/60HZ—1920 x1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024 x 768/60HZ-1920 x 1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
