Multi monitor hardware DIY Video Wall Controller Support scenes cycle broadcast function DDW-VPH2616

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: DDW
Certification: ISO9001,CE,RoHS,FCC
Model Number: Video wall controller
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: dual layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance, D/A, D/P
Supply Ability: 1000pcs/month
Detail Information
Solid Display: Support Each Screen Input With Separate Signal IPad/iPhone Remote Control: Support Customized APP Remote Control
Scene Management: Support Multiple Scenes Management/recall Function Operating Temperature:: 30°C
Supply Voltage:: 100-200V Dissipation Power:: 50w
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
High Light:

lcd video wall controller

,

video wall processor


Product Description

Multi monitor hardware 26x16 input output DIY Video Wall Controller Support scenes cycle broadcast function DDW-VPH2616




Hardware Video wall controller key features:

1,  High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3, Real time image display, no dropped frames
4,  Support display at arbitrary position, at any size and any superimposed
5,  Support open-window effects processing
6,  Support large-screen image freeze
7,  Support 7×24 uninterrupted and stable working
8,  Flexibility to increase the input/output board
9,  Support partial input and output cards with mixed interpolation
10,  Input/output card supports hot-swappable, plug-and-play functionality



Video and Image Processing :



1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

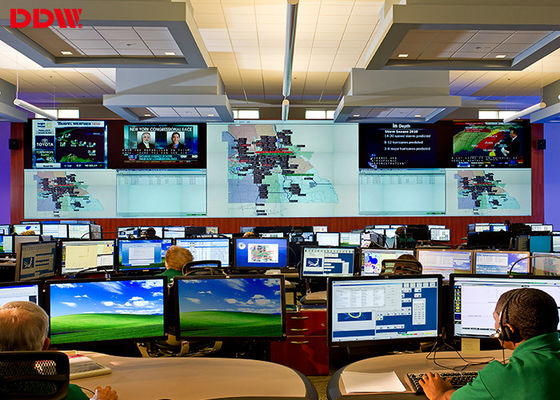

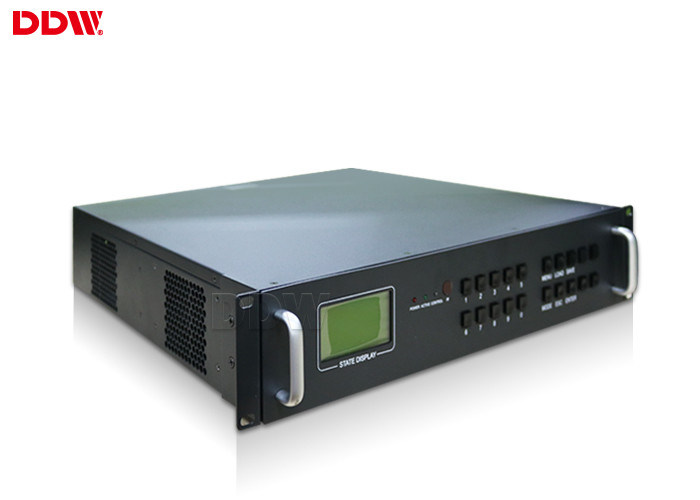

Multi monitor hardware DIY Video Wall Controller Support scenes cycle broadcast function DDW-VPH2616 0Multi monitor hardware DIY Video Wall Controller Support scenes cycle broadcast function DDW-VPH2616 1

Key functions:


Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) /DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution Up to 1920×1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365×7×24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024*768/60HZ-1920*1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female
