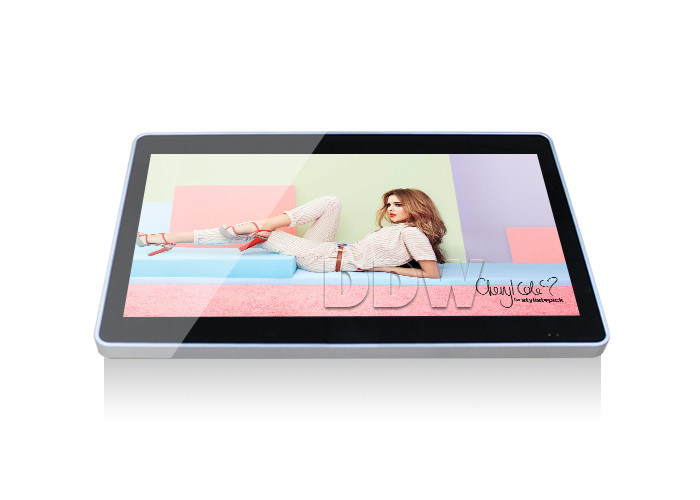

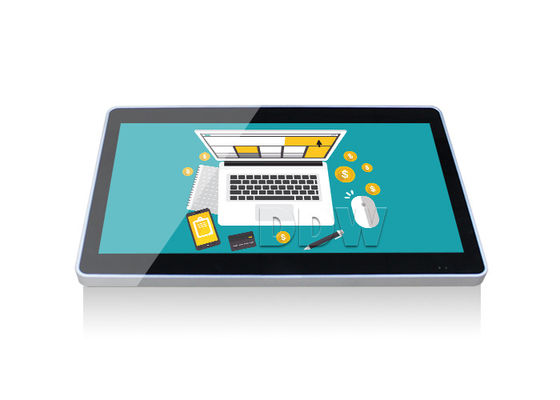

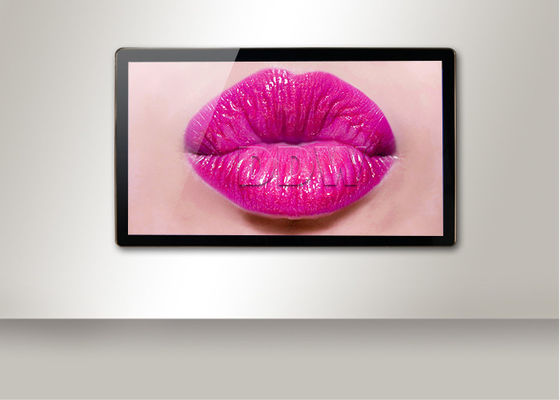

500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W

500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W

    • 500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W
    • 500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W
    • 500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W
  • 500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC , IP65
    Model Number: DDW-AD5801W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 20working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Maximum Resolution: 1920x1080 Display Color: 1.073G(10bits/color)
    Life(hrs): >60000(hrs) Average Brightness: 1500-2500cd/mxm
    Maximum Power Consumption: 3600W Standby Power Consumption: <5W
    Working Temperature: 0- 40 ℃ Storage Temperature: -10℃ — 50℃
    Installation: Flood-standing , Wall Mounted Or Customized

    500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W





    Functions

    1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

    2, Audio format Wave/MP3/WMA/AAC

    3, Image format JPEG/BMP/TIFF/PNG/GIF

    4, Image resolution 480P/720P

    5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards

    6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)

    7, Timing open & close:Per day 5 times , 7 days a week,free time





    58" high brightness digital signage Key Features

    1, 58 inch high brightness LCD Module ,2000nits brightness , 1920x1080 resolution , 4000/1 contrast with LED backlight , Sunlight viewable

    2, Patented LED backlight modular components + constant current source drive components

    3, Patented cooling structure combination of high-quality fan assembly

    4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support HDMI VGA input , 3G(optional)

    5, Automatic ambient light adjustment control (extended life and energy efficiency)

    6, Built-in power adapter combination AC220V/DC

    7, IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system

    8, Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot

    9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent



    Parameters

    LCD parameters Model No. DDW-AD5801W
    display 58" LED
    Contrast Ratio 16/9
    machine size 1390.3x800x60mm
    Display area 1300x744.7mm
    Maximum resolution 1920x1080
    Pixel Pitch(mm) 0.6615x0.6680mm
    Display color 1.073G(10bits/color)
    Life(hrs) >60,000(hrs)
    average brightness 1500-2500cd/mxm
    contrast 3500/1
    Viewing angle H178°/V178°
    Power supply AC100~240V 50 /60 HZ
    Maximum power consumption 3600W
    Standby power consumption <5W
    Working temperature 0- 40 ℃
    Storage temperature -10℃ — 50℃
    Installation flood-standing , wall mounted or customized
    IP65 waterproof case Using 1.5mm galvanized steel
    Surface spray powder (anti-corrosion, anti-rust)
    Outdoor anticorrosive over 7 years
    AR anti-reflective glass 3 + 3mm plastic folder
    Display screen glass Light transmittance 97%
    Reflectivity is less than 3%
    Explosion-proof, waterproof, fireproof
    UV protection 99%
    Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
    High brightness 1500-2000 cd/㎡
    Full hd 1920x1080
    Industrial power supply
    automatically adjust the brightness
    Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc .
    Cooling system Intelligent heating and air-cooling system
    meet the environment of -20℃ — 55 ℃
    LCD display is not blackening
    Patented cooling system ensures that the LCD screen without blackening in direct sunlight
    Product assembly and aging test IP65 waterproof test
    High and low temperature test
    Simulated solar radiation test
    Aging test
    Packaging Wooden packaging, sea/air/express(transportation standards)





    Applications



    Business Organizations Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy .
    Financial Organizations Banks , negotiable securities , funds , insurance companies , pawnshops ,  Non-profit Organizations ,  Telecommunications , post offices , hospital , schools
    Public Places subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property ,  Apartments , villas , offices , commercial buildings , model rooms , property brokers .
    Entertainments Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course

    500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W500 Nits 58 inch 1920x1080 16.7M LCD Advertising Player Monitor Sunlight Readability With Led Backlight DDW-AD5801W
