Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-AD7001SN
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 3-7working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 1000 set per month
Physical Resolution: |
1920x1080 |
Display Colors: |
16.7M |
Luminance(nits): |
500cd/m2 |
Backlit Type: |
WLED |
Response Time: |
8ms |
Life(hrs): |
More Than 60000hrs |
Control Method: |
TCP/IP , APP , WIFI , Software Control , IR |
USB: |
1(USB 2.0) |
SD: |
1(Capatible MMC/MS) |
CF: |
1 |
Power Supply: |
AC100~250V 50/60 HZ |
Frame Material: |
SPCC/AL/Acrylic , Tempered Glass , Touch Screen Available |
OSD Language: |
Multiple Languages |
Physical Resolution: |
1920x1080 |
Display Colors: |
16.7M |
Luminance(nits): |
500cd/m2 |
Backlit Type: |
WLED |
Response Time: |
8ms |
Life(hrs): |
More Than 60000hrs |
Control Method: |
TCP/IP , APP , WIFI , Software Control , IR |
USB: |
1(USB 2.0) |
SD: |
1(Capatible MMC/MS) |
CF: |
1 |
Power Supply: |
AC100~250V 50/60 HZ |
Frame Material: |
SPCC/AL/Acrylic , Tempered Glass , Touch Screen Available |
OSD Language: |
Multiple Languages |

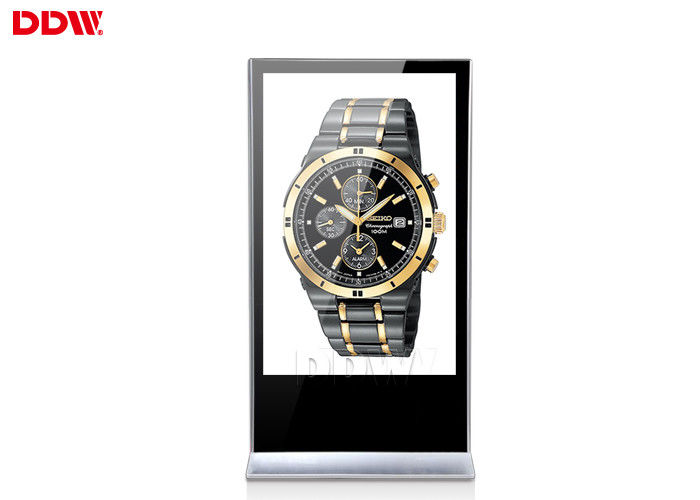

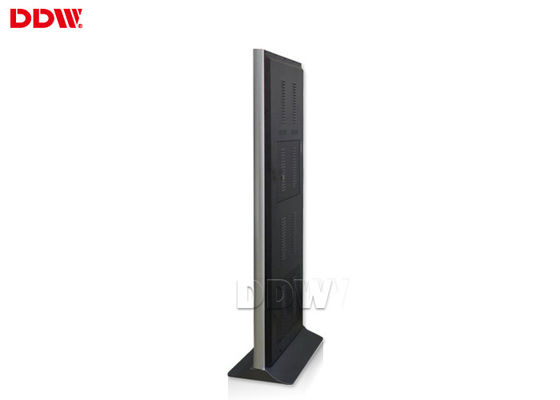

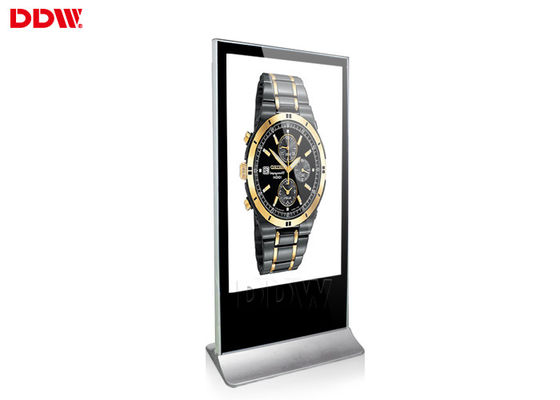

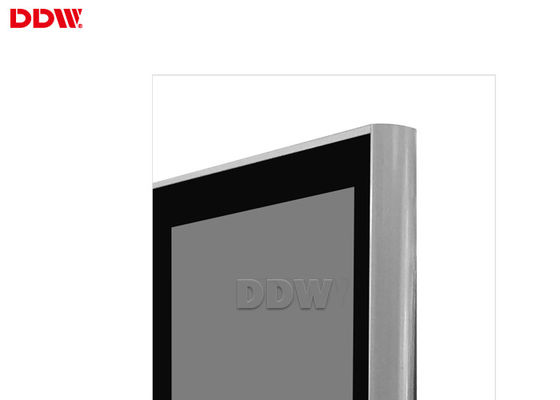

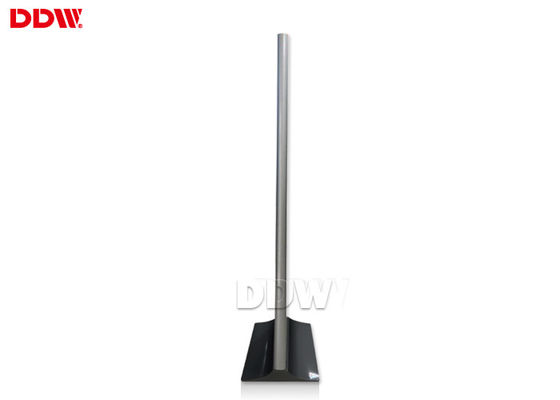

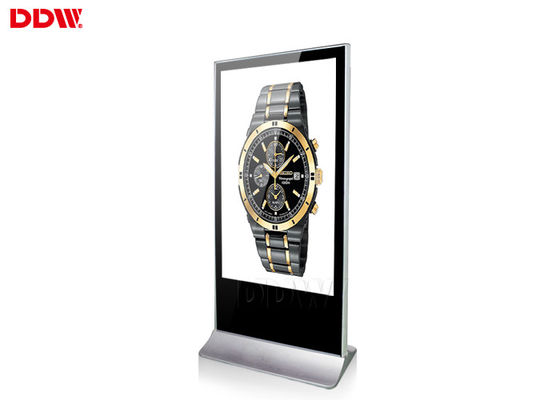

70 Inch electronic Teaching education digital signage display DDW - AD7001SN DDW-AD7001SN
Key features:
1 . LED Backlight , FHD 1920x1080 resolution
2 . Seamless designed aluminum alloy frame
3 . Android OS IP/WIFI remote networkcontrol
4 . High contrast 700nits brightness
5 . High brightness can be customized
Specifications:
Panel type | TFT-LCD |
Diagonal | 70” |
Aspect Ratio | 16/9 |
Physical Resolution | 1920x1080 |
Display Colors | 16.7M |
Viewing Angle | H178º/ V178º |
Luminance(nits) | 500cd/m2 |
Contrast | 2000/1 |
Backlit type | WLED |
Response time | 8ms |
Life(hrs) | more than 60000hrs |
RJ45(network port) | 1 |
USB | 1(USB 2.0) |
SD | 1(Capatible MMC/MS) |
CF | 1 |
VGA | Optional |
DVI | Optional |
Optional | |
Power Supply | AC100~250V 50/60 HZ |
Max.Consumption | ≤200W |
Standby Consumption | ≤3W |
Control Method | TCP/IP , WIFI , Software Control(Network version only) , IR |
Color System Support | PAL/NTSC/SECAM |
OSD Language | Multiple languages |
Rich Resolution | Support 1080P , 1080I , 720P , 480P &multiple resolutions |
Video forma tsupport | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
Image format support | JPEG/BMP/TIFF/PNG/GIF |
Audio format support | Wave/MP3/WMA/AAC |
Splicing Display | Support |
Working Temperature | 0℃-50℃ |
Working Humidity | 10%-85% |
Storage Temperature | 0℃-50℃ |
Storage Humidity | 5%-95% |
Cooling | Low noise fans |
Application Condition | Indoor/Semi Outdoor |
Material | Cold-roll steel SPCC |
Frame Color | Black/White/Customization |
Mount/Installation type | Standby/Wall mount with wheel rack |
Dimension with base | 1880x632x80mm |
Display mode
Support video , flash animation,images and text mix broadcasting . Video truly seamless playback . Up to 14 kinds of picture transition mode .
Support rich display resolution 1366x768 , 1440x900 , 1600x900 , 1680x1050 , 1920x1080 .
Schedule
The default program broadcasting . Broadcast specified programs on specified date and time . Automatically deleted overdue program . Program insertion , broadcast emergency major events .
Program encryption
Make encryption and authentication for playlists and program material , refuse illegal program broadcast . Pre-set independent password by grouping . Certificate U disk, only authenticated program can be imported. Multi-language menu: Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )
Split-screen display
Support switch between both horizontal & vertical display mode Support switch between full screen and split diplay mode Both horizontal & vertical display mode support full screen and split display mode Can realize scroll marquee play , smooth scrolling , without pause
Timing management
Support turn on , turn off , timer switch , manually 4 o perating mode Select the timer switch Support 2 independent timers everyday Support set up 7 days a week independent , also support set up according to the daily management File import Support CF card , SD card , U disk & other storing media store file , improt playlist and program material file into these storing media . Configuer terminal parameters and update the software by CF card , SD card and U disk
Log management
Terminal works log Switch time record Remont control record File import and software update record Terminal log Abnoemal record Broadcast record log Fully record program broadcast date , time and broadcast times Export log files by the terminal ID and date to the U disk Support retain logs up to 1 month , automatically delaeted the log files beyond this time .
Applications
Business Organizations | supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops Non-profit Organizations Telecommunications , post offices , hospital , schools |
Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers , Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
