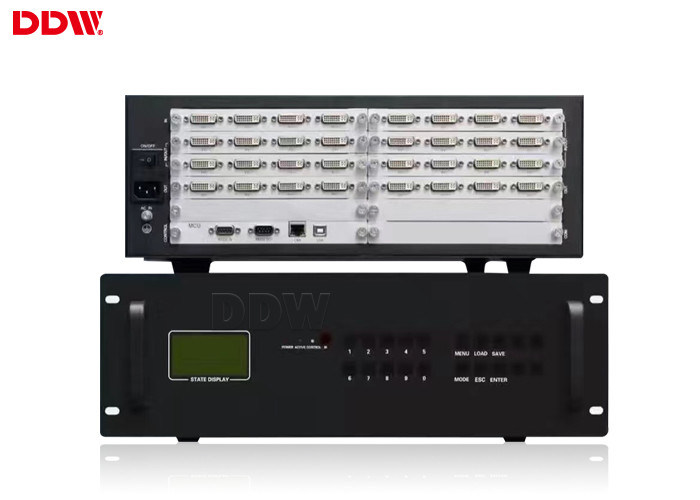

Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212

Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212

    • Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212
    • Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212
  • Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH1212

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Max Signal Input:: 512ch IPad/iPhone Remote Control: Support Customized APP Remote Control
    Dimension:: 4U,10U,15U W, D, H, Rack Mountable Supply Voltage:: 100-200V
    Warranty:: 3Years Dissipation Power:: 50W
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

    Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212

     key features:
    1. Support display at arbitrary position, at any size and any superimposed
    2. Support open-window effects processing
    3. Support large-screen image freeze
    4. Full hardware configuration without operating system
    5. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
    6. Real time image display, no dropped frames
    7. Flexibility to increase the input/output board
    8. Support partial input and output cards with mixed interpolation
    9. Input/output card supports hot-swappable, plug-and-play functionality
    10. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image

    Video and Image Processing :
    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

    Detail Parameters:

    Technical Specifications
    Model seriesWith CBDNo CBD
    Function description4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional)HDMI/DVI/VGA/AV/YPbPr
    Input resolution1024x768~1080p,commonly used resolutions
    Output signal formatDVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
    Output resolutionUp to 1920x1200/60HZ
    System control softwareSpecial control software
    Power SupplyRedundant power supply 110-220VAC, 50/60Hz
    Consumption12W/channel
    Working temperature-20°C——60°C
    Working Humidity5-95%
    Case specification4U/6U/10U/15U standard rackmount chassis
    Serial Control InterfaceRS-232,9-pin female, Type-D
    Baud Rate115200
    Pin configuration2=TX,3=RX,5=GND
    Ethernet control interfaceRJ-45 female, TCP/IP
    Ethernet control speedAuto 10M or 100M,Full-duplex or half-duplex
    Working time365x7x24hrs
    Technical specification of input/output connectors
    VGA/RGB inputInput: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video inputInput connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI outputResolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    SignalsConnectorsType
    Composite VIDEO inputBNCfemale
    VGA input15 pin HD D-Subfemale
    VGA output15 pin HD D-Subfemale
    DVI output24+5 or 24+1 standardfemale
    AUX RS-2329-pin D-Subfemale
    Main RS-2329-pin D-Subfemale

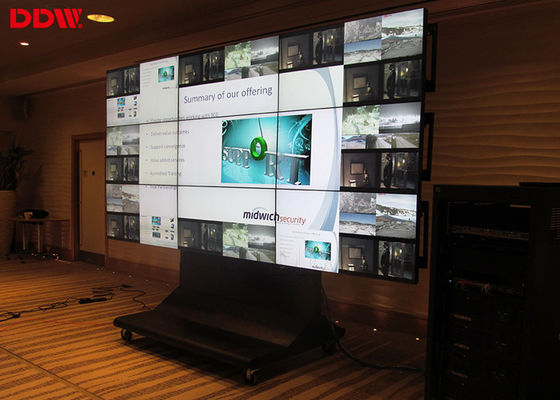

    Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212Multi Display Processor Hdmi Video Wall Controller High Speed Bus Parallel Processing DDW-VPH1212
