Highlight:
electric vehicle charging pile
, public charging stations

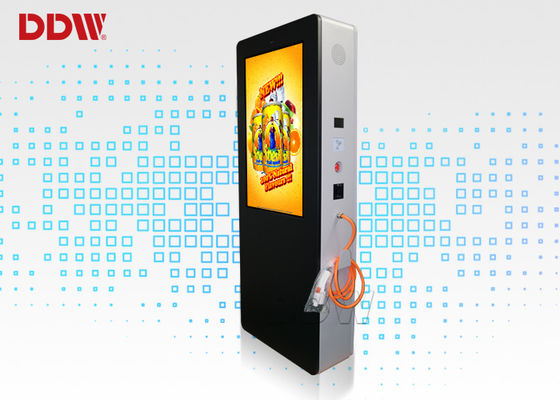

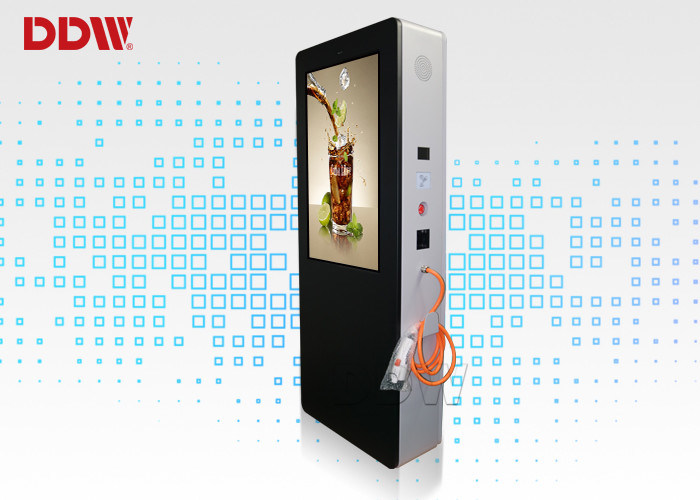

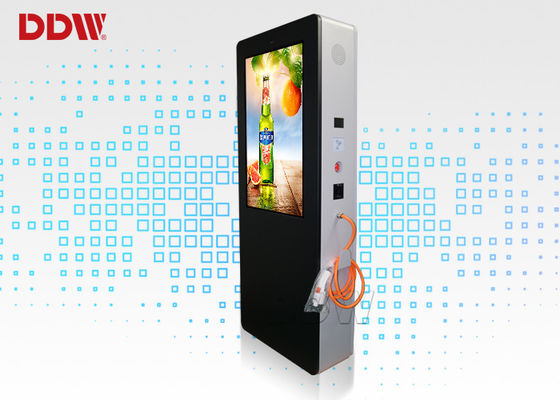

49 Inch IP65 2500nits waterproof Full HD Outdoor Digital Signage Lcd Electric Car Charger Original Panel DDW-AD4901S
Main Application:
1. Public Places:
2. Entertainment Places:
3. Toll Station
4. Business Organizations:
5. Public Service:
6. Real Estate&Property:
7.The Parking Lot
49 inch charge Pile digital signage functions:
1.This product can be composed of human-computer interactive touch screen, 42-inch LCD screen, RF reader, energy measurement module, communication module, charging interface, control module and pile composition.
2.Charging pile with multiple protection function, input and output with double safety protection measures, charging real-time monitoring of the connection of the charging cable status, connection abnormalities immediately terminate the charge to ensure that the charging process is safe for people and vehicles.
3.User interface and display can be used to control the functions, so that customers can easily complete the charging process.
4.external access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.
Charge Pile digital signage key features:
1. adopts intelligent system, unattended, convenient and fast, safe and reliable
2. 49 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
3. Latest Android OS network version.Quad cores CPU 8Gb memory.support VGA input, 3G(optional). Remote real-time control can be achieved through LAN, WIFI and 3G network, and the distribution of multimedia files and information can be updated
4 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
5 . Frame(fit with single side screen) can be customized exactly same as client provided.
6. Compatible with all electric car models in the market, use the new national standard to safely charge
7. Equipped with single/double gun, quick charge/slow charge, etc
8. Plane structure, ergonomic design, delicate and beautiful, streamline shape, fine workmanship
9. Unlimited video advertisement, dynamic poster, lamp box poster, picture poster and flow subtitle, screen size resolution customization
Outdoor Charge Pile digital signage Parameters
| LCD parameters |
Model No. |
DDW-AD4901S |
| display |
49" LED |
| Contrast Ratio |
16:9 |
| machine size |
1130*684*55 |
| Display area |
1040x585 |
| Maximum resolution |
1920x1080 |
| Pixel Pitch(mm) |
0.1805×0.5415 mm |
| Display color |
1.073G(10bits/color) |
| Life(hrs) |
>60,000(hrs) |
| average brightness |
1500-2500cd/m*m |
| contrast |
4000:1 |
| Viewing angle |
H178°/V178° |
| Power supply |
AC100~240V 50 /60 HZ |
| Maximum power consumption |
3600W |
| Standby power consumption |
<5W |
| Working temperature |
0－ 40 ℃ |
| Storage temperature |
-40℃ — 50℃ |
| Installation |
flood-standing, wall mounted or customized |
| IP65 waterproof case |
Using 1.5mm galvanized steel |
| Surface spray powder (anti-corrosion, anti-rust) |
| Outdoor anticorrosive over 7 years |
| AR anti-reflective glass 3 + 3mm plastic folder |
| Display screen glass |
Light transmittance 97% |
| Reflectivity is less than 3% |
| Explosion-proof, waterproof, fireproof |
| UV protection 99% |
| Display screen |
Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 |
| High brightness 1500-2000 cd/㎡ |
| Full hd 1920 x1080 |
| Industrial power supply |
| automatically adjust the brightness |
| Electronic control system |
Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc. |
| Cooling system |
Intelligent heating and air-cooling system |
| meet the environment of -20℃ — 55 ℃ |
| LCD display is not blackening |
| Patented cooling system ensures that the LCD screen without blackening in direct sunlight |
| Product assembly and aging test |
IP65 waterproof test |
| High and low temperature test |
| Simulated solar radiation test |
| Aging test |
| Packaging |
Wooden packaging , sea/air/express(transportation standards) |
