Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD6501SNOC
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20-30working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 300 set per month
Application: |
Outdoor |
Panel Brand: |
Samsung LG |
Storage Temperature: |
-40℃ — 50℃ |
Average Brightness: |
1500-2500cd/m*m |
Maximum Resolution: |
1920x1080 |
Maximum Power Consumption: |
3600W |
Input Voltage: |
AC 110V-240V |
Application: |
Outdoor |
Panel Brand: |
Samsung LG |
Storage Temperature: |
-40℃ — 50℃ |
Average Brightness: |
1500-2500cd/m*m |
Maximum Resolution: |
1920x1080 |
Maximum Power Consumption: |
3600W |
Input Voltage: |
AC 110V-240V |

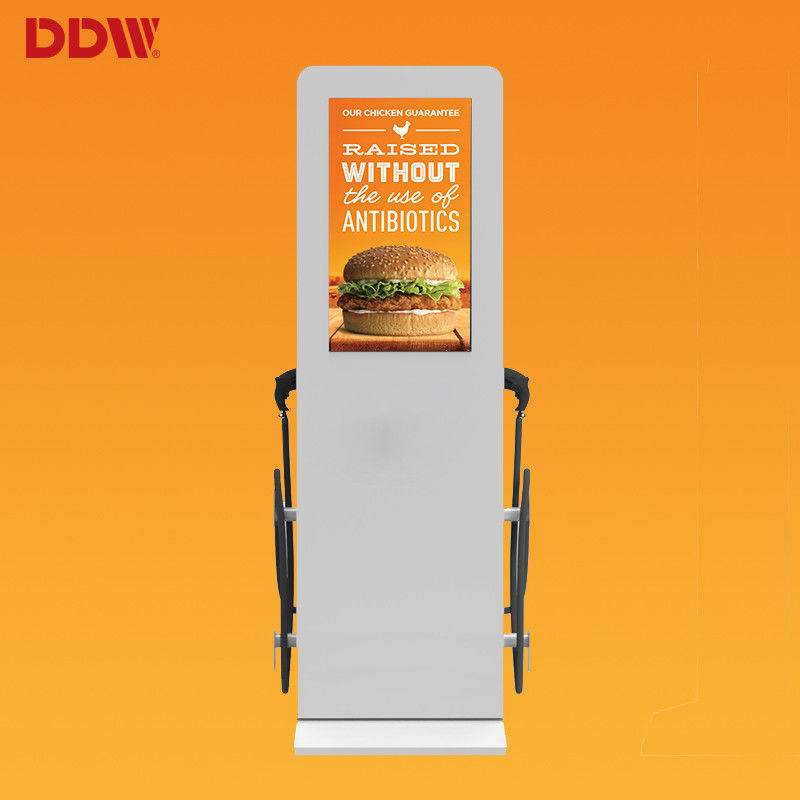

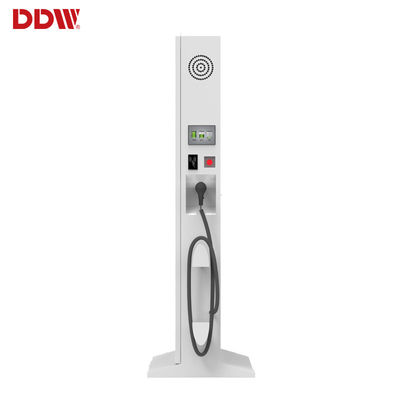

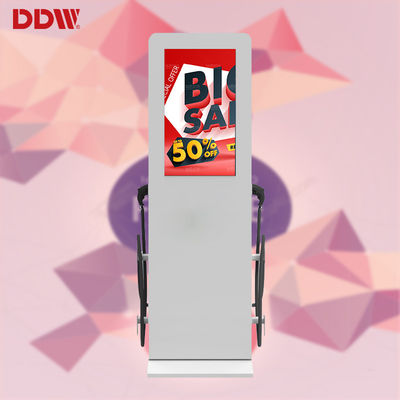

65 inch LCD FHD Customized Self-Service Kiosk Bus/ Car Charging Station DDW-AD6501S
1,Any of yoru related questions will be answered directly by our professional well-trained sales service in fluent English within 12hours.
2,OEM ODM buyer's label,LOGO print,color package options and more customized requirements are welcome.
3,Special discount for volume order and protection of marketing area available to our distributors.
1.This product can be composed of human-computer interactive touch screen, 43-inch LCD screen, RF reader, energy measurement module, communication module, charging interface, control module and pile composition.
2.Charging pile with multiple protection function, input and output with double safety protection measures, charging real-time monitoring of the connection of the charging cable status, connection abnormalities immediately terminate the charge to ensure that the charging process is safe for people and vehicles.
3.User interface and display can be used to control the functions, so that customers can easily complete the charging process.
4.external access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.
1 .65 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC 220V/DC
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided
Outdoor Charge Pile digital signage Parameters
LCD parameters |
Model No. |
DDW-AD6501SNOC |
display |
65" LED |
|
Contrast Ratio |
16:9 |
|
machine size |
1130*684*55 |
|
Display area |
1040x585 |
|
Maximum resolution |
1920x1080 |
|
Pixel Pitch(mm) |
0.1805×0.5415 mm |
|
Display color |
1.073G(10bits/color) |
|
Life(hrs) |
>60,000(hrs) |
|
average brightness |
1500-2500cd/m*m |
|
contrast |
4000:1 |
|
Viewing angle |
H178°/V178° |
|
Power supply |
AC100~240V 50 /60 HZ |
|
Maximum power consumption |
3600W |
|
Standby power consumption |
<5W |
|
Working temperature |
0- 40 ℃ |
|
Storage temperature |
-40℃ — 50℃ |
|
Installation |
flood-standing, wall mounted or customized |
|
IP65 waterproof case |
Using 1.5mm galvanized steel |
|
Surface spray powder (anti-corrosion, anti-rust) |
||
Outdoor anticorrosive over 7 years |
||
AR anti-reflective glass 3 + 3mm plastic folder |
||
Display screen glass |
Light transmittance 97% |
|
Reflectivity is less than 3% |
||
Explosion-proof, waterproof, fireproof |
||
UV protection 99% |
||
Display screen |
Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 |
|
High brightness 1500-2000 cd/㎡ |
||
Full hd 1920 x1080 |
||
Industrial power supply |
||
automatically adjust the brightness |
||
Electronic control system |
Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc. |
|
Cooling system |
Intelligent heating and air-cooling system |
|
meet the environment of -20℃ — 55 ℃ |
||
LCD display is not blackening |
||
Patented cooling system ensures that the LCD screen without blackening in direct sunlight |
||
Product assembly and aging test |
IP65 waterproof test |
|
High and low temperature test |
||
Simulated solar radiation test |
||
Aging test |
||
Packaging |
Wooden packaging , sea/air/express(transportation standards) |
