IR Touch Charging Floor Standing Digital Signage , 1080P Electric Car Smart Charge Pile Advertising Display DDW-AD5501S

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC , IP65
Model Number: DDW-AD5501S
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton and Full wood box packing
Delivery Time: 20-30working days upon payment
Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
Supply Ability: 300 set per month
Detail Information
Application: Outdoor Panel Brand: Samsung LG
Storage Temperature: -40℃ — 50℃ Average Brightness: 1500-2500cd/m*m
Maximum Resolution: 1920x1080 Maximum Power Consumption: 3600W
Input Voltage: AC 110V-240V
High Light:

electric vehicle charging pile


electric vehicle charging stations

Product Description

55 inch Outdoor IR touch floor stand charging digital signage for electric car Full HD Smart Charge Pile advertising display DDW-AD5501S

Main Application:

  • Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
  • Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar,
  • Beauty salon, Golf course, etc.
  • Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
  • Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,
  • Hotel, Restaurant, travel agency, Chemist's shop, etc.
  • Public Service: Hospital, School, Telecom, Post office, etc.
  • Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model ouses,Sales Office,the entrance of elevator,etc

55 inch charge Pile digital signage functions:

1.This product can be composed of human-computer interactive touch screen, 55-inch LCD screen, RF reader, energy measurement module, communication module, charging interface, control module and pile composition.

2.Charging pile with multiple protection function, input and output with double safety protection measures, charging real-time monitoring of the connection of the charging cable status, connection abnormalities immediately terminate the charge to ensure that the charging process is safe for people and vehicles.

3.User interface and display can be used to control the functions, so that customers can easily complete the charging process.


4.external access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.


Charge Pile digital signage key features:
1 . 55 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC 220V/DC
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided

Outdoor Charge Pile digital signage Parameters

LCD parameters Model No. DDW-AD5501SNOC
display 55" LED
Contrast Ratio 16:9
Maximum resolution 1920x1080
Display color 1.073G(10bits/color)
Life(hrs) >60,000(hrs)
average brightness 1500-2500cd/m*m
contrast 4000:1
Viewing angle H178°/V178°
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 3600W
Standby power consumption <5W
Working temperature 0- 40 ℃
Storage temperature -40℃ — 50℃
Installation flood-standing, wall mounted or customized
IP65 waterproof case Using 1.5mm galvanized steel
Surface spray powder (anti-corrosion, anti-rust)
Outdoor anticorrosive over 7 years
AR anti-reflective glass 3 + 3mm plastic folder
Display screen glass Light transmittance 97%
Reflectivity is less than 3%
Explosion-proof, waterproof, fireproof
UV protection 99%
Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
High brightness 1500-2000 cd/㎡
Full hd 1920 x1080
Industrial power supply
automatically adjust the brightness
Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc.
Cooling system Intelligent heating and air-cooling system
meet the environment of -20℃ — 55 ℃
LCD display is not blackening
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
Product assembly and aging test IP65 waterproof test
High and low temperature test
Simulated solar radiation test
Aging test
Packaging Wooden packaging , sea/air/express(transportation standards)

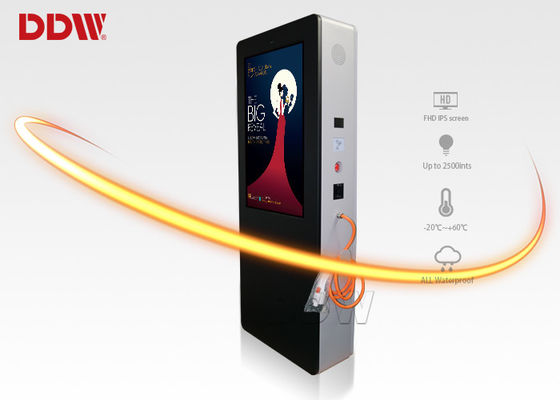

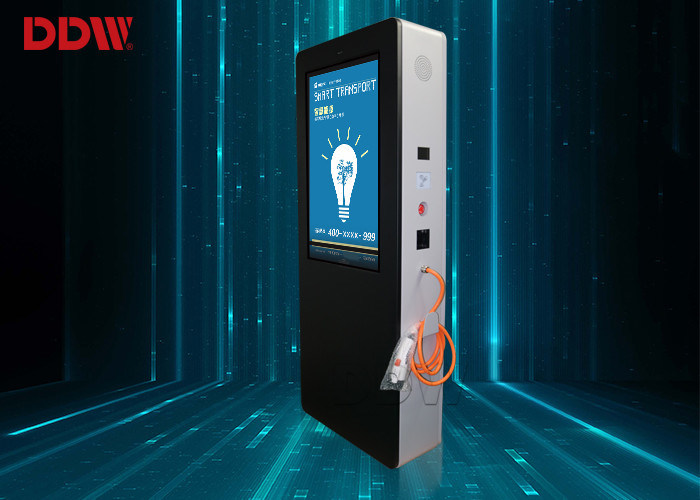

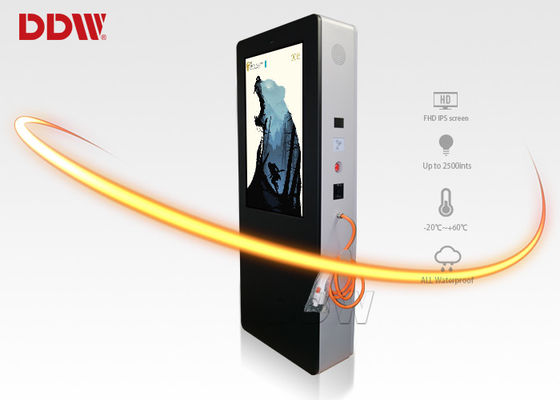

IR Touch Charging Floor Standing Digital Signage , 1080P Electric Car Smart Charge Pile Advertising Display DDW-AD5501S 0IR Touch Charging Floor Standing Digital Signage , 1080P Electric Car Smart Charge Pile Advertising Display DDW-AD5501S 1IR Touch Charging Floor Standing Digital Signage , 1080P Electric Car Smart Charge Pile Advertising Display DDW-AD5501S 2
