Highlight:
electric vehicle charging pile
, public charging stations

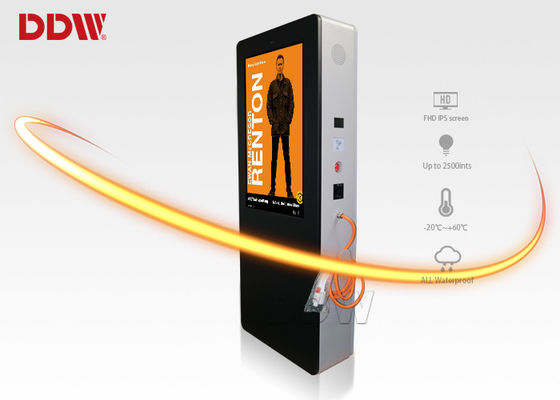

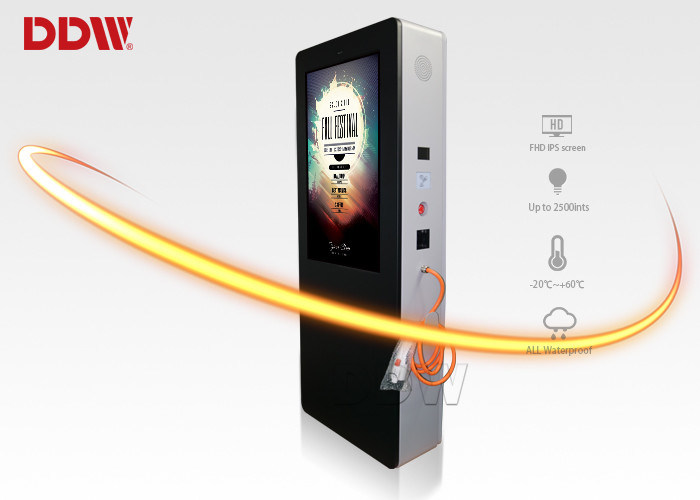

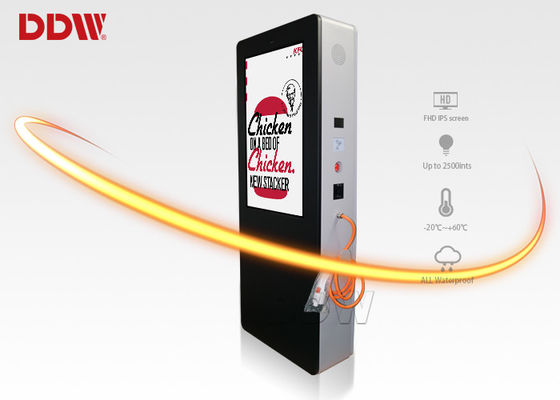

32 Inch High Brightness Kiosk Charging Station , 2500nits waterproof anti-fog Charge Pile Ad Player DDW-AD3201S
Main Application:
1. Public Places:
2. Entertainment Places:
3. Toll Station
4. Business Organizations:
5. Public Service:
6. Real Estate&Property:
7.The Parking Lot
32 inch charge Pile digital signage functions:
1.This product can be composed of human-computer interactive touch screen, 32-inch LCD screen, RF reader, energy measurement module, communication module, charging interface, control module and pile composition.
2.Charging pile with multiple protection function, input and output with double safety protection measures, charging real-time monitoring of the connection of the charging cable status, connection abnormalities immediately terminate the charge to ensure that the charging process is safe for people and vehicles.
3.User interface and display can be used to control the functions, so that customers can easily complete the charging process.
4.external access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.
Charge Pile digital signage key features:
1.IP65 design for outdoor application.
2. High brightness up to 2000cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Fron tempered glass and anti-glare glass
5. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.
6. Anti-dust, anti-vandal, anti-theft.
7. Customized design for you without additional cost.
8. Screen sizes available 19-82inch
9. Wall mount, roof hanging and free standing(fixed on ground) all available.
10. Security electric circuit design
11. Build in power timer
Outdoor Charge Pile digital signage Parameters
|
LCD parameters
|
Model No.
|
DDW-AD3201SNOC
|
|
display
|
32" LED
|
|
Contrast Ratio
|
16:9
|
|
machine size
|
732.4*427.2*55
|
|
Display area
|
698.4*392.85
|
|
Maximum resolution
|
1920x1080
|
|
Pixel Pitch(mm)
|
0.1805×0.5415 mm
|
|
Display color
|
1.073G(10bits/color)
|
|
Life(hrs)
|
>60,000(hrs)
|
|
average brightness
|
1500-2500cd/m*m
|
|
contrast
|
4000:1
|
|
Viewing angle
|
H178°/V178°
|
|
Power supply
|
AC100~240V 50 /60 HZ
|
|
Maximum power consumption
|
3600W
|
|
Standby power consumption
|
<5W
|
|
Working temperature
|
0－ 40 ℃
|
|
Storage temperature
|
-40℃ — 50℃
|
|
Installation
|
flood-standing, wall mounted or customized
|
|
IP65 waterproof case
|
Using 1.5mm galvanized steel
|
|
Surface spray powder (anti-corrosion, anti-rust)
|
|
Outdoor anticorrosive over 7 years
|
|
AR anti-reflective glass 3 + 3mm plastic folder
|
|
Display screen glass
|
Light transmittance 97%
|
|
Reflectivity is less than 3%
|
|
Explosion-proof, waterproof, fireproof
|
|
UV protection 99%
|
|
Display screen
|
Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
|
|
High brightness 1500-2000 cd/㎡
|
|
Full hd 1920 x1080
|
|
Industrial power supply
|
|
automatically adjust the brightness
|
|
Electronic control system
|
Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc.
|
|
Cooling system
|
Intelligent heating and air-cooling system
|
|
meet the environment of -20℃ — 55 ℃
|
|
LCD display is not blackening
|
|
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
|
|
Product assembly and aging test
|
IP65 waterproof test
|
|
High and low temperature test
|
|
Simulated solar radiation test
|
|
Aging test
|
|
Packaging
|
Wooden packaging , sea/air/express(transportation standards)
|
