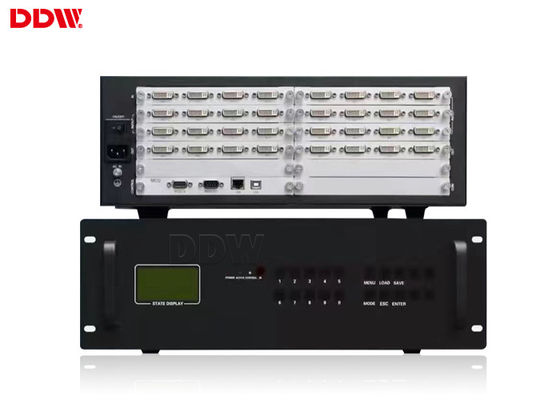

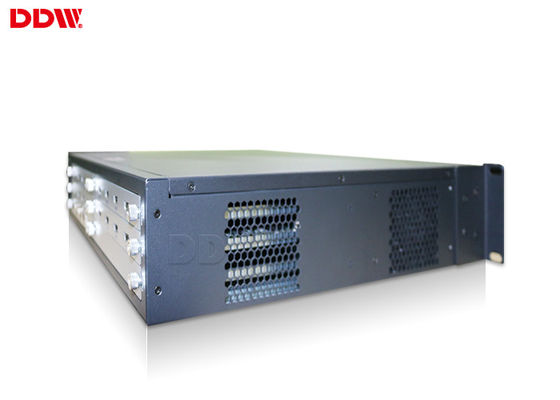

Large Screen Image Ip Video Wall Controller 10 Inch Vertical Display Pluggable

Name: Large Screen Image Ip Video Wall Controller 10 Inch Vertical Display Pluggable
Brand: DDW
SKU: DDW-VPH1012
Rating: 4.9 (191 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC

Model Number: DDW-VPH1012

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                lcd video wall controller, video wall processor


Video Wall Controller Interfaces Type::	Pluggable	Video Wall Controller Color Quality:	32bit
Frame Material::	Aluminum Brushed	Maximum Output Numbers:	128
Control Method:	RS232,IP	Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Standard Packing:	Double Layer Carton Box Pack	Weight:	5-100kg

Video Wall Controller Interfaces Type::	Pluggable
Video Wall Controller Color Quality:	32bit
Frame Material::	Aluminum Brushed
Maximum Output Numbers:	128
Control Method:	RS232,IP
Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Standard Packing:	Double Layer Carton Box Pack
Weight:	5-100kg

Product Description

10 inch vertical display support large-screen image ip video wall controller

It has following key features:
1 . Support large-screen image freeze

2 . Support open-window effects processing

3 . Flexibility to increase the input/output board
4 . Real time image display, no dropped frames

5 . Full hardware configuration without operating system

6 . Support partial input and output cards with mixed interpolation
7 . Redundant power supply design, thermostatically controlled fan
8 . Input/output card supports hot-swappable, plug-and-play functionality
9 . Support display at arbitrary position, at any size and any superimposed
10 . High-speed bus parallel processing technology, high-bandwidth uncompressed processing
11 . Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image

DDW Lcd video wall controller is one of professional modularized and hardware Lcd video wall processor which supports ,DVI,VGA,AV,YPBPR, each channel support 1920x1200 resolution signal inputs and outputs,RS232 and IP control method.

Parameters:

Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution	Up to 1920x1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640 x 480/60HZ—1920 x1200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female
