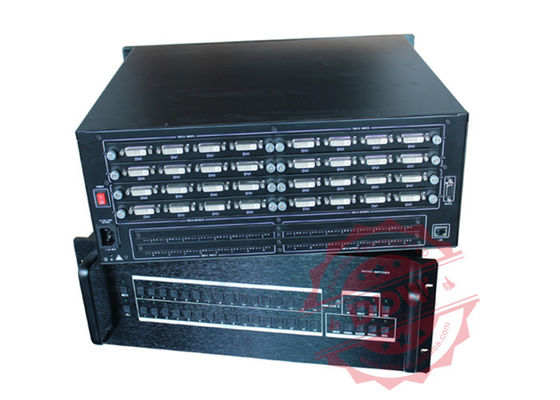

15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515

15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515

    • 15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515
    • 15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515
  • 15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH1515

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Max PIP Per Screen:: 1,4,16,customization IPad/iPhone Remote Control: Support Customized APP Remote Control
    Maximum Input Numbers:: 128 Maximum Output Numbers:: 128
    Control Method: RS232,IP Input Output Signal Sources:: HDMI,DVI,VGA,AV,YPBPR,IP
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

    15 input 15 output Curved Video Wall Video Wall Scaler Support large - screen image freeze DDW-VPH1515

    key features:

    1, Compact and expandable inputs and outputs

    40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.

    2, Power-saving design

    Build-in power-saving graphics board and parts reduction effect by one unit structure design.

    3, Easy Replacement

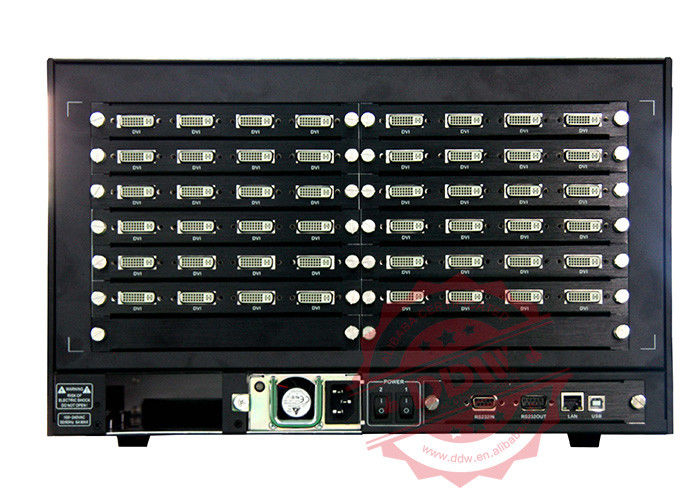

    Rear detachable input-output board introduction and expansion can be easily.

    User can replace the input and output board with a single unit without removing the entire chassis from the rack.

    4, 2 split ~ 4 split display function (one single screen)

    One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.

    5, Video Wall configuration support

    iMAX-5000 series , which has built-in the high resolution of digital image processor , supports both of the matrix and mosaic video wall configuration.

    6, Seamless Switching Processor Inside

    No joints , no black screen , smooth video switching processor inside.

    7, PIP/POP Function

    Support picture in picture (PIP) picture outside picture (POP) functions .

    Single screen can be superimposed 4 contents on the screen. You can also size and position or cross the border at any other screen.

    8, Partial Zooming Function

    Support in a single screen zoom function. You can zoom view an image from any of the signal source in a particular area.

    9, User friendly graphical user interface

    Just use the mouse device , click on the video content which you want to play , then drag and drop the displayed size and position.

    10, Multi-Input format switching support

    VGA,DVI,CVBS,HDMI and SDI such as multi-input format support.

    11, Looping Playback

    It can be stored more than 100 sets of display mode.

    Support looping playback and control switching via RS232 network or TCP/IP mode.

    12, Operation System

    Support Microsoft Windows , Linux , Sun , and Mac operation systems.

    13, Power off memory function

    When the system power outage then restoration again , it will return to the state before the power failure.

    14, Plug & Play function

    Pure external hardware design , free to install any software or drivers.

    15, Input status identified

    Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.



    Products application:

    1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

    2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

    3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

    4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

    5. Public Service: Hospital, School, Telecom, Post office, etc.

    6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.





    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365 x 7 x 24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640 x 480/60HZ—1920 x1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female

    15 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH151515 Input 15 Output Curved Multi Display Processor Large Screen Image Freeze DDW-VPH1515
