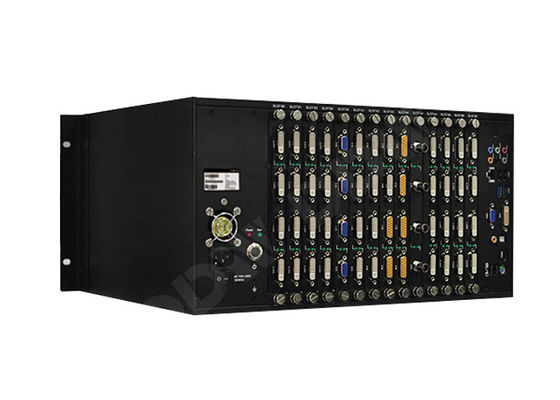

Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP

Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP

    • Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP
    • Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP
    • Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP
    • Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP
  • Multimedia Video Wall Processor Full Hardware Configuration DDW-VPH1415 Support APP

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH1415

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Solid Display: Support Each Screen Input With Separate Signal IPad/iPhone Remote Control: Support Customized APP Remote Control
    Scene Management: Support Multiple Scenes Management/recall Function Control Method: RS232,IP
    Rich Resolution: Support 1080P,1080I,720P,480P &multiple Resolution Inputs Frame Material: Aluminum Brushed
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

    Support customized APP remote Multimedia display video processor for video wall Full hardware configuration DDW-VPH1415



    Support HDMI,DVI,VGA,AV,YPBPR and IP,1080P higher resolution
    Video Wall Processor​ Key Features:
    1. Full hardware configuration without operating system
    2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
    3. Real time image display, no dropped frames
    4. Support display at arbitrary position, at any size and any superimposed
    5. Support open-window effects processing
    6. Support large-screen image freeze
    7. Support 7 x 24 uninterrupted and stable working
    8. Flexibility to increase the input/output board
    9. Support partial input and output cards with mixed interpolation
    10. Input/output card supports hot-swappable, plug-and-play functionality
    11. Output resolution up to 1920 x 1200
    12. Rich BNC, VGA, DVI, HDMI, SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
    13. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
    14. Redundant power supply design, thermostatically controlled fan
    15. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments



    Some of the Video Wall Controller Parameters:

    Vertical/Horizontal Display Support
    Combine Display Support combine any horizontal &vertical numbers of screens and show display
    Support combine all screens together to show 1image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
    iPad/iPhone remote control Support customized APP remote control
    Signal preview function Support Audit/Preview signal before output to windows/video wall screens
    Scene management Support Multiple scenes management/recall function
    Support scenes cycle broadcast Support scenes cycle broadcast function
    Multiple Interfaces Support multiple DVI,HDMI,VGA,AV inputss &multiple signal outputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
    Standard Packing Double layer carton box pack
    Weight 5-100kg
    6kg-110kg



    Detail Parameters:

    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365x7x24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640*480/60HZ—1920*1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female
