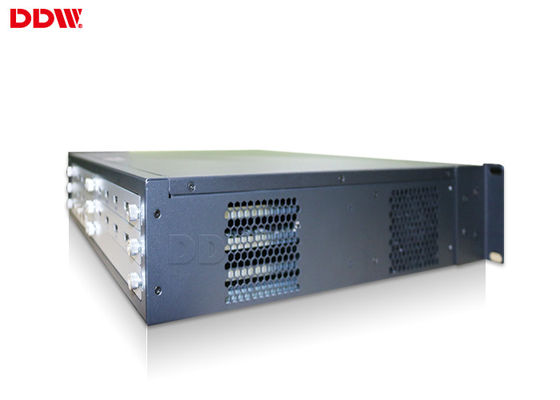

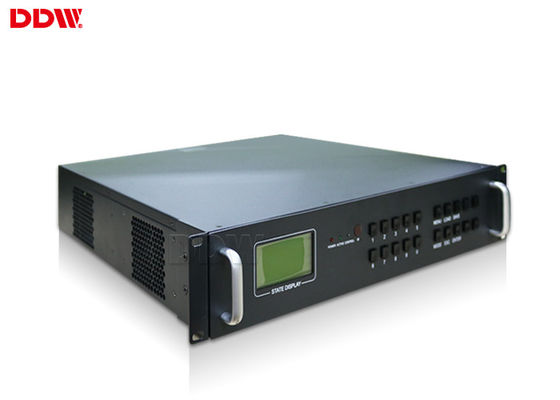

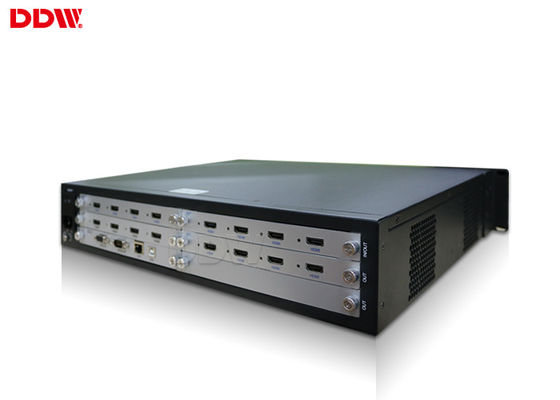

Hight Resolution Android Video Wall Multi Remote Controller ISO9001 Approval
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-VPH0303 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | dual layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance, D/A, D/P |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Solid Display:: | Support Each Screen Input With Separate Signal | Maximum Output Numbers: | 144 |
|---|---|---|---|
| Maximum Input Numbers: | 144 | Max PIP Per Screen:: | 1,4,16,customization |
| Output Resolution: | 1920x1080 | Multiple Interfaces: | Support Multiple DVI,,VGA,AV Inputss &multiple Signal Outputs |
| Weight:: | 5-100kg | Standard Packing:: | Double Layer Carton Box Pack |
| Highlight: | lcd video wall controller,video wall processor |
||
Product Description
Hight resolution android video wall controller multi remote controller
Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Some of the Video Wall Controller Parameters:
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| iPad/iPhone remote control | Support customized APP remote control |
| Signal preview function | Support Audit/Preview signal before output to windows/video wall screens |
| Scene management | Support Multiple scenes management/recall function |
| Support scenes cycle broadcast | Support scenes cycle broadcast function |
| Multiple Interfaces | Support multiple DVI,,VGA,AV inputss &multiple signal outputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
| Standard Packing | Double layer carton box pack |
| Weight | 5-100kg |
| 6kg-110kg |
| Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920x1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365x7x24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
Want to Know more details about this product
