Home > products > Control Room Video Wall > 700nits slim bezel monitor Surveillance video wall 8Bit 16M color 16 : 9 Aspect Ratio DDW-LW550DUN-THA3

700nits slim bezel monitor Surveillance video wall 8Bit 16M color 16 : 9 Aspect Ratio DDW-LW550DUN-THA3

Name: 700nits slim bezel monitor Surveillance video wall 8Bit 16M color 16 : 9 Aspect Ratio DDW-LW550DUN-THA3
Brand: DDW
SKU: DDW-LW550DUN-THA3
Rating: 5 (109 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550DUN-THA3

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                control room displays, samsung commercial displays


Panel Size:	55inch	Resolution:	1920 X 1080
Bezel Width:	1.8mm	Color:	8Bit , 16M
Brightness:	700nits	Surface:	Anti-glare
Backlight:	LED	Control Method:	RS232 Control
Response Time:	5ms	Input Voltage:	AC 110-240v
Signal Support:	DVI//VGA/AV/YPBPR	Working Time Capacity:	Working Time Capacity 7x24hours

Panel Size:	55inch
Resolution:	1920 X 1080
Bezel Width:	1.8mm
Color:	8Bit , 16M
Brightness:	700nits
Surface:	Anti-glare
Backlight:	LED
Control Method:	RS232 Control
Response Time:	5ms
Input Voltage:	AC 110-240v
Signal Support:	DVI//VGA/AV/YPBPR
Working Time Capacity:	Working Time Capacity 7x24hours

Product Description

700nits slim bezel monitor control room video wall 8Bit 16M color 16 : 9 Aspect Ratio DDW-LW550DUN-THA3

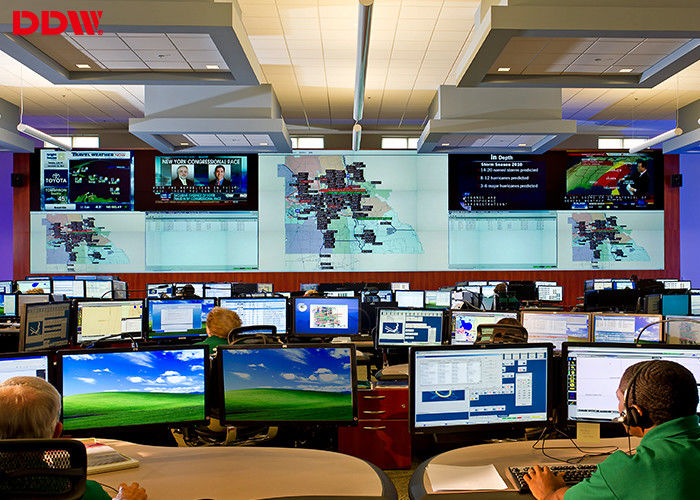

DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.

Key features

Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
700nits brightness, 3500:1 contrast;
FHD physical resolution 1920x1080;
Only 1.8mm Ultra narrow bezel, high quality, practical, good vision effect;
Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
HD video wall unit--- High brightness, high contrast, high gamut;
Flexible structure design ---easy installation, extensible, arbitrary combination;
Stable performance, suitable working for a long time;

Specifications

LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	55"
Pixel Pitch(WxH)	0.630x0.630mm
Active Display Area(WxH)	1209.6x680.4mm
Panel Dimension(WxHxD)	1211.4x682.2x53.3mm
Total Bezel Width	1.8mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	WLED
Luminance(nits)	700cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing
DVI-I DUAL LINK	1
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	1
ISP IN	1
IR IN	1
CODING BUTTON	1
AC IN	AC100-240V
Color System Support	PAL/NTSC/SECAM
Control Type	IR Remote &Software Control
Menu Language	English/Chinese(Multiple Language can be customized)
