Seamless Samsung video wall screens 8Bit color HD Safety surveillance videowall DDW-DV46FHM-NV0

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV46FHM-NV0
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Panel Size: 46inch Resolution: 1920 X 1080
Bezel Width: 3.5mm Color: 8Bit , 16M
Brightness: 500nits Surface: Anti-glare
Backlight: LED Control Method: RS232 Control
Signal Support: DVI//VGA/AV/YPBPR Working Time Capacity: 7x24hours
High Light:

control room displays

,

hd video wall


Product Description

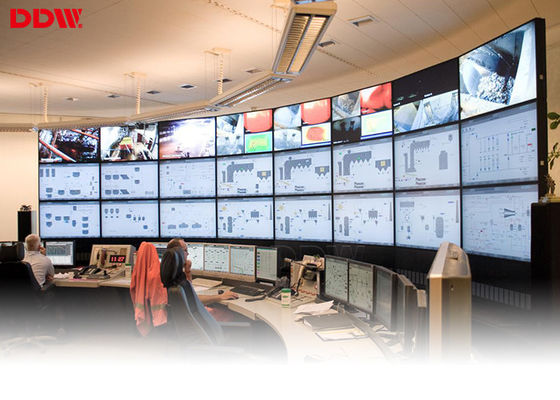

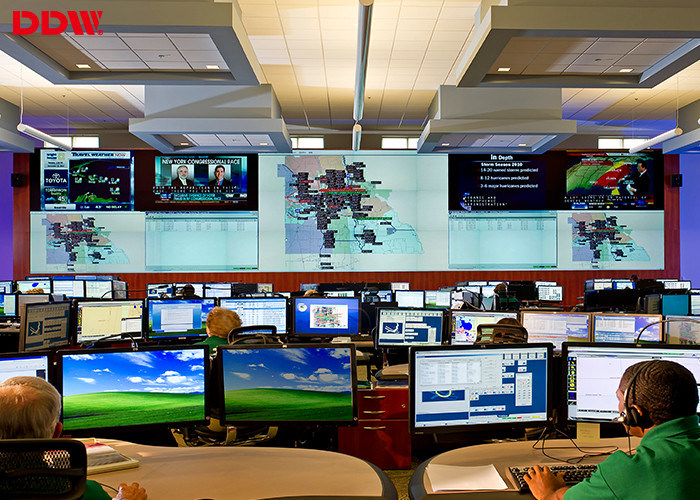

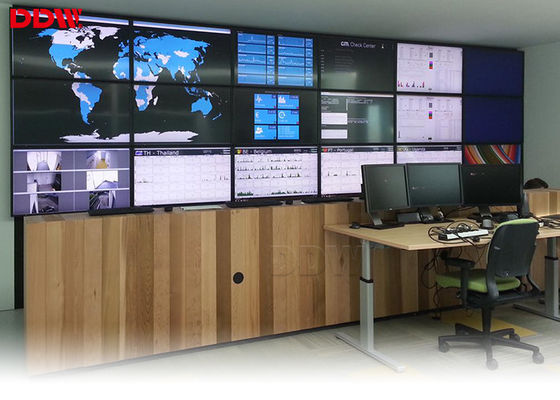

Seamless Samsung video wall screens 8Bit color HD Safety surveillance videowall DDW-DV46FHM-NV0



46" lcd video wall features:

  • Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
  • 500nits brightness, 3500:1 contrast;
  • FHD physical resolution 1920x1080;
  • Only 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
  • Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
  • HD video wall unit--- High brightness, high contrast, high gamut;
  • Flexible structure design ---easy installation, extensible, arbitrary combination;
  • Stable performance, suitable working for a long time;

Specifications

46 inch Samsung video wall specifications
LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 46" 16:9
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System LED
Luminance(nits) 500cd/sqm
Contrast 3500:1
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.53025x0.53025mm
Active Display Area(WxH) 1018.08×572.67 mm
Panel Dimension(WxHxD) 1213.5x684.3x59mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 220W
Power Supply AC100~240V 50/60Hz
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
DVI-I DUAL LINK 1
1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
  Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
