LCD screen Dual video wall controller Higher resolution APP remote control DDW-VPH0508

Name: LCD screen Dual video wall controller Higher resolution APP remote control DDW-VPH0508
Brand: DDW
SKU: DDW-VPH0508
Rating: 4.5 (114 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC

Model Number: DDW-VPH0508

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                lcd video wall controller, video wall processor


Solid Display:	Support Each Screen Input With Separate Signal	IPad/iPhone Remote Control:	Support Customized APP Remote Control
Scene Management:	Support Multiple Scenes Management/recall Function	Support Scenes Cycle Broadcast:	Support Scenes Cycle Broadcast Function
Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs	Frame Material:	Aluminum Brushed
Standard Packing:	Double Layer Carton Box Pack	Weight:	5-100kg

Solid Display:	Support Each Screen Input With Separate Signal
IPad/iPhone Remote Control:	Support Customized APP Remote Control
Scene Management:	Support Multiple Scenes Management/recall Function
Support Scenes Cycle Broadcast:	Support Scenes Cycle Broadcast Function
Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Frame Material:	Aluminum Brushed
Standard Packing:	Double Layer Carton Box Pack
Weight:	5-100kg

Product Description

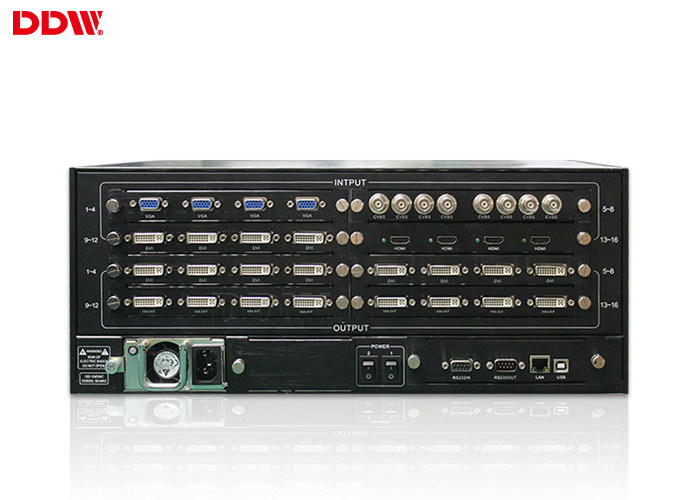

LCD screen Dual video wall controller Higher resolution APP remote control DDW-VPH0508

DDW daisy chain video wall controller can be compatible with LCD video wall screen and accessories to combinate lcd video wall

main functions:

1. Support combine any horizental &vertical numbers of screens and show display
2 . Support combine all screens together to show 1image
3. Support each screen input with separate signal
4. Support open one window for each screen, each window can be zoomed &roaming internal freely
5. Support DVI,,VGA,AV &multiple signal inputs
6. Support 1080P,1080I,720P,480P &multiple resolution inputs

Specifications:

Functions
Vertical/Horizontal Display	Support
Combine Display	Support combine any horizental &vertical numbers of screens and show display
Combine Display	Support combine all screens together to show 1image
Solid Display	Support each screen input with separate signal
PIP/Zoom/Roaming	Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces	Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolution inputs
Dimension(WxHxD)	318.4x332x56mm
Appearance
Standard Packing	Full wood box pack
Weight	5kg \| 66.1lbs (net)
Weight	6kg \| 88.2lbs (gross)
Quality Standard	ISO9001,CCC,RoHS,FCC

Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution	Up to 1920x1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640 x 480/60HZ—1920 x1200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female
